Name: Signotec Signature Pad Zeta With LCD-Backlight - ST-ZBERT-3-U100
Brand: signotec
Price: 949 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 18 visitor right now

Sku: ST-ZBERT-3-U100

Product type: signotec Signature Pads

Vendor: signotec

Signotec Signature Pad Zeta With LCD-Backlight - ST-BE105-2-U100

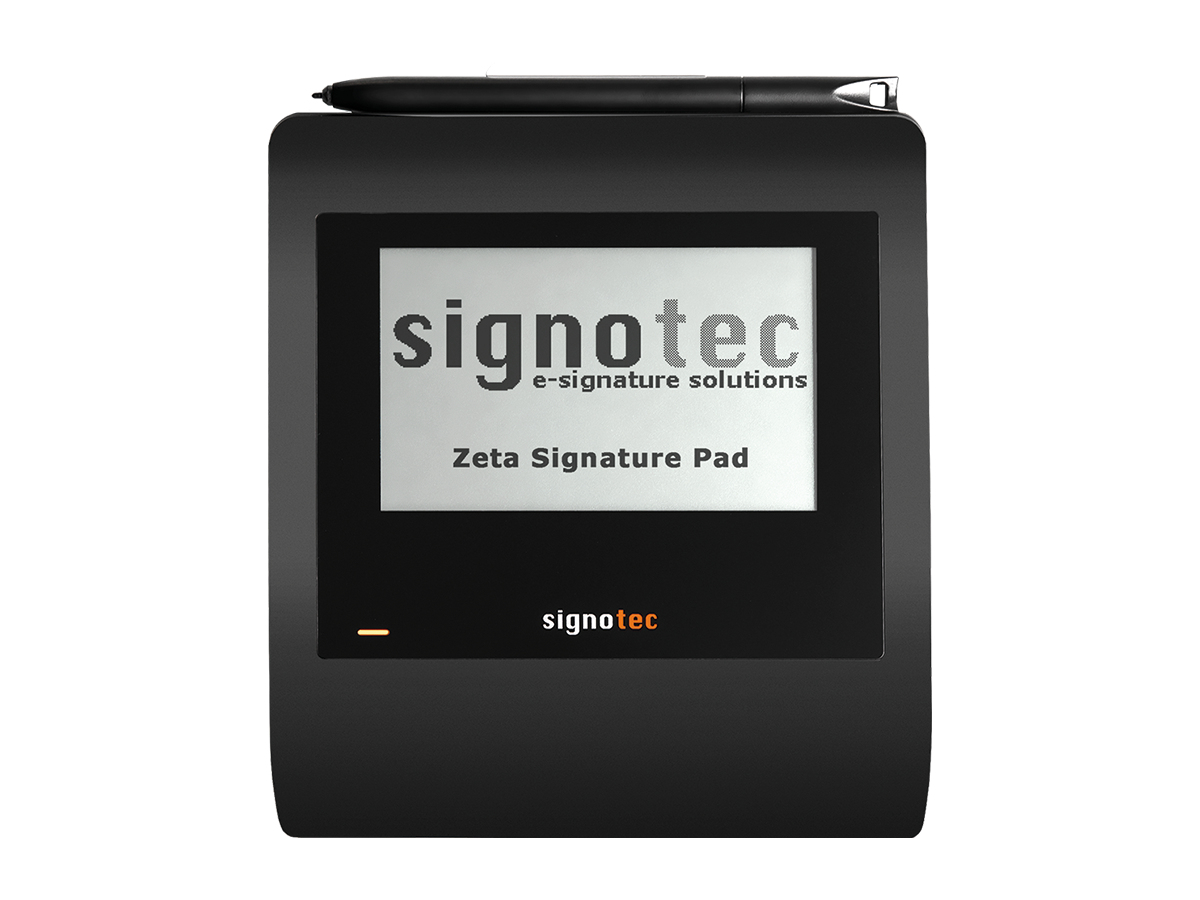

Signature Pad signotec Zeta

The signotec Zeta is an unbeatable combination of the two signature pads signotec Sigma and signotec Gamma. During development, explicit attention was paid to perfectly combining the advantages of both models and technologies: The German Design Award-winning design of the signotec Gamma and the robustness of the ER technology meet an affordable monochrome display. Two different pen holders ensure the best ergonomics for the respective application.

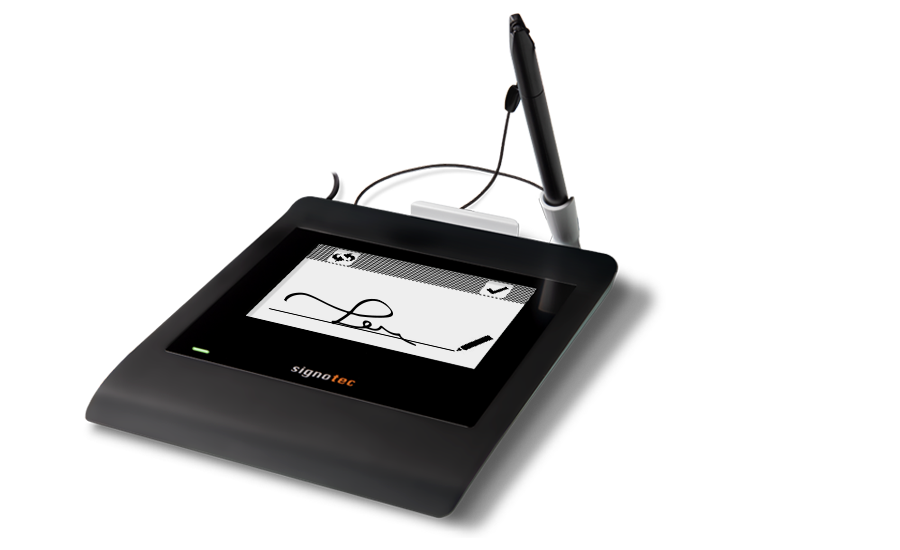

The signotec Zeta has an approx. 4.5" (11.4 cm) monochrome display and the robust ER technology. The sensor reacts exclusively to the battery-free special pen and not only records movements with 2,048 pressure levels and up to 500 Hz sampling rate, but also captures the movements of the pen in the air. This enables a true-to-detail digitisation of the signature and a correspondingly high evidentiary value in legal proceedings. Thanks to the technical design, the signotec Zeta can offer a very long lifespan of up to 30 million signatures.

Highlights signotec Zeta

11,4 cm (4,5") Display © signotec GmbH

2.048 Pressure Stages © signotec GmbH

ERT-Sensor © signotec GmbH

RSA-Encryption © signotec GmbH

4.5" (11.4 cm) monochrome display with 320 x 200 pixel resolution
Modern ERT sensor (reacts only to the pen)
Life expectancy of approx. 30 million signatures
Batteryless special pen with exchangeable pen tip
Acquisition of 2,048 pressure stages
Transmission rate of the 4D signature data at 500 Hz
Only one USB cable for connection
Patented security for the conclusive signature of PDF documents
RSA encryption of the font characteristics in the pad
Freely configurable standby image
Individual design options and OEM production (colors and logo printing)
Powerful software for secure PDF signatures optionally available

Types of Connection:

HID-USB / WinUSB
Optional: Virtual COM-Port (FTDI)
Optional: signotec USB-Ethernet Adaptor

Technical Specifications - signotec Zeta

DISPLAY

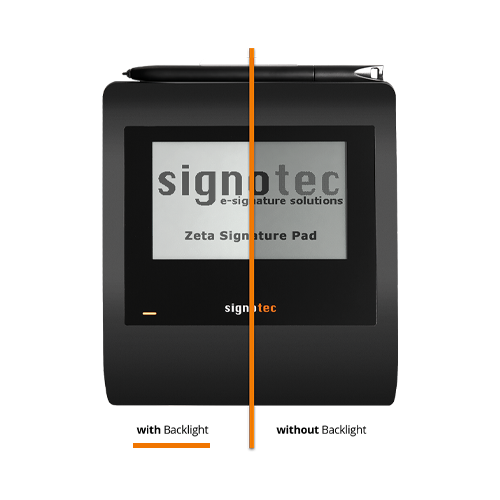

Type	11.4 cm (4,5") Mono LCD, optional with LED-backlight
Colours	Monochrome
Resolution	320 x 200 pixels ≙ 84 x 84 ppi
Scroll-Function	No

SENSOR
Type	ERT (Electromagnetic-Resonance-Technology)
Pen	batteryless special pen with changeable pen tip
Surface	particularly resistant, hardened special glass
Life expectancy	approx. 30 Million Signatures
Pressure Stages	1.024
Sample Rate	500 Hz, 4D Samples (x, y, z, t)
Active Signing Area	96 x 60 mm
Resolution	9.598 x 5.998 Pixel ≙ 2.487 x 2.499 ppi

SECURITY
Encryption	AES- and RSA-Encryption
Secure Mode	Real-time display of the signature without usable biometrics
PDF-Signature	RSA signature creation device inside the pad
Hash-Algorithms	SHA-1, SHA-256 und SHA-512
More information can be found below in the tab "Security features".

CONNECTION
Connection	USB (approx. 2.7 meters cable length)
Power Supply	USB
Network (TCP/IP)	Yes, with optional signotec USB-Ethernet-Adaptor
Terminal Server / Citrix	Yes, optional with hardware FTDI chip or signotec vCOM driver
Citrix Virtual Channel	Yes, optional with signotec Virtual Channel driver

OTHERS
Dimensions (W x D x H)	145 x 177 x 12 mm
Weight	approx. 240 g
Status LED	2-colour status LED
Slideshow	Yes, you can configure one standby image inside the pad.
Customization	Change of housing color and logo print (on request)
Warranty	2 years, optional extension up to 5 years
Software	Free tools and licensed PDF signature software optionally available
