Name: Signotec Signature Pad Gamma With Color display - ST-GERT-3-U100
Brand: signotec
Price: 1345 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 24 visitor right now

Sku: ST-GERT-3-U100

Product type: signotec Signature Pads

Vendor: signotec

Signotec Signature Pad Gamma With Color display - ST-GERT-3-U100

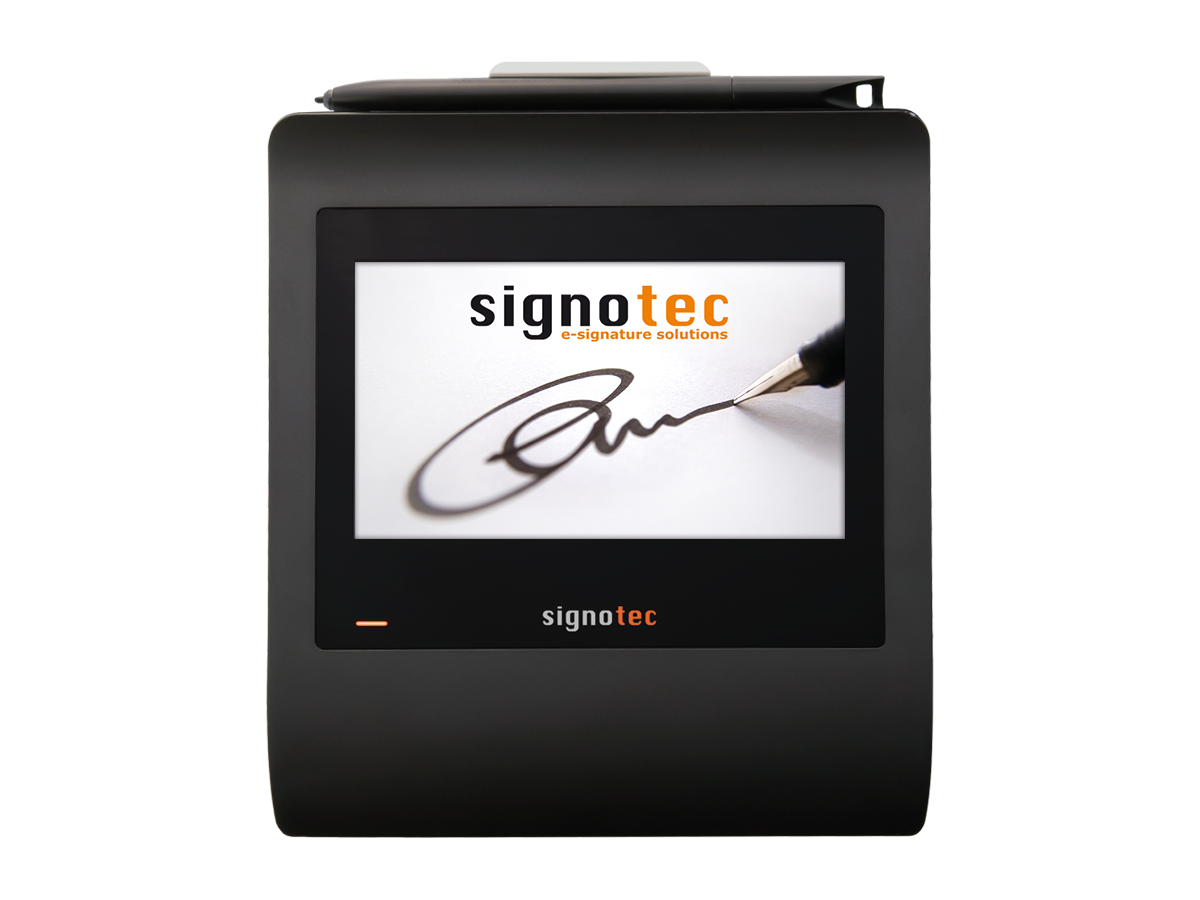

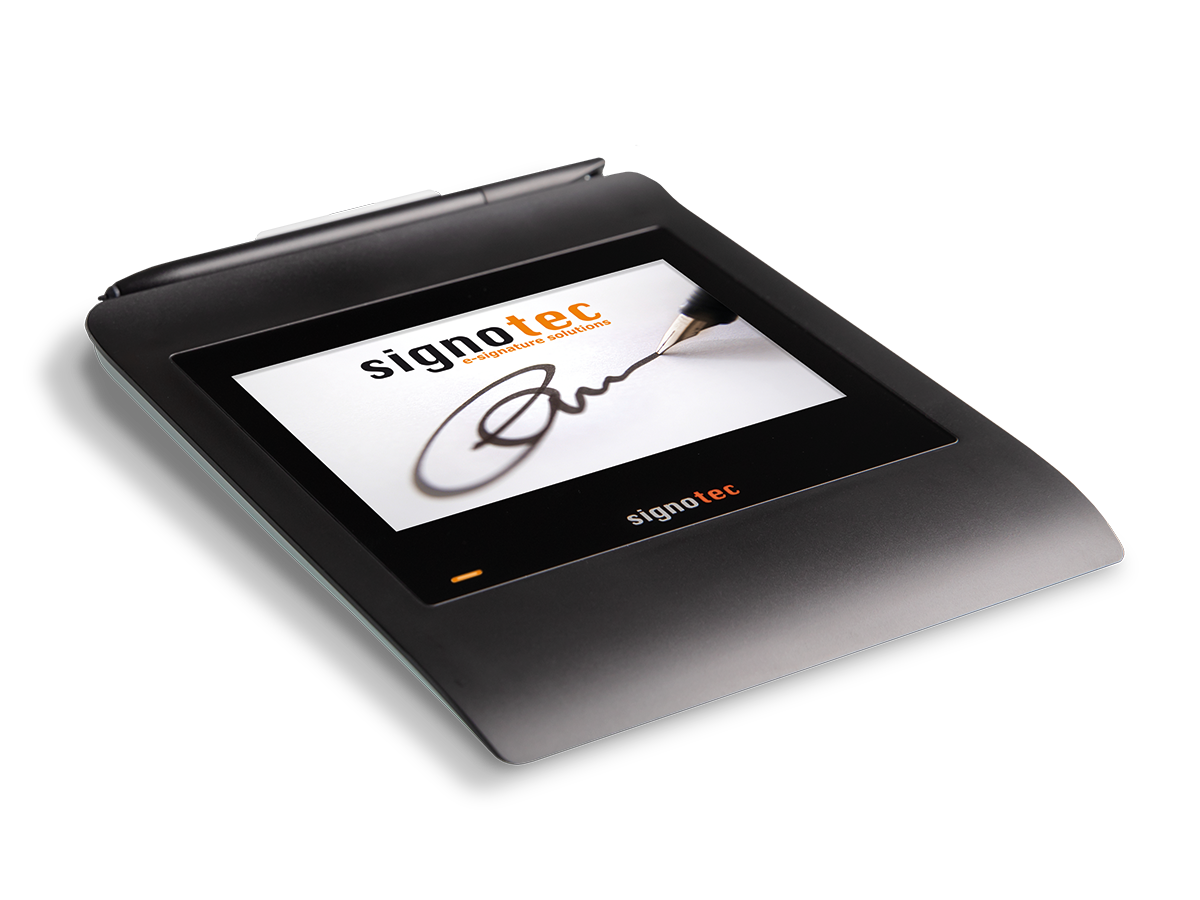

Signature Pad signotec Gamma

The signotec Gamma establishes new standards in terms of design and functionality. The flat signature pad impresses with its robust sensor surface made of hardened special glass with ER technology. The high-resolution approx. 5" (12.6 cm) colour display enables excellent presentation of graphics and texts. Two different pen holders ensure the best ergonomics for the respective application.

The included special pen and sensor guarantee superior signature capture quality - with the special feature that the movements of the pen in the air are also recorded. The battery-free pen with replaceable tip records 2,048 pressure levels and transmits the signature at a rate of up to 500 Hz. Thanks to the robust construction of the sensor, a very long lifespan of up to 30 million signatures can be achieved.

The signotec Gamma won the renowned German Design Award in the category "Excellent Product Design - Computer and Communication" when it was launched in 2016.

Highlights signotec Gamma

12,6 cm (5") Display © signotec GmbH

2,048 Pressure Stages © signotec GmbH

ERT-Sensor © signotec GmbH

RSA-Encryption © signotec GmbH

USB-Port

Types of Connection:

HID-USB
Optional: Virtual COM-Port (FTDI)
Optional: signotec USB-Ethernet Adaptor

Highlights

5" (12.6 cm) color display with 800 x 480 pixel resolution
Modern ERT sensor (reacts only to the pen)
Winner of the German Design Award 2016
Life expectancy of approx. 30 million signatures
Batteryless special pen with exchangeable pen tip
Acquisition of 2,048 pressure stages
Transmission rate of the 4D signature data at 500 Hz
Only one USB cable for connection
Patented security for the conclusive signature of PDF documents
RSA encryption of the handwriting characteristics in the pad
Internal secure signature creation device
SlideShow with up to 10 images in standby mode
Individual design options and OEM production (colours and logo printing)
Powerful software for secure PDF signatures optionally available

Technical Specifications - signotec Gamma

DISPLAY
Type	12.6 cm (5") Full-Colour LCD with LED-backlight
Colours	16.8 Million
Resolution	800 x 480 pixels ≙ 188 x 188 ppi
Scroll-Function	Yes, graphics up to 800 x 1.440 pixels

SENSOR
Type	ERT (Electromagnetic-Resonance-Technology)
Pen	batteryless special pen with changeable pen tip
Surface	particularly resistant, hardened special glass
Life expectancy	approx. 30 Million signatures
Pressure Stages	2,048 (from firmware 1.37)
Sample Rate	500 Hz, 4D Samples (x, y, z, t)
Active Signing Area	108 x 65 mm
Resolution	10.206 x 7.422 pixels = 2.400 x 2.910 ppi

SECURITY
Encryption	AES- and RSA-Encryption
Secure Mode	Real-time display of the signature without usable biometrics
PDF-Signature	RSA signature creation device inside the pad
Hash-Algorithms	SHA-1, SHA-256 und SHA-512
More information can be found below in the tab "Security features".

CONNECTION
Connection	USB (approx. 2.7 meters cable length)
Power Supply	USB
Network (TCP/IP)	Yes, with optional signotec USB-Ethernet-Adaptor
Terminal Server / Citrix	Yes, optional with hardware FTDI chip or signotec vCOM driver
Citrix Virtual Channel	Yes, optional with signotec Virtual Channel driver

OTHERS
Dimensions (W x D x H)	145 x 177 x 12 mm
Weight	approx. 280 g
Status LED	2-colour status LED
Slideshow	Yes, up to 10 images as self-sufficient slideshow inside the pad
Customization	Change of housing color and logo print (on request)
Warranty	2 years, optional extension up to 5 years
Software	Free tools and licensed PDF signature software optionally available
