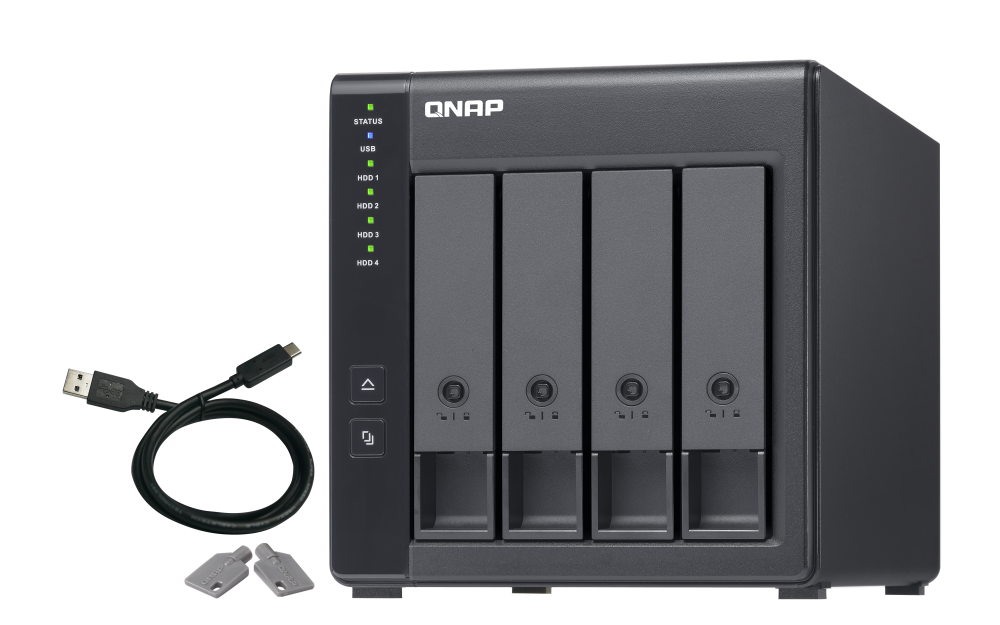

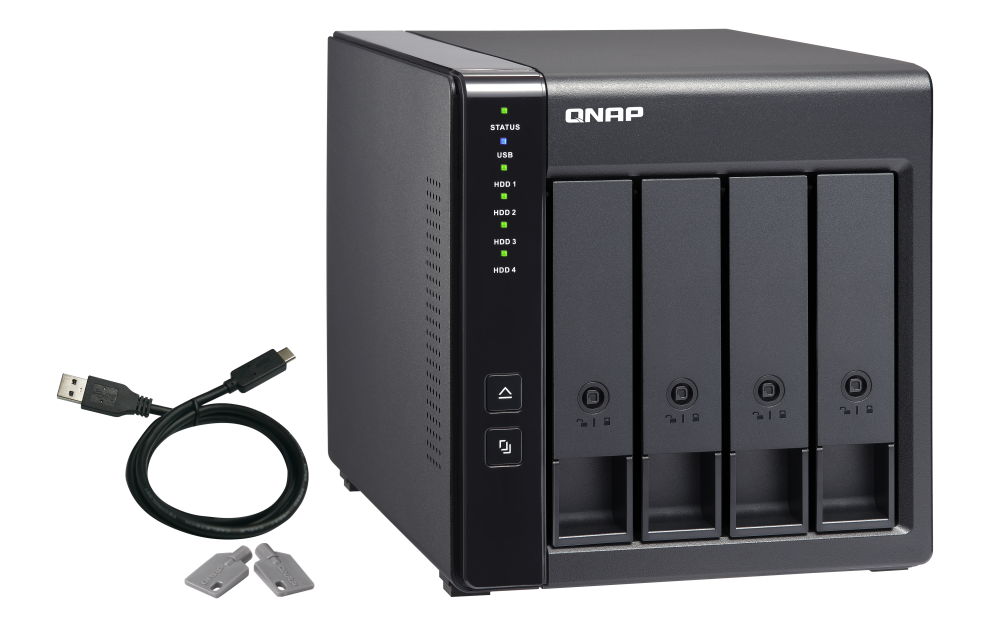

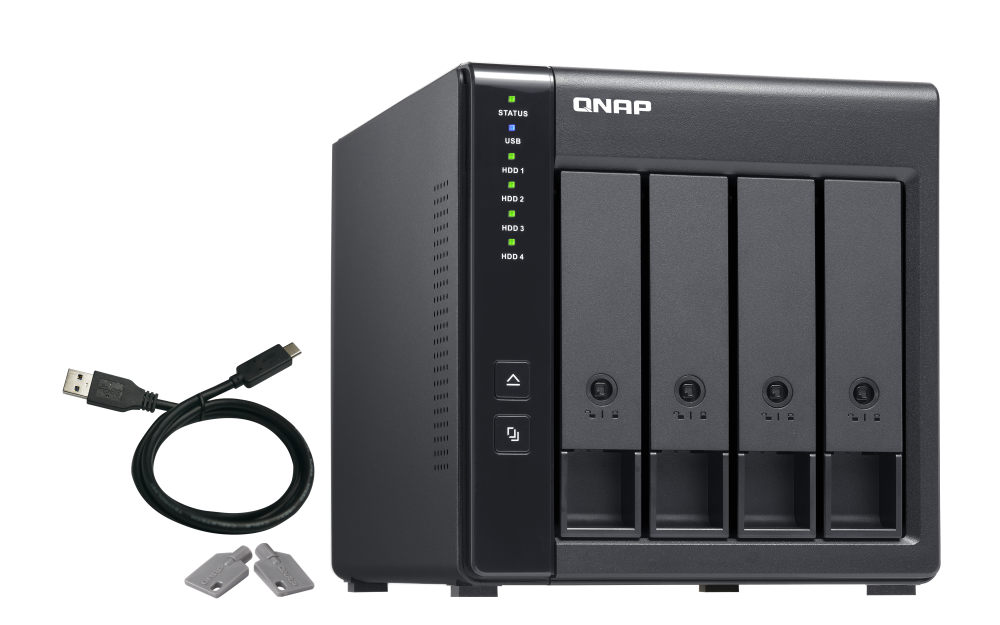

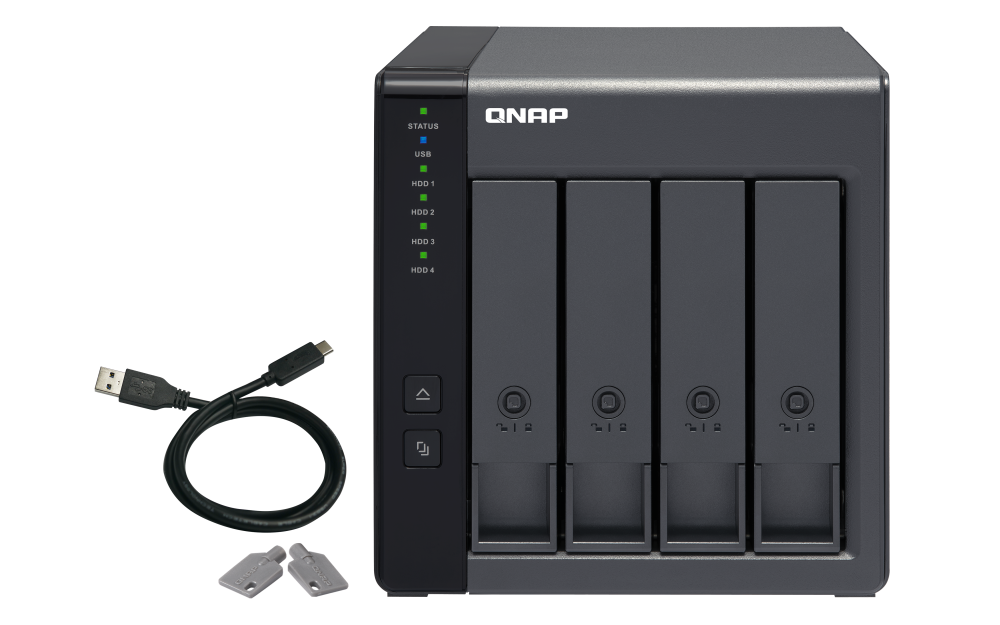

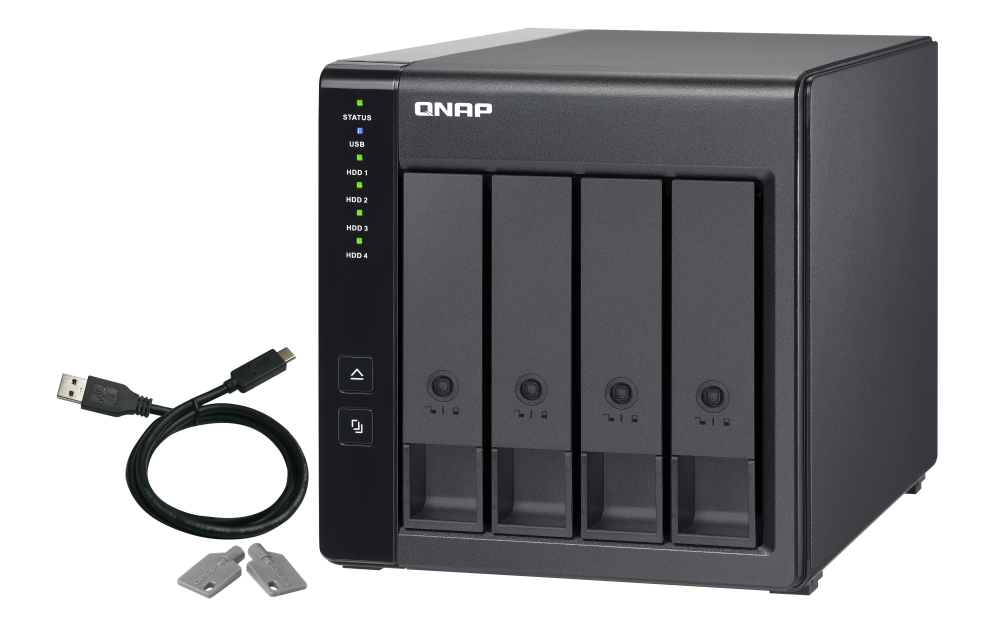

QNAP TR-004 4 Bay Desktop NAS Expansion Type-C Direct Attached Storage
4 Bay USB Type-C Direct Attached Storage with Hardware RAID
The TR-004 USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.
1. USB 3.2 Gen 1 Type-C port* for faster data transfer.
2. Supports up to four SATA drives for reliable read and write performance

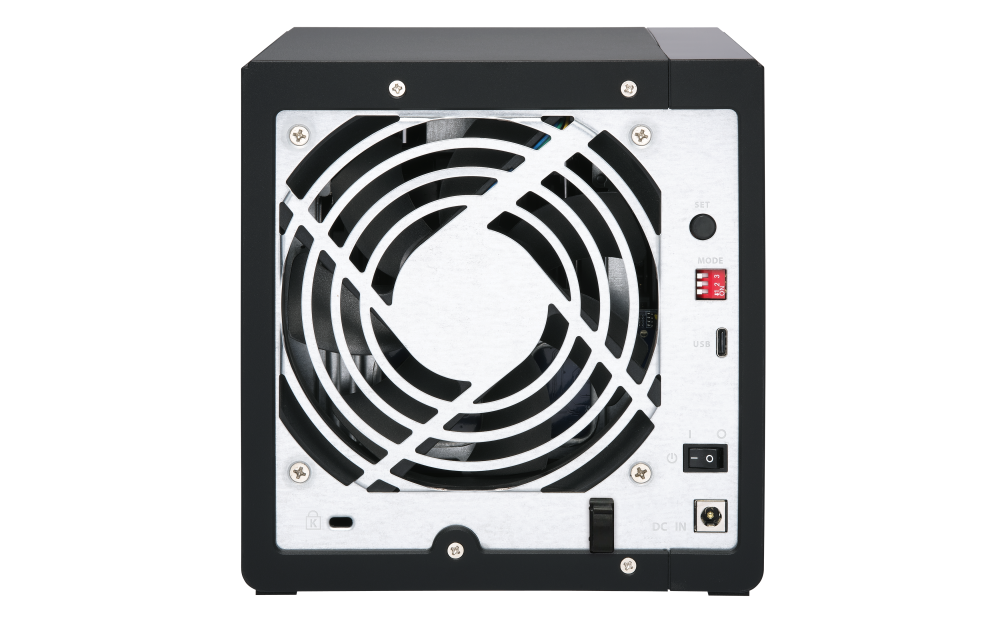

3. Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

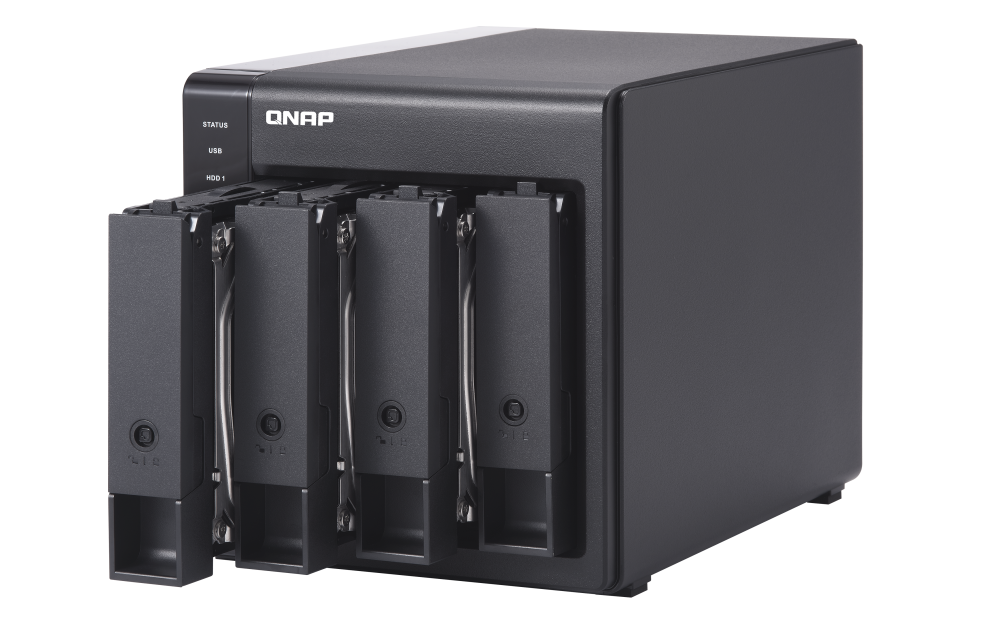

4. Lockable hard drive trays to prevent accidental drive removal.
5. Eject button for disconnecting the TR-004 from a NAS or computer*.
Effective storage expansion with RAID Support
The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Flexible storage configuration and management
Compared with other RAID enclosures, the TR-004 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
Use Storage & Snapshots Manager to configure the TR-004 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004 as a DAS.
The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-004. Users can easily configure RAID groups on the TR-004 and quickly obtain the status of RAID performance and health at a glance.
Specifications
| CPU | Micro processor with hardware RAID |
| Drive Bay | 4 x 3.5-inch SATA 3Gb/s |
| Drive Compatibility | 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-004 does not support the QDA-A2AR/ QDA-A2MAR. |
| Hot-swappable | Yes |
| USB 3.2 Gen 1 port | 1 x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1) |
| Form Factor | Tower |
| Dimensions (HxWxD) | 168.5 × 160.2 × 219 mm |
| Weight (Net) | 1.85 kg |
| Max. number of HDDs/SSDs supported | 4 |
| Hard Drive Type | 4 x 2.5-inch or 3.5-inch SATA 3Gb/s |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 65W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 4.17 W |
| Power Consumption: Operating Mode, Typical | 18.21 W Tested with drives fully populated. |
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
