QNAP TR-002 2 Bay Desktop NAS Expansion 3.5-Inch SATA Drive Bays
2 Bay USB Type-C Direct Attached Storage with Hardware RAID

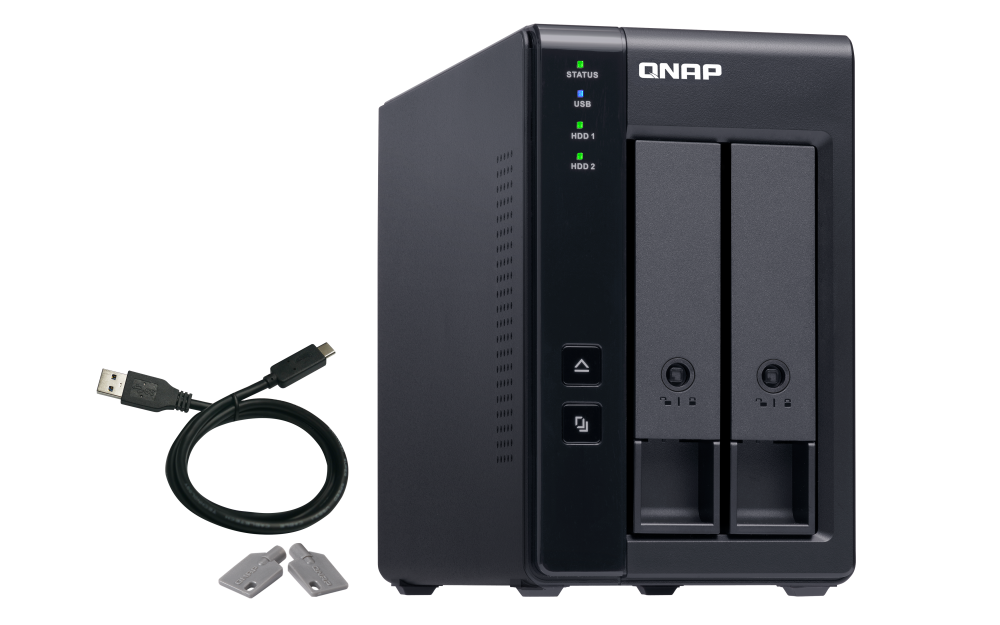

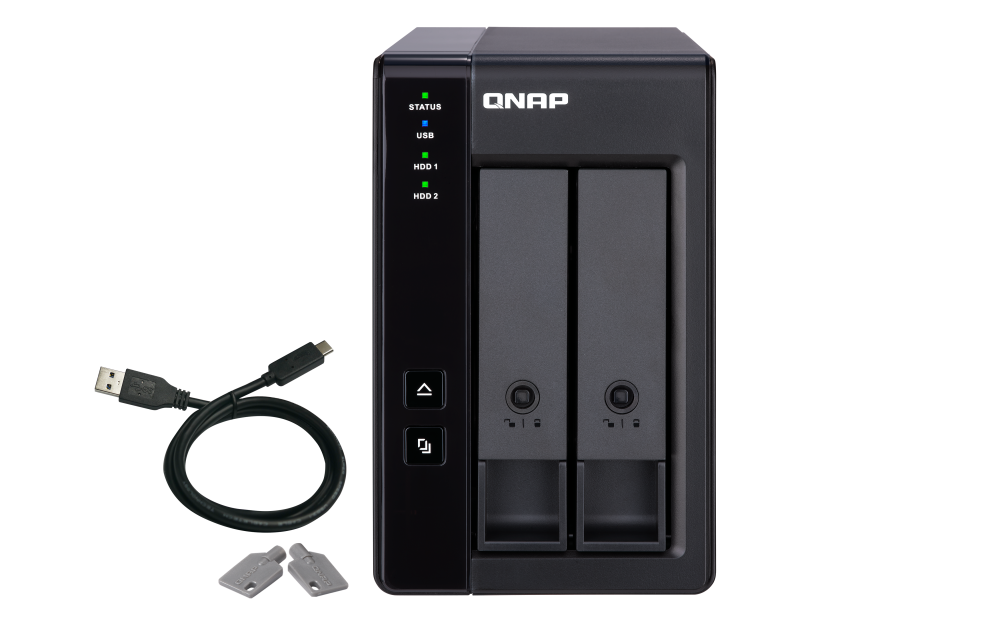

The TR-002 USB 3.2 Gen 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.2 Gen 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
1. USB 3.2 Gen 2 Type-C port* for faster data transfer.
2. Supports up to two SATA drives.

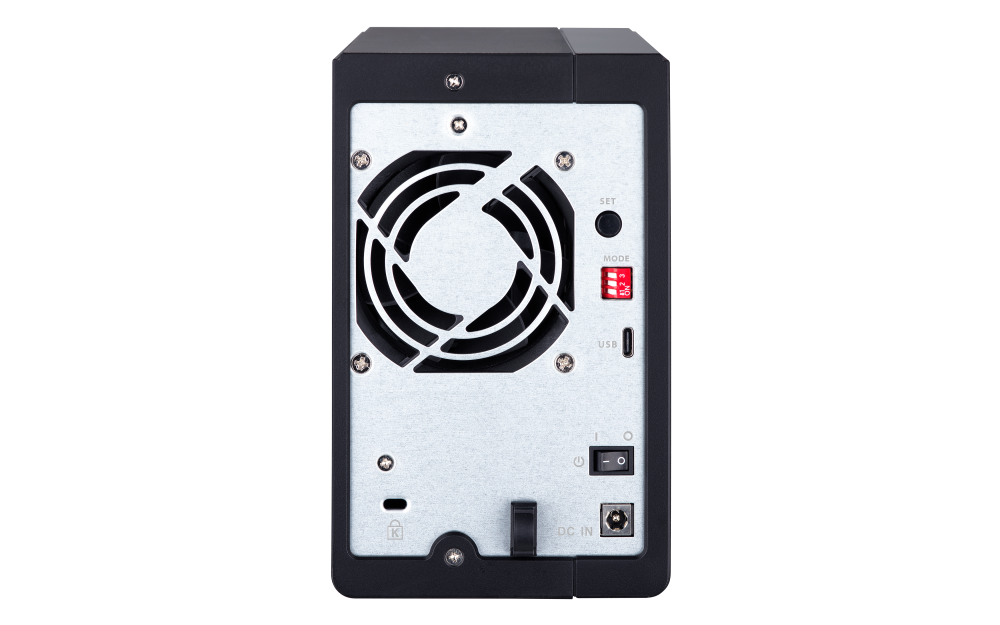

3. Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

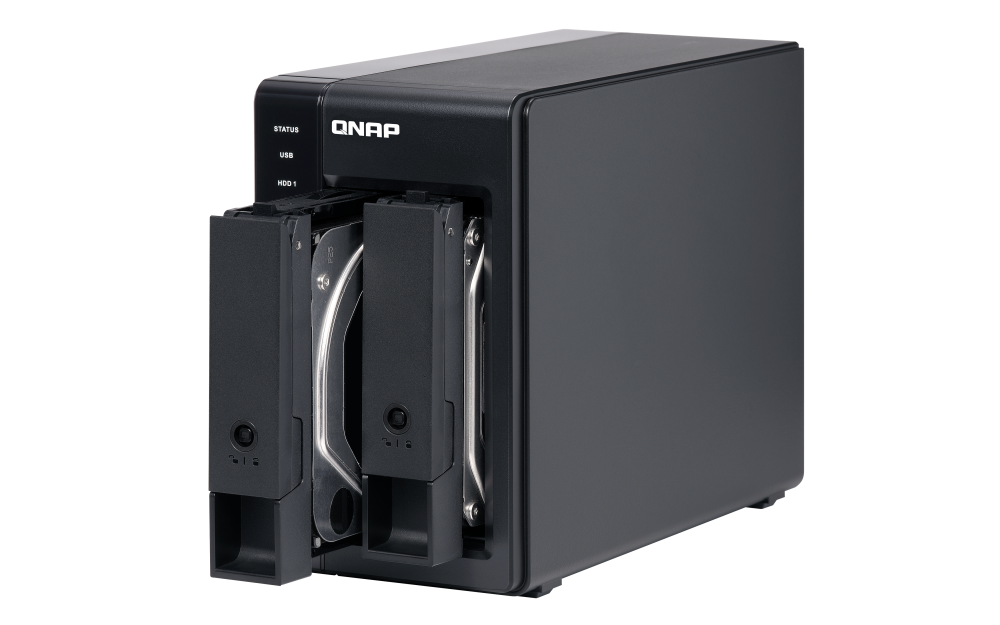

4. Lockable hard drive trays to prevent accidental drive removal.
5. Eject button for disconnecting the TR-002 from a NAS or computer*.
Effective storage expansion with RAID Support
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Flexible storage configuration and management
Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
Use Storage & Snapshots Manager to configure the TR-002 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-002 as a DAS.
Note: When connecting the TR-002 to a NAS, users can choose to use either the NAS expansion storage mode or the external storage mode.
The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-002. Users can easily configure RAID groups on the TR-002 and quickly obtain the status of RAID performance and health at a glance.
Specifications
| CPU | Micro processor with hardware RAID |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-002 does not support the QDA-A2AR/ QDA-A2MAR. |
| Hot-swappable | Yes |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps |
| Form Factor | Tower |
| Dimensions (HxWxD) | 168.5 × 102 × 219 mm |
| Weight (Net) | 1.37 kg |
| Max. number of HDDs/SSDs supported | 2 |
| Hard Drive Type | 2 x 2.5-inch or 3.5-inch SATA 6Gb/s |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 36W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 2.98 W |
| Power Consumption: Operating Mode, Typical | 10.15 W Tested with drives fully populated. |
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
