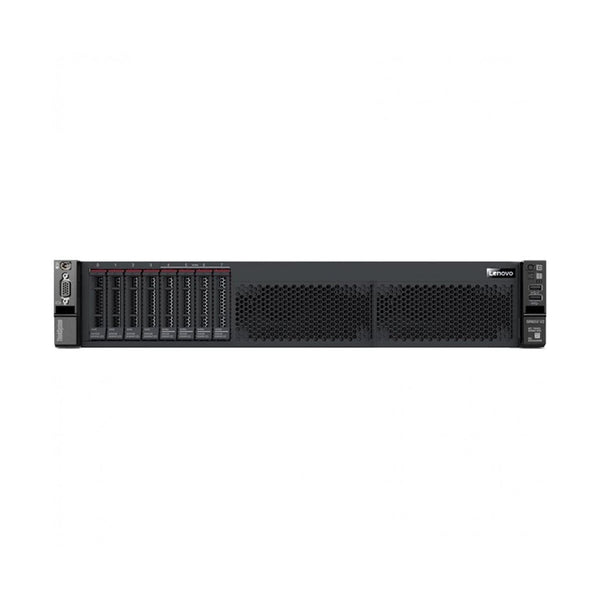

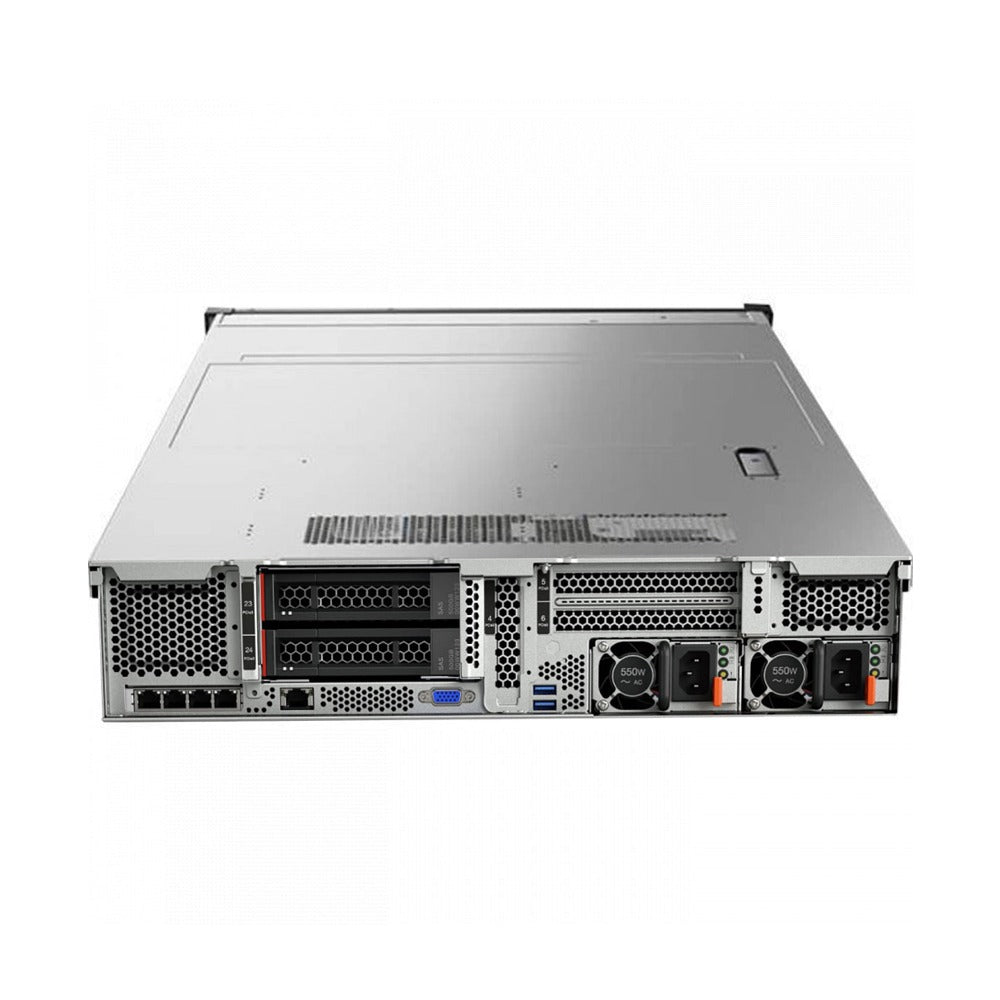

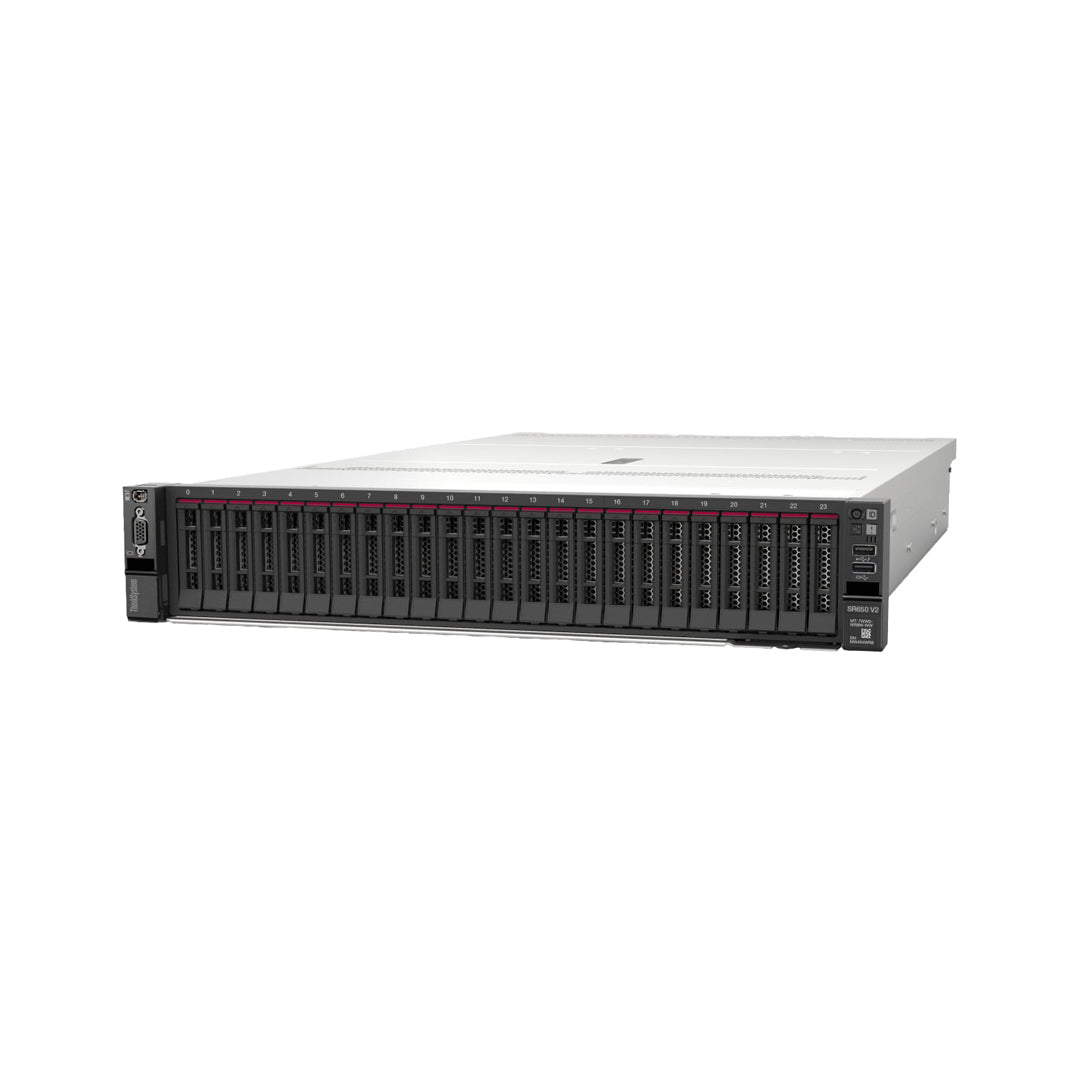

Lenovo ThinkSystem SR650 V2 Server Intel xeon Silver 4314 16C 32GB 9350-8i 750W XCC – 7Z73A06BEA The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC. This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V2 and consider its use in IT solutions. Future defined data center Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR650 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more. Workload-optimized support ThinkSystem SR650 V2 is tuned for Intel® Optane™ persistent memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more. Flexible storage Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 & U.3 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed. *Features shown in description may not be available on all products. Please refer to product specifications for product details.
*Image is for illustrative purposes. Actual touchpad has four haptic sensors
Specifications Processor boost frequency 3.4 GHz Number of processors installed 1 Memory layout (slots x size) 1 x 32 GB Supported RAID controllers 9350-8i No Maximum graphics card memory 16 MB 10/100/1000Base-T(X) Yes Trusted Platform Module (TPM) Yes Compatible operating systems Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi Redundant power supply (RPS) support Yes Number of redundant power supplies installed 1 Power supply input frequency 50 – 60 Hz Operating temperature (T-T) 5 – 45 °C Storage temperature (T-T) -40 – 60 °C Operating relative humidity (H-H) 8 – 90% Storage relative humidity (H-H) 8 – 90% Ports & interfaces Ethernet LAN (RJ-45) ports 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 VGA (D-Sub) ports quantity 1
|
