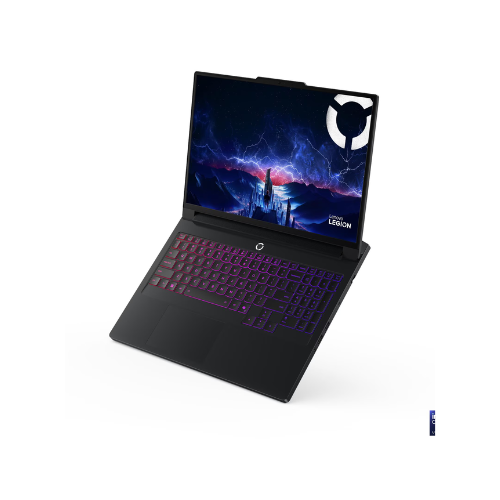

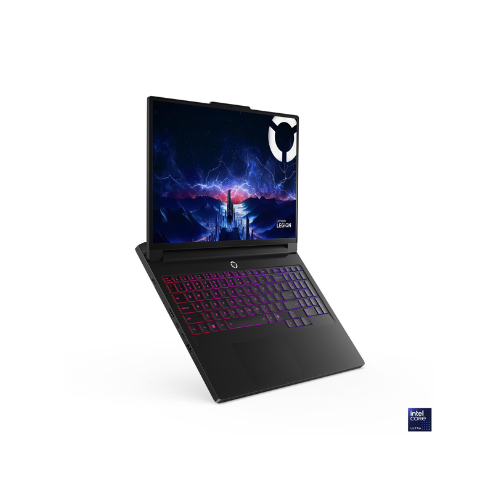

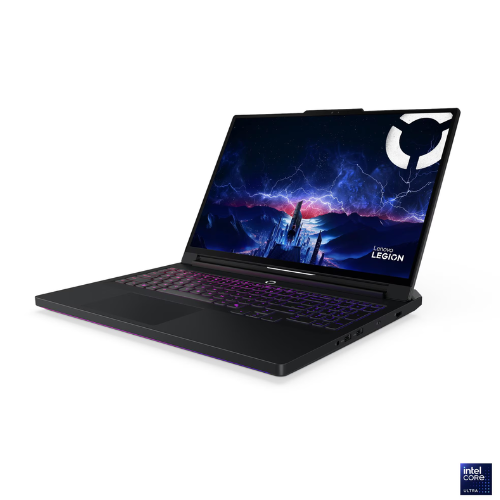

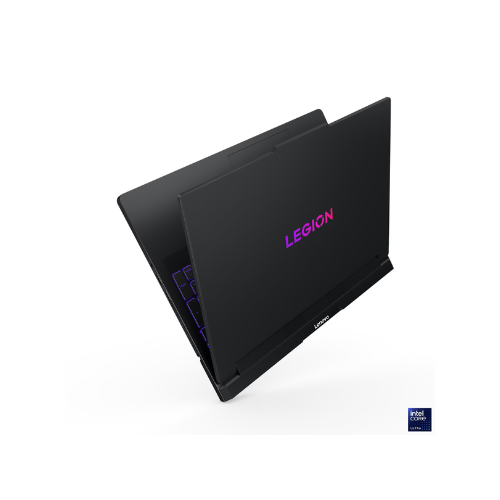

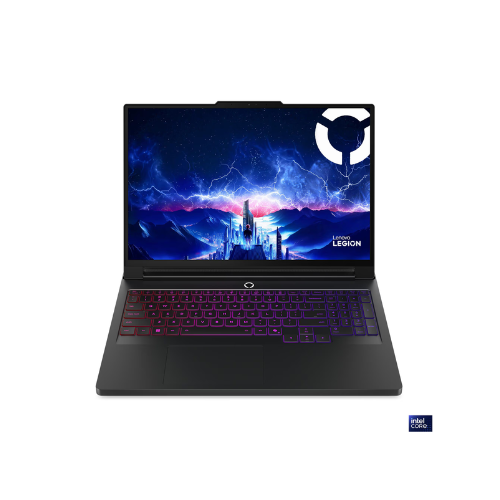

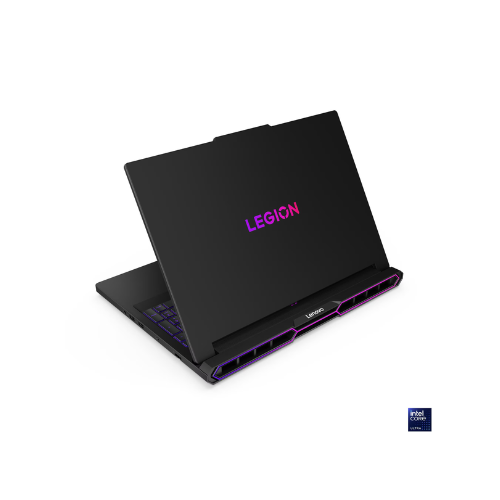

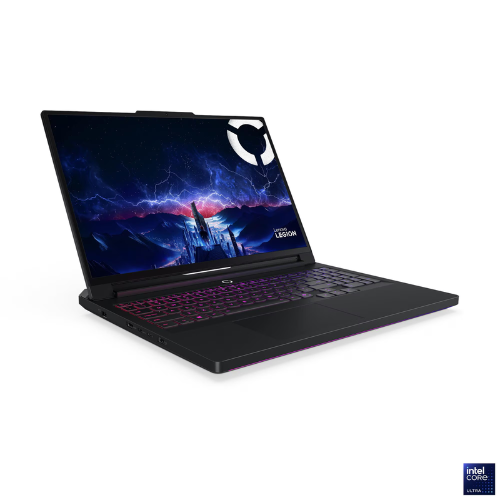

Lenovo Legion P7 16WQX Gaming Laptop Ultra 9‑275HX RTX 5090 24GB GDDR7 64GB DDR5‑6400 2TB PCIe 5.0 NVMe SSD 16" WQXGA DOS 1‑Year Warranty-83F5008LAX
The Lenovo Legion P7 16WQX (83F5008LAX) is a flagship gaming and workstation laptop engineered for extreme performance. Powered by Intel’s Ultra 9‑275HX 14th Gen processor, NVIDIA’s RTX 5090 GPU, and cutting‑edge DDR5‑6400 memory, it delivers unmatched speed, multitasking, and next‑gen graphics power.With a 16" WQXGA high‑resolution display, massive 64GB RAM, and PCIe 5.0 SSD storage, this machine is designed for elite gamers, creators, and enterprise professionals who demand the very best.
Processor – Intel Core Ultra 9‑275HX (14th Gen)
- Base Clock Speed: 2.2 GHz
- Turbo Boost: Up to 5.4 GHz
- Cache: 36 MB
- Cores/Threads: 24 cores (8 performance + 16 efficiency), 24 threads
This Ultra 9 processor is built for extreme multitasking and gaming. With 24 cores and advanced hybrid architecture, it handles AAA gaming, streaming, and creative workloads simultaneously. The 36 MB cache ensures lightning‑fast responsiveness.
Memory – 64GB DDR5‑6400
- Type: DDR5
- Speed: 6400 MHz
- Capacity: 64 GB (2×32GB CSODIMM)
With 64GB DDR5 memory, the Legion P7 is future‑proofed for heavy multitasking, virtual machines, and professional creative workloads. DDR5‑6400 ensures maximum bandwidth and ultra‑low latency.
Storage – 2TB PCIe 5.0 NVMe SSD
- Type: B
- Capacity: 2 TB (M.2 2280)
The PCIe 5.0 SSD delivers next‑generation speed, ensuring instant boot times, rapid file transfers, and seamless access to massive game libraries or enterprise datasets.
Graphics – NVIDIA GeForce RTX 5090 (24GB GDDR7)
- GPU: NVIDIA GeForce RTX 5090
- VRAM: 24GB GDDR7 dedicated
- Boost Clock: 2160 MHz
- TGP: 175W
- AI TOPS: 1824
The RTX 5090 is NVIDIA’s flagship GPU, offering unparalleled gaming and AI performance. With 24GB of GDDR7 VRAM, it delivers smooth 4K/8K gaming, advanced ray tracing, and AI‑accelerated workflows.
Advantages:
- Gamers: Ultra‑high frame rates in AAA titles.
- Creators: GPU acceleration for rendering, video editing, and AI workloads.
- Professionals: Reliable graphics output for simulation, design, and enterprise visuals.
Display – 16" WQXGA (2560×1600)
- Size: 16 inches
- Resolution: 2560 × 1600 (WQXGA, 2.5K)
- Panel Type: IPS‑level equivalent
The WQXGA display ensures crisp visuals, wide viewing angles, and sharp detail. Perfect for immersive gaming, creative design, and enterprise productivity.
Keyboard – Legion Pro Series
The Legion P7 features a gaming‑optimized keyboard with per‑key RGB customization in higher trims. This SKU includes an English layout, ensuring compatibility with international workflows.
Operating System – DOS
Ships with DOS, giving users flexibility to install their preferred OS. Enterprises can deploy Windows or Linux based on workflow needs.
Warranty – 1 Year Courier/Carry‑In
Lenovo provides a 1‑year courier or carry‑in warranty, ensuring peace of mind for users. This covers hardware defects and service support.
Real‑World Performance
- Gaming: Smooth 2.5K, 4K, and even 8K performance with ray tracing and DLSS.
- Productivity: Efficient multitasking across enterprise workflows.
- Creative Work: Accelerated rendering and AI workloads with RTX 5090 GPU.
- Enterprise Use: Reliable catalog management, simulation, and workflow optimization.
- Entertainment: Crisp visuals for streaming and multimedia playback.
| PERFORMANCE |
| Processor | Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB |
| AI PC Category | AI-Powered Gaming PC |
| NPU | Integrated Intel® AI Boost, up to 13 TOPS |
| Graphics | NVIDIA® GeForce RTX™ 5090 24GB GDDR7, Boost Clock 2160MHz, TGP 175W, 1824 AI TOPS |
| Chipset | Intel® HM870 Chipset |
| Memory | 2x 32GB CSODIMM DDR5-6400 |
| Memory Slots | Two DDR5 CSODIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-6400 offering |
| Storage | 2TB SSD M.2 2280 PCIe® 5.0x4 Performance NVMe® |
| Storage Slot | Two M.2 slots • One M.2 2280 PCIe® 5.0 x4 slot • One M.2 2280 PCIe 4.0 x4 slot |
| Max Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 2TB |
| Optical | None |
| Card Reader | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers | 4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP) |
| Microphone | 2x, Array |
| Camera | 5.0MP with E-shutter |
| Battery | 99.9Wh |
| Power Adapter | 400W Slim Tip (3-pin) |
| Special Features | AI Chip: LA3 |
| DESIGN |
| Display | 16" WQXGA (2560x1600) OLED 500nits (Typical) / 1100nits (Peak) Glossy, 100% DCI-P3, 240Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free |
| Touchscreen | None |
| Screen-to-Body Ratio | 92% AAR (active area ratio) |
| Color Calibration | Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | Per-key RGB Backlit, Arabic |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (WxDxH) | 364.38 x 275.94 x 21.9-26.65 mm (14.35 x 10.86 x 0.86-1.05 inches) |
| Weight | Starting at 2.57 kg (5.67 lbs) |
| Case Color | Eclipse Black |
| Case Material | Aluminium (Top), Aluminium (Bottom) |
| Surface Treatment | Anodizing Sandblasting |
| SOFTWARE |
| Operating System | None |
| Bundled Software | None |
| CONNECTIVITY |
| WLAN + Bluetooth | Wi-Fi® 7, 802.11be 2x2 + BT5.4 |
| WWAN | Non-WWAN |
| Ethernet | 2.5GbE (RJ-45) |
| Standard Ports | - 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
- 1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer and DisplayPort™ 2.1)
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (2.5GbE RJ-45)
- 1x Power connector
|
| | |
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | None |
| ACCESSORIES |
| Bundled Accessories | 4 Switchable Keycaps |
| CERTIFICATIONS |
| Green Certifications | |
| Other Certifications | - TÜV Rheinland® Flicker Free
- TÜV Rheinland® High Gaming Performance
- TÜV Rheinland® Low Blue Light (Hardware Solution)
|

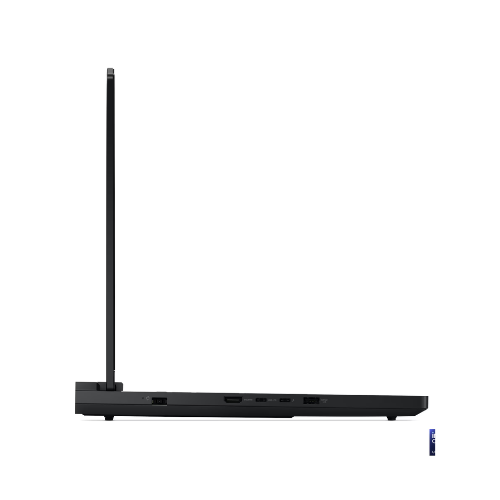

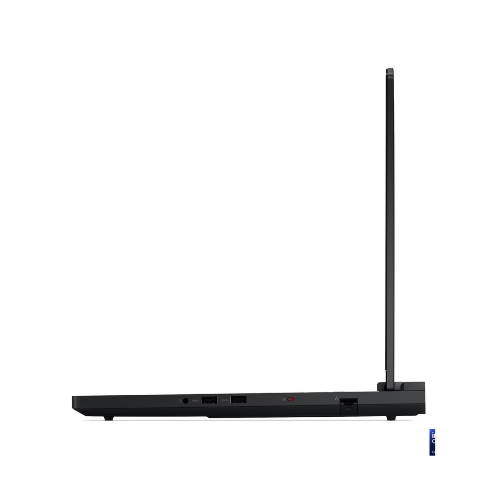

| 1.Headphone / microphone combo jack (3.5mm) | 7.HDMI® |
| 2.USB-A (USB 5Gbps) | 8.USB-C® (USB 10Gbps), with PD 140W & DP 2.1 |
| 3.USB-A (USB 5Gbps) | 9.Thunderbolt™ 4 |
| 4.E-shutter switch | 10.USB-A (USB 10Gbps), Always On |
| 5.Ethernet (2.5GbE RJ-45) | 11.USB-C® (USB 10Gbps), with USB PD 65-100W & DP 2.1 |
| 6.Power connector | |
