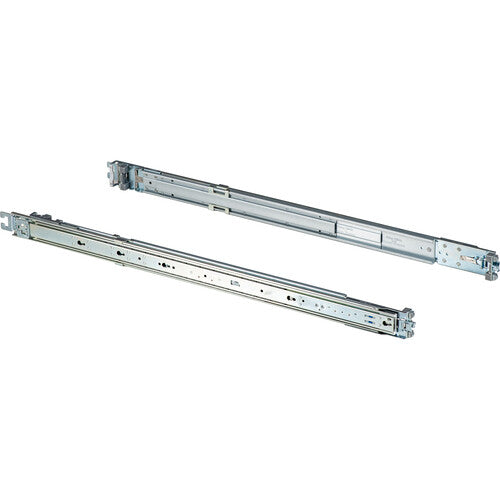

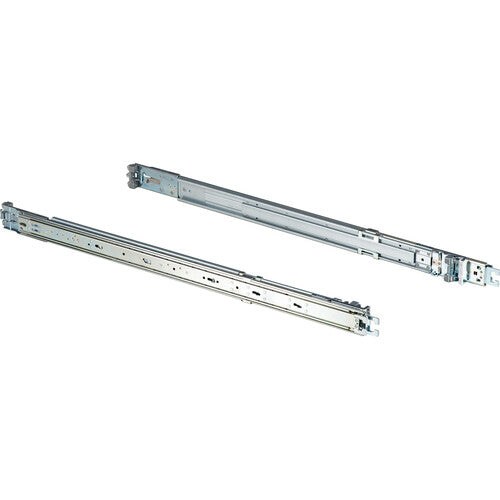

The Synology Sliding Rail Kit allows you to mount your Synology rackmount servers on sliding rails for easy and convenient access.
Compatibility
- FS series: FS3400, FS3017, FS2017
- SA series: SA3400, SA3200D
- 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2421RP+, RS2421+, RS1221RP+, RS1221+
- 20 series: RS820RP+
- 23 series: RX1223RP
- 19 series: RS1619xs+, RS1219+, RS819, RXD1219sas
- 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418
- 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP
- 16 series: RS18016xs+, RS2416RP+, RS2416+, RS816
- 15 series: RS815RP+, RS815+, RS815, RX415
- 14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214
- 13 series: RS10613xs+, RS3413xs+, RX1213sas
- 12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812
- 11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211
- 10 series: RS810RP+, RS810+, RX410
- 9 series: RS409RP+, RS409+, RS409, RX4
Installation Requirements
- Mount post width must be equal to or greater than 17.7" (450 mm)
- Panel width must be equal to or greater than 18.9" (480 mm)
- Rack mounting depth: 24 to 35" (610 to 890 mm)
- Rack mounting square hole: at least 0.37 x 0.37" (9.5 x 9.5 mm)
- Rack mounting round hole: at least 0.28" (7.1 mm)
