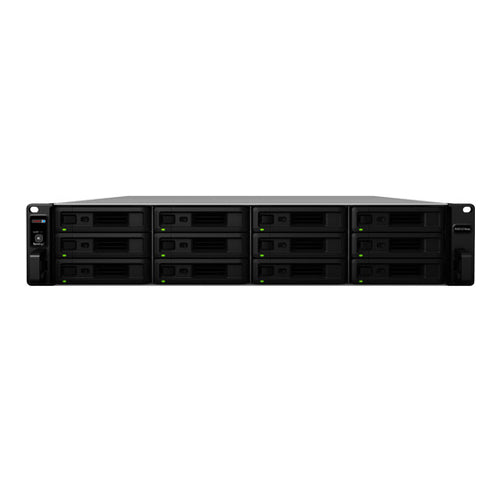

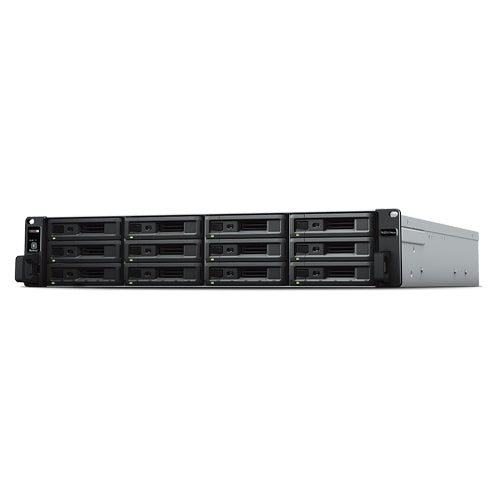

Synology RXD1219sas 12-Bay Storage Expansion Unit RXD1219sas
Reliable and highly scalable SAS storage expansion unit for your Synology servers
On-the-fly SAS expansion up to 12 additional bays
RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers1. You can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable.
Designed for maximum reliability

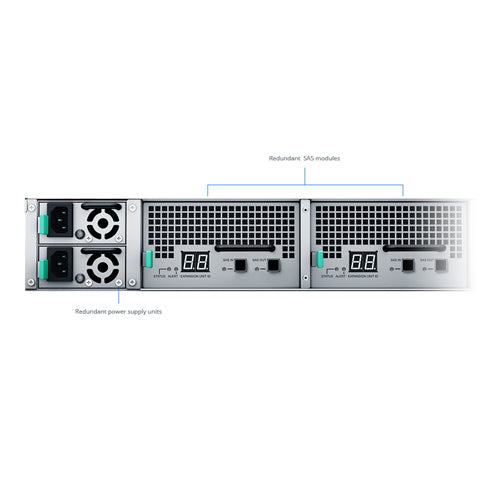

The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.
Designed for maximum reliability
The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.
High-performance data transmission
The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency.
| Hardware Specifications |
| Applied Models | Supports creating volumes across different units | - SA series:SA3400D, SA3200D
|
| Supports creating volumes on a single unit only | |
| Storage | Drive Bays | 12 |
| Drive Type (See all supported drives) | - 2.5” dual-port SAS SSD
- 2.5” dual-port SAS HDD
- 3.5” dual-port SAS HDD
|
| Hot Swappable Drive* | |
| Notes | - Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
- "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
|
| External Ports | SAS IN-port | 2 |
| SAS OUT-port | 2 |
| Appearance | Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm |
| Weight | 18.2 kg |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) |
| Notes | The rail kit is sold separately |
| Power | Power Supply Unit / Adapter | 500 W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 299.79 W (Access)
|
| British Thermal Unit | 1022.93 BTU/hr (Access)
|
| Redundant Power Supply | |
| Notes | Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). |
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Others | System Fan | 60 mm x 60 mm x 4 pcs |
| Easy Replacement System Fan | |
| Noise Level* | 60.9 dB(A) |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%. |
| Certification | - FCC
- CE
- BSMI
- EAC
- VCCI
- RCM
- KC
- BIS
|
| Warranty | 5 Years |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
| Environment & Packaging |
| Environment | RoHS Compliant |
| Packaging Content | - Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 2
- Expansion Cable: Mini-SAS HD X 2
- Quick Installation Guide X 1
|
| Optional Accessories | |
