Easy monitoring allows you to make optimal use of each SSD.
Purpose-built for Synology systems
Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.

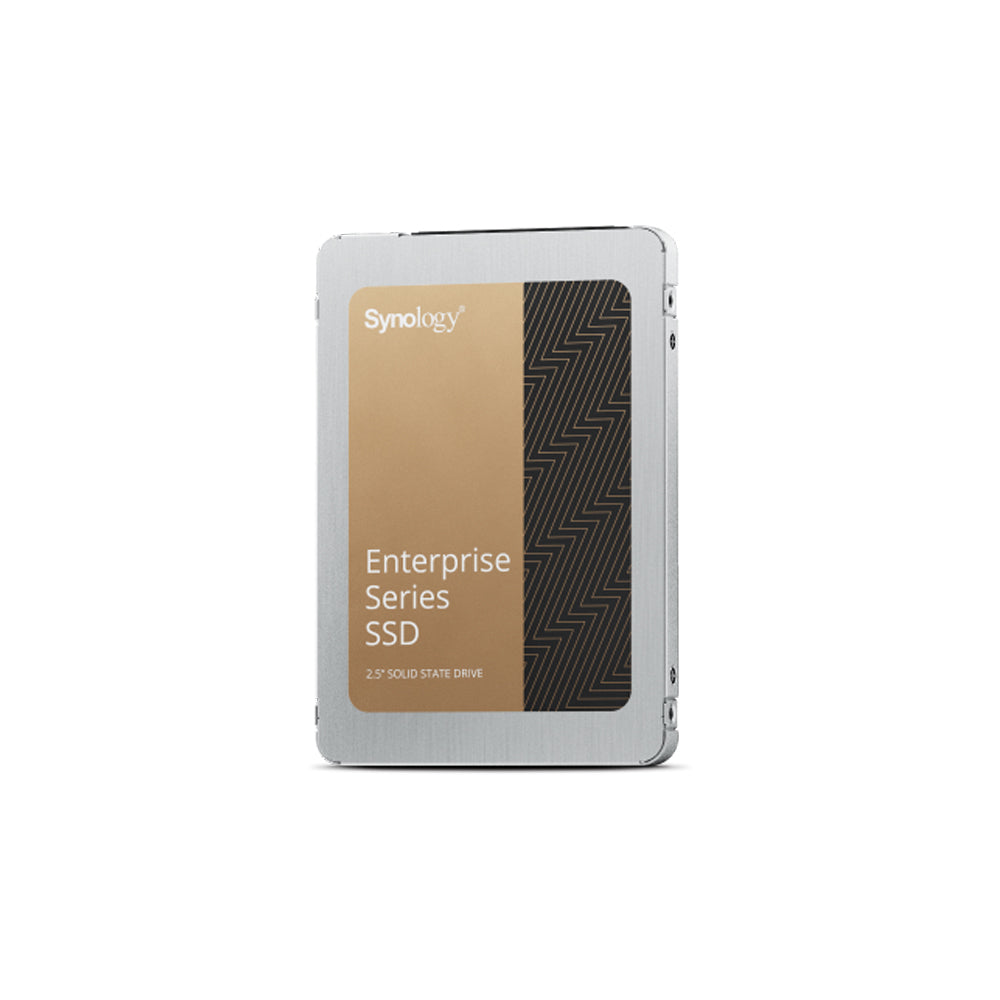

Synology SAT5220 Internal SSD Specs
Key Specs:
| Total Installed Storage | 960 GB |
| Drive Type | SATA III / 2.5" 7 mm SSD |
| Read Speed | Sequential: 530 MB/s Random: 98,000 IOPS |
| Write Speed | Sequential: 500 MB/s Random: 44,000 IOPS |
| Total Installed Storage | 960 GB |
| Drive Type | SATA III / 2.5" 7 mm SSD |
| Read Speed | Sequential: 530 MB/s Random: 98,000 IOPS |
| Write Speed | Sequential: 500 MB/s Random: 44,000 IOPS |
| Encryption Support | Not Specified by Manufacturer |
| Mean Time Between Failures (MTBF) | 1.5 Million Hours |
| Endurance (Total Bytes Written) | 1700 TB |
Electrical
| Power Draw | 3.2 W (Active) 1.3 W (Idle) |
General
| Operating Conditions | 32 to 158°F / 0 to 70°C |
| Storage Conditions | -40 to 185°F / -40 to 85°C |
| Dimensions | 3.9 x 2.75 x 0.3" / 100 x 69.85 x 7 mm |
Packaging Info
| Package Weight | 0.23 lb |
| Box Dimensions (LxWxH) | 6 x 5 x 0.6" |
