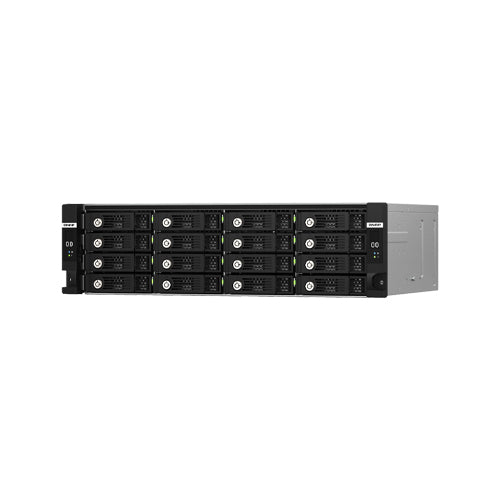

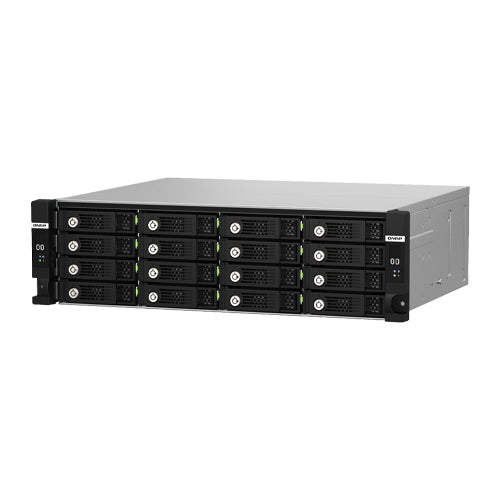

QNAP TL-R1620SDC 16-Bay SAS-3 / SATA III JBOD Expansion Enclosure with Dual Controllers - TL-R1620Sdc

Name: QNAP TL-R1620SDC 16-Bay SAS-3 / SATA III JBOD Expansion Enclosure with Dual Controllers - TL-R1620Sdc
Brand: QNAP
Price: 12843 AED
Availability: InStock

TL-R1620Sdc

Dual-controller SAS 12Gb/s storage expansion for enterprises

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.

Storage expansion for dual-controller NAS

Flexibly and economically expand the storage space of a dual-controller QNAP NAS for petabyte-level storage capacity.
Dual path design

Dual path mini-SAS design with a redundant power supply for enhanced system reliability.
Missing mode protection

QNAP dual-controller NAS can detect JBOD connections, and enter missing mode protection to prevent data corruption.
DataBolt™ bandwidth optimization

DataBolt™ bandwidth optimization combines two 6Gb/s connections into one 12Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.
Flexible storage management

Manage the storage space and settings of the connected TL-R1620Sdc with Storage Manager on the host NAS.
Short depth design

The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. (Short rail kit RAIL-S01 requires optional purchase.)

TL-R1620Sdc Sepcs:

JBOD Connection Interface	SAS
Drive Bay	16 x 3.5-inch The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility	3.5-inch bays: 3.5-inch SAS 12Gb/s, 6Gb/s hard disk drives 2.5-inch SAS 12Gb/s, 6Gb/s hard disk drives 2.5-inch SAS 12Gb/s, 6Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
Hot-swappable
Form Factor	3U Rackmount
Host Interface	3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
LED Indicators	HDD 1-16, Status, Power, Fan, Temperature, SAS connector status
Buttons	Power, OLED
Dimensions (HxWxD)	131.3 × 482.2 × 425.3 mm Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)	13.92 kg
Weight (Gross)	17.84 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	550W(x2), 100-240V
Power Consumption: Operating Mode, Typical	212.24 W Tested with drives fully populated.
Fan	3 x 80mm, 12VDC
System Warning	Buzzer
QES
Windows
Supports JBOD cascading
Supports expanding NAS storage pools
Supports Multi-path
Dual-controller design (HA)
Standard Warranty	5
Management	Managed via NAS QES OS and JBOD Manager for Windows
