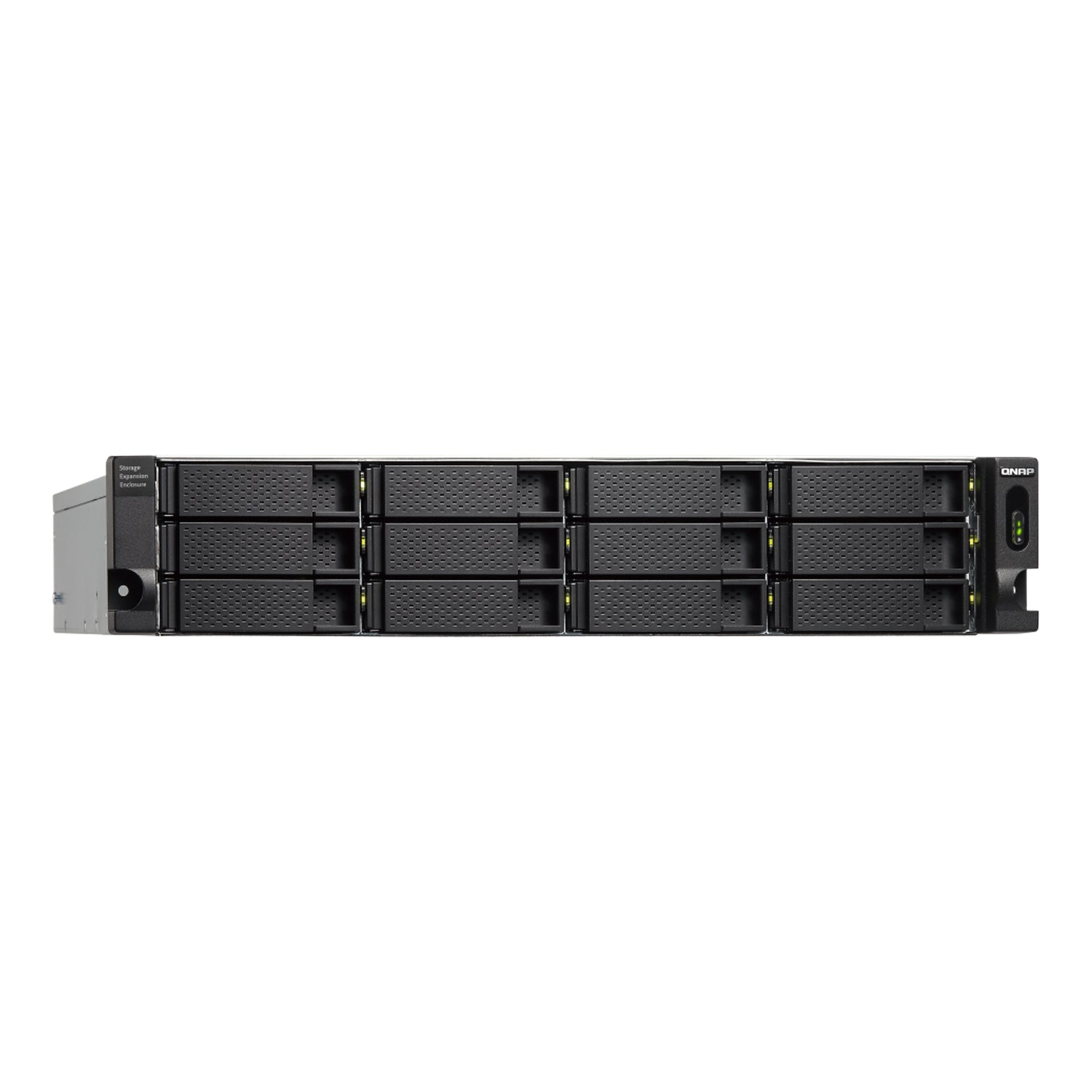

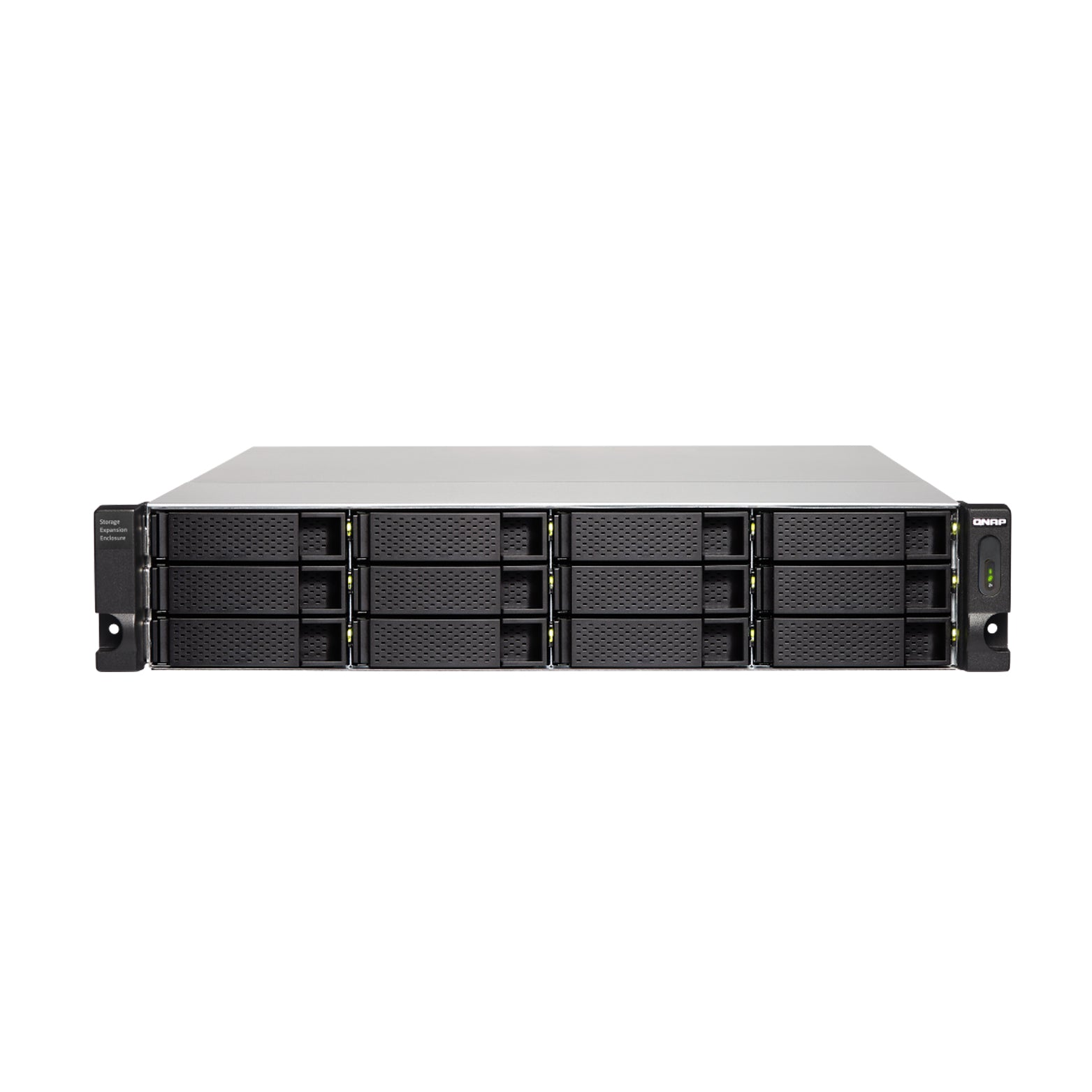

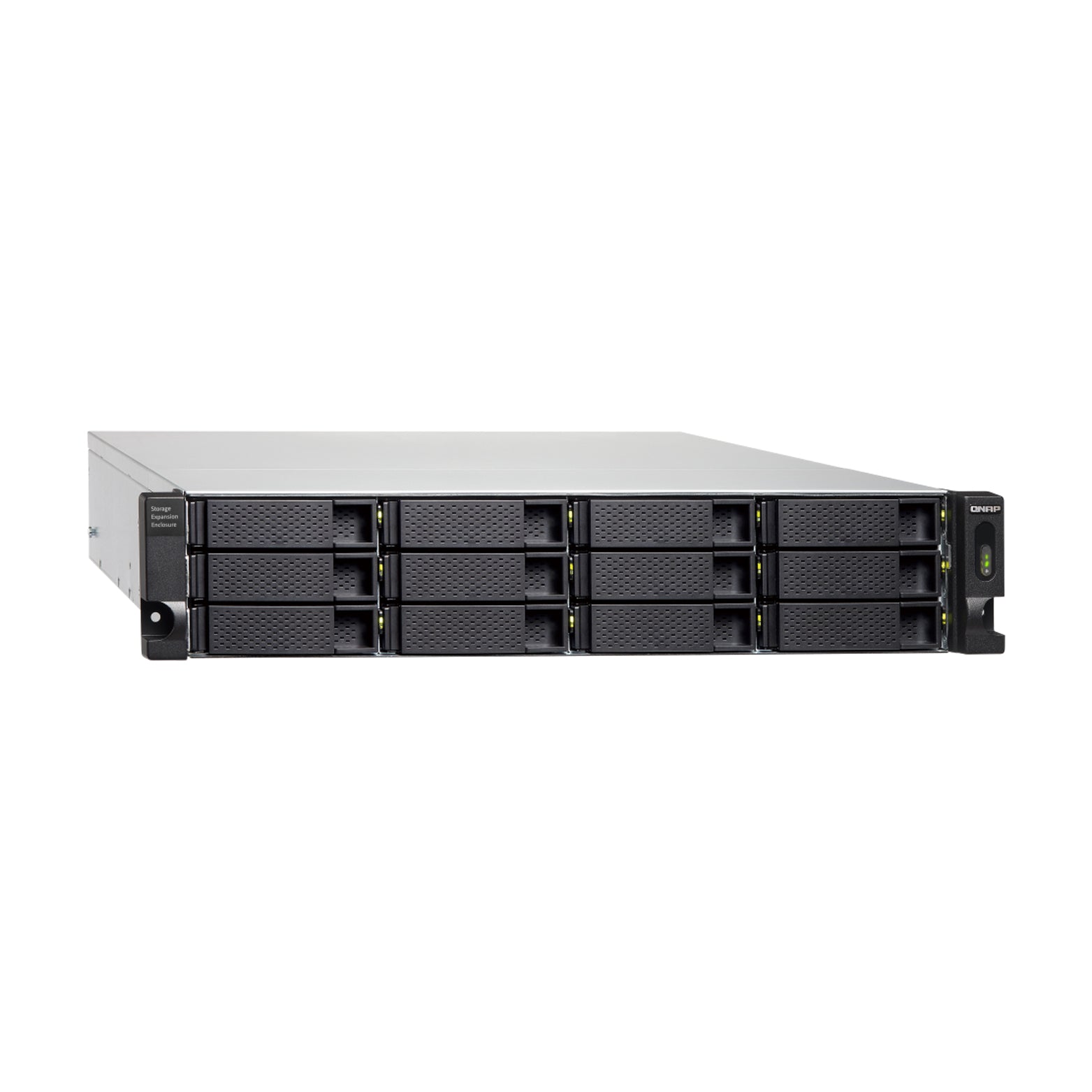

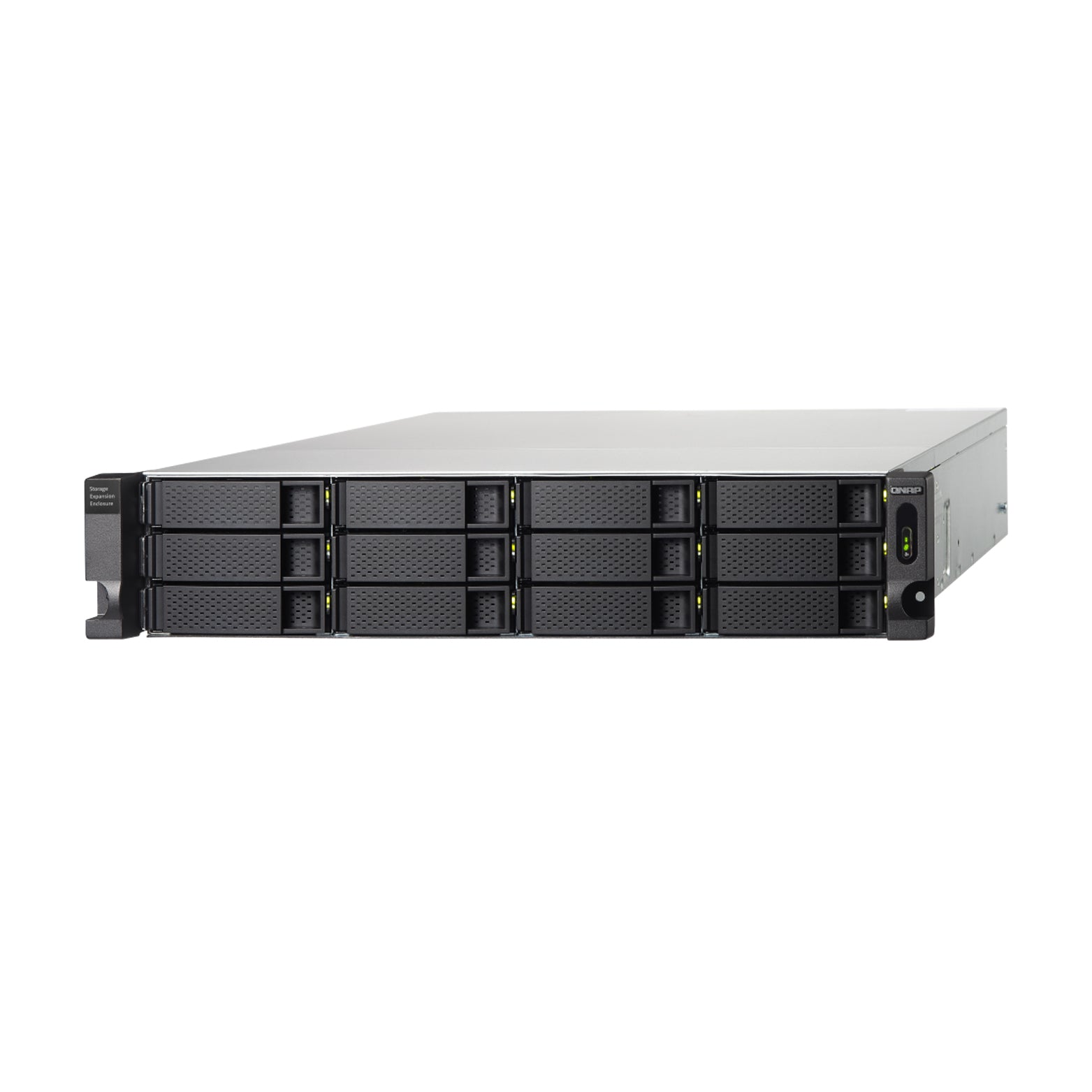

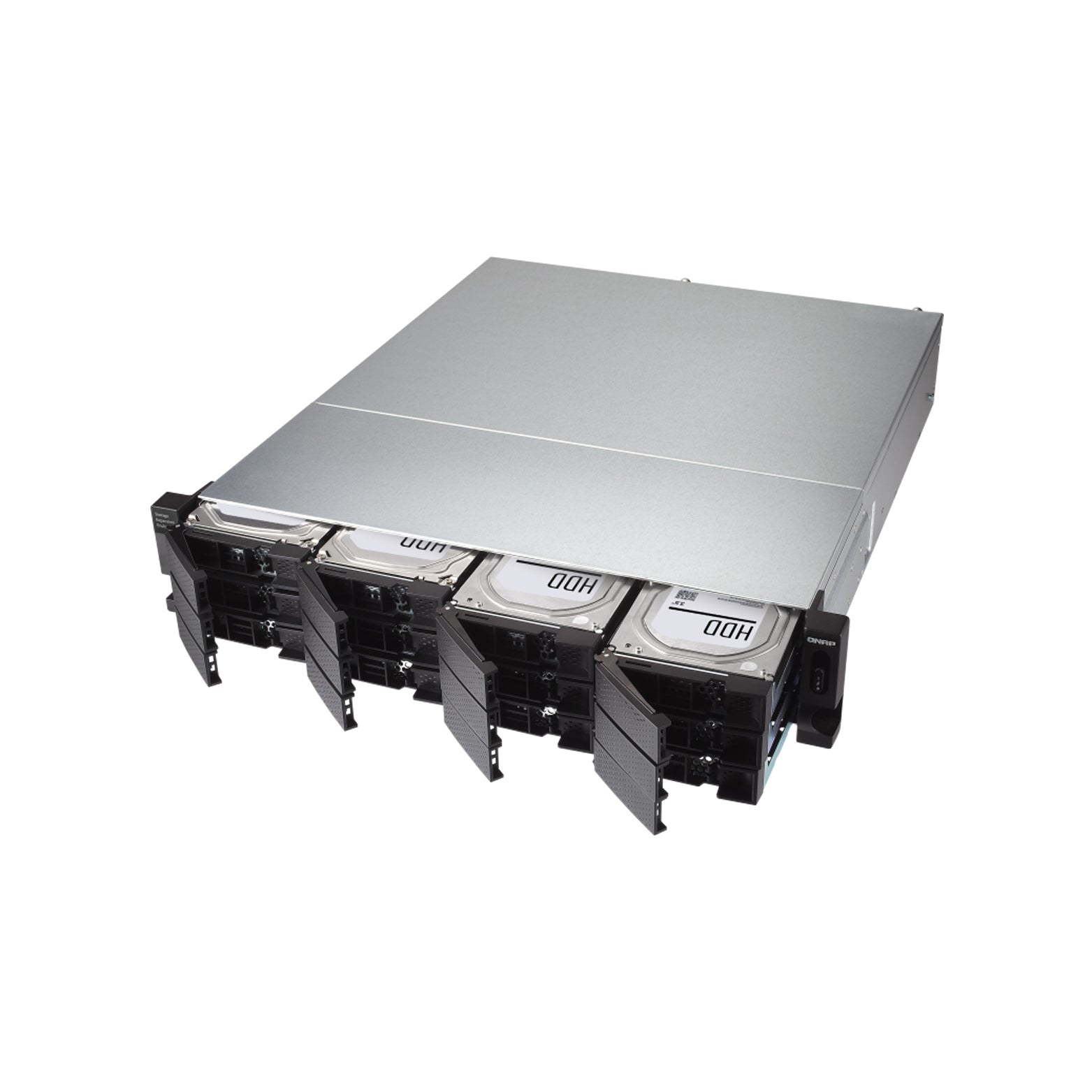

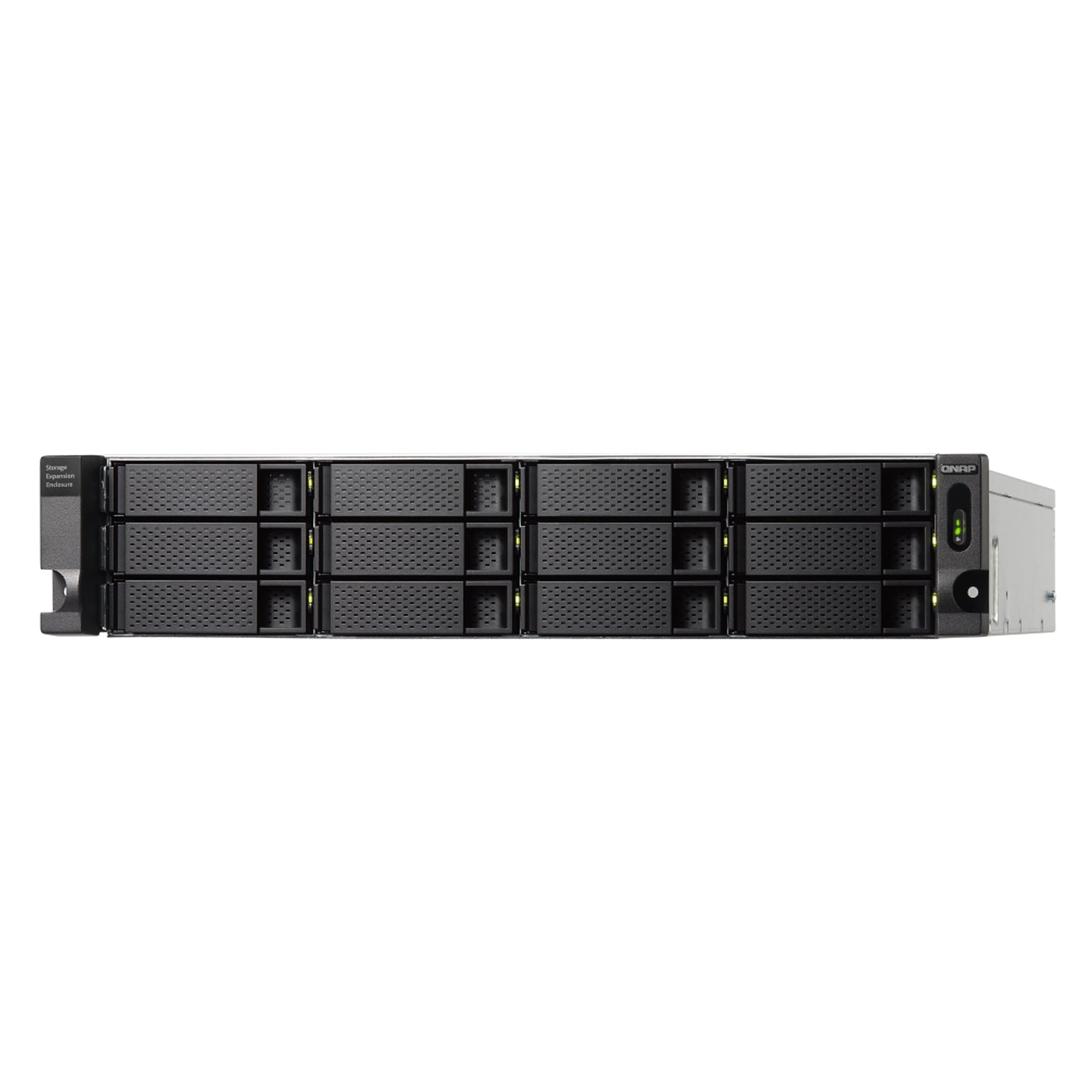

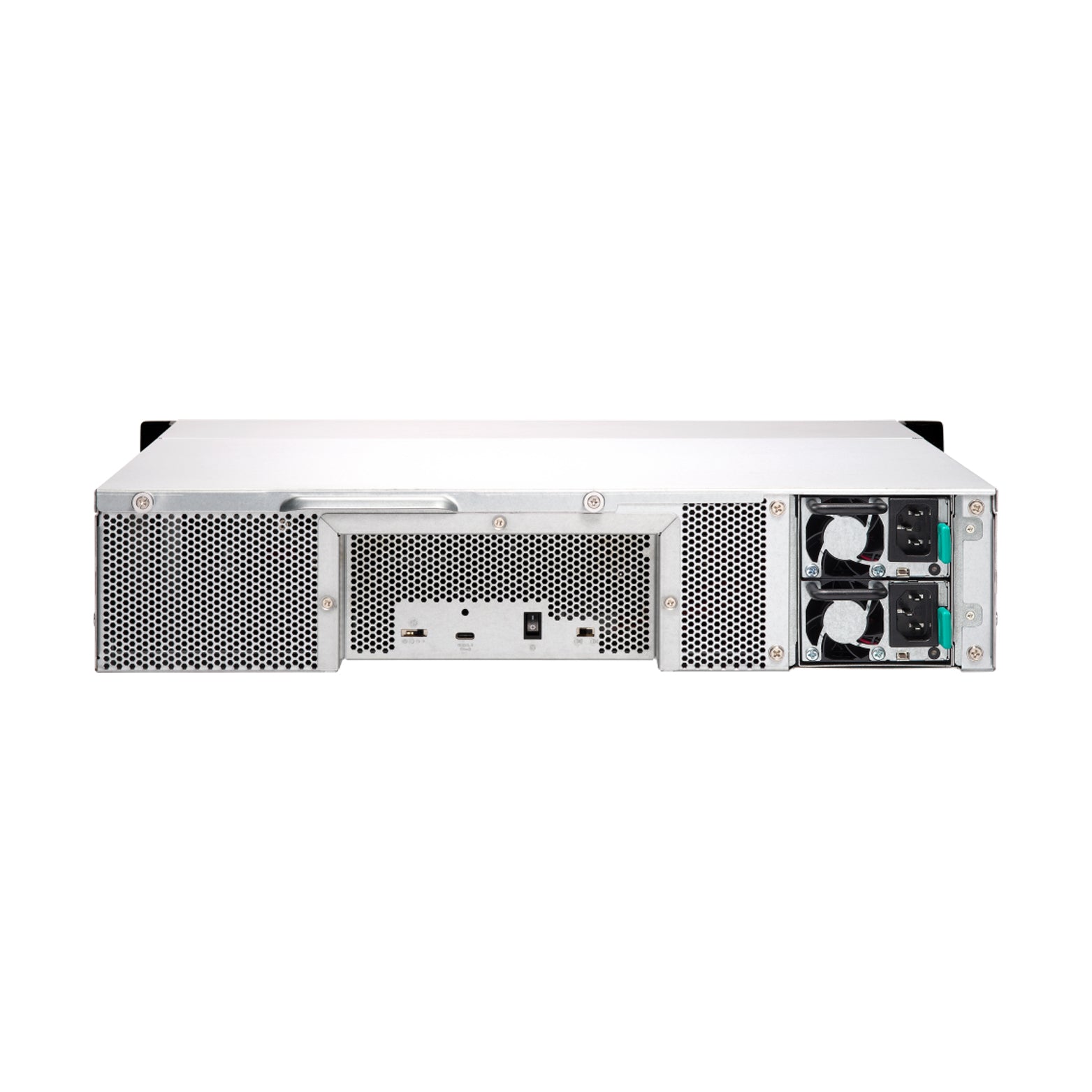

QNAP TL-R1200C-RP 12-Bay JBOD Expansion Unit with Redundant Power Supply

Rackmount USB 3.2 Gen 2 Type-C high-capacity JBOD storage enclosure with redundant power

The rackmount TL-R1200C-RP JBOD storage enclosure allows you to back up and expand your QNAP NAS, computers (supports Windows), and servers. The TL-R1200C-RP features twelve 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

USB 3.2 Gen 2 (10Gbps)

USB 3.2 Gen 2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.

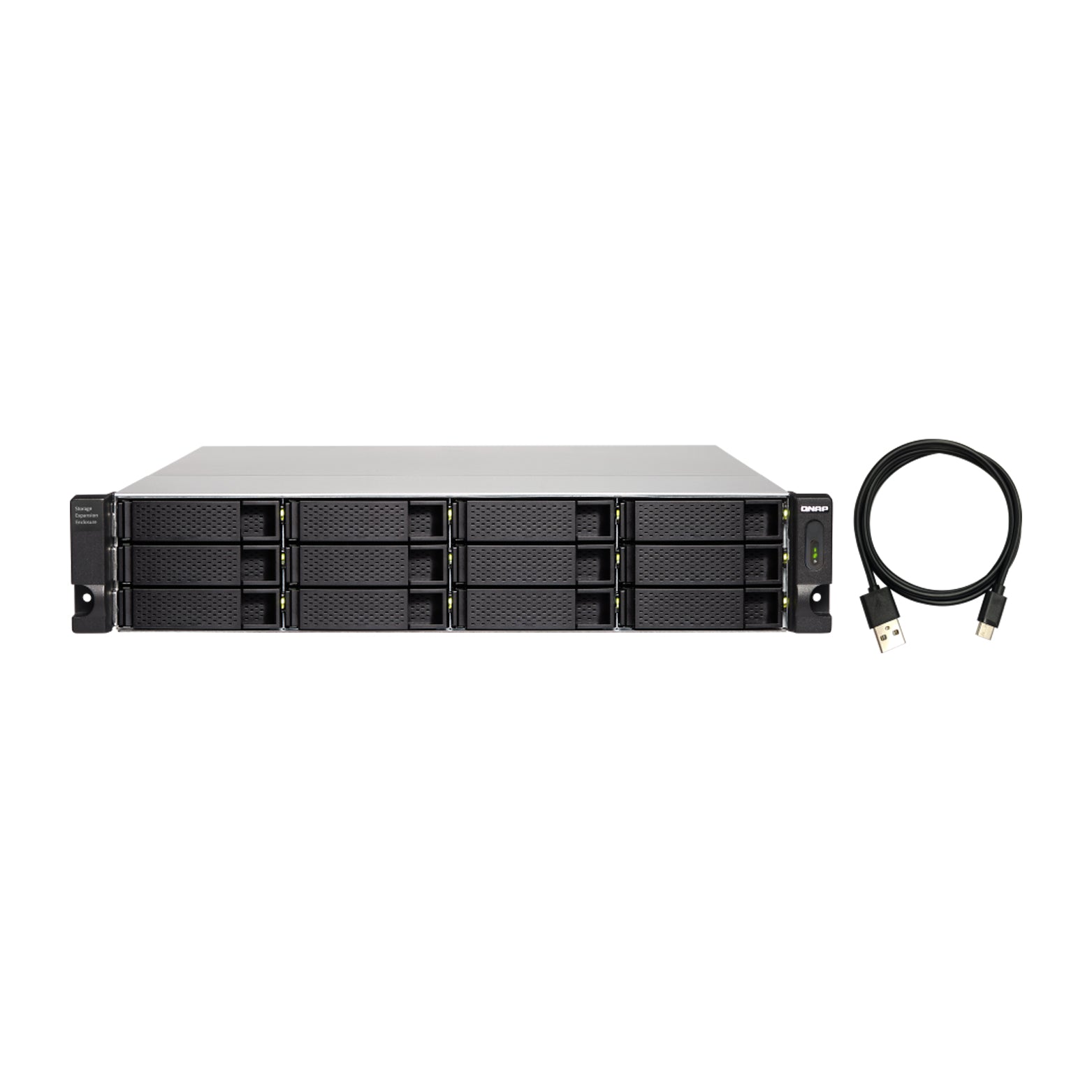

The package includes one USB 3.2 Gen 2 Type-C to Type-A cable. Maximum 1M USB cable is recommended.
Cost-effective expansion solution

Provides high capacity and affordability, making it an excellent backup solution for QNAP NAS.
Redundant power supply

250W redundant power supply to ensure maximum system uptime.

Flexible storage configuration and management

The TL-R1200C-RP provides software-controlled configurations for greater management flexibility.

Learn More: Storage & Snapshots

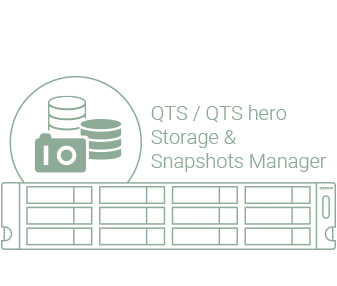

Use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-R1200C-RP as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-R1200C-RP, you can easily expand storage capacity.

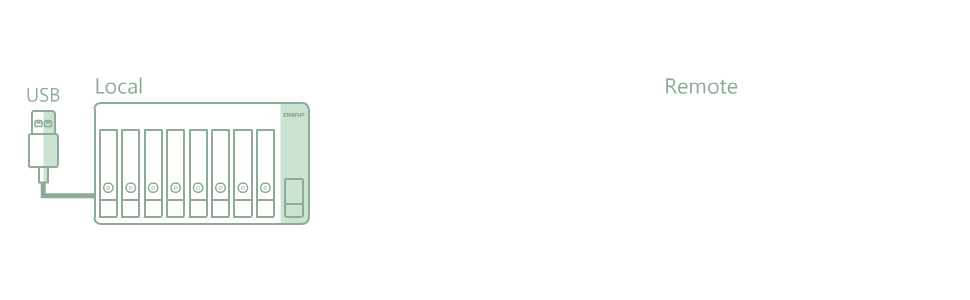

JBOD migration speeds up remote file transfers

Migrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-R1200C-RP supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-R1200C-RP to another place and connect it with the computer or NAS to experience the device’s simple plug and play feature and fast data migration.

Note: If you have set up the software RAID configuration, the TL-R1200C-RP migration only supports hosts running on the same operating system.

Use TL-R1200C-RP as a high-capacity disk drive reader by setting up single disk mode

You can treat each disk in your TL-R1200C-RP as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into the TL-R1200C-RP empty drive slot. After that, you can install the disk that reached full data capacity into the TL-R1200C-RP and connect it with a computer or NAS for direct file access.

Note: The operating system of the destination host should support the drive file system for file access. For example, NTFS (for Windows), EXT4 (for Ubuntu or QNAP NAS), exFAT (for Windows, Ubuntu, and QNAP NAS) etc.

Versatile usage scenarios to meet storage expansion needs

The TL-R1200C-RP meets many storage expansion requirements for the home and office. Below is a list of potential usage scenarios:

Scenario 1: Expand your NAS capacity

The TL-R1200C-RP provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-R1200C-RP to their NAS and using the Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-R1200C-RP supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.

Learn More: View the supported NAS List

Connection Type	USB 3.2 Gen 2	USB 3.2 Gen 1	USB 3.2 Gen 1	By device
Drive bays	12	4	5	By device
Supported systems	QNAP QTS/QuTS hero, Windows, Linux etc...	QNAP QTS/QuTS hero, Windows, macOS, Linux etc...	QNAP QTS/QuTS hero	QNAP QTS/QuTS hero, Windows, macOS, Linux etc...
Disk health monitoring	Supported (QNAP QTS/QuTS hero, Windows, Linux)	Supported (QNAP QTS/QuTS hero, Windows, macOS)	Supported	Not Supported
Hardware RAID protection	Not Supported	Supported (QNAP QTS/QuTS hero, Windows, macOS)	Not Supported	Varies by device
Create Storage Pool	Supported (QNAP QTS)	Supported (QNAP QTS)	Supported	Not Supported
RAID migration, capacity expansion	Supported (QNAP QTS/QuTS hero, Windows, Linux)	Not Supported	Supported	Varies by device

Note:
1. The TL-R1200C-RP does not support QNAP NAS models that cannot be updated to QTS 4.4.2 (or later) and the following NAS models: TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U.
2. Drives can only be migrated from one TL USB JBOD to another TL USB JBOD. Files and data stored on drives migrated to or from other JBOD devices will not be recognized.

Scenario 2: External storage for your NAS

You can use the TL-R1200C-RP to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-R1200C-RP and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.

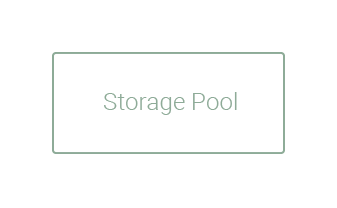

Mode 1: Expand NAS capacity with storage pool mode

You can use Storage & Snapshots Manager in QTS or QuTS hero to configure the RAID storage pool for your TL-R1200C-RP and expand NAS capacity.

Note: The TL-R1200C-RP can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-R1200C-RP.
Mode 2: Expand your NAS with external storage mode

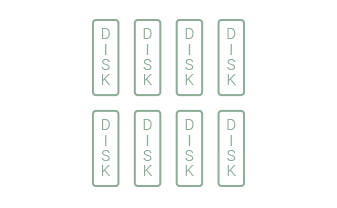

You can treat each disk on your TL-R1200C-RP as an individual storage space and expand your NAS capacity. For example, it will show 8 independent external disks on an 8-bay NAS.

Note: The TL-R1200C-RP supports multiple disk formats, including NTFS (for Windows), EXT4 (for Ubuntu or QNAP NAS), exFAT (for Windows, Ubuntu, and QNAP NAS) etc.

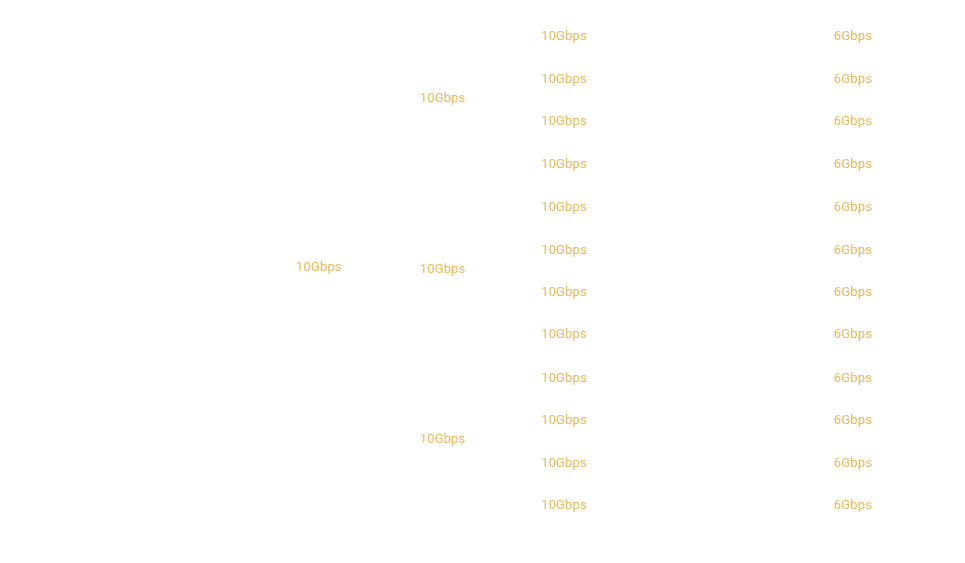

High-speed USB transfer

TThe TL-R1200C-RP features high-speed USB 3.2 Gen 2 Type-C connectivity and built-in USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer. The TL-R1200C-RP not only provides you higher file transfer performance than traditional USB interfaces but offers a more cost-effective option than REXP SAS JBOD.

Note: To achieve UASP, please make sure that your computers and hosts support it.

TL-R1200C-RP

Download Datasheet

JBOD Connection Interface	USB
Drive Bay	12 x 3.5-inch The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility	3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
Hot-swappable
Form Factor	2U Rackmount
Host Interface	1 x USB 3.2 Gen 2 Type-C
LED Indicators	HDD 1-12, Status, Link, Fan error
Buttons	Power switch
Dimensions (HxWxD)	88.6 × 482 × 562.5 mm Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)	13.17 kg
Weight (Gross)	15.22 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	250W(x2) PSU, 100 - 240V
Power Consumption: Operating Mode, Typical	82.26 W Tested with drives fully populated.
Fan Mode Switch	(Auto, high, medium, low)
Fan	2 x 70mm, 12VDC
System Warning	Buzzer
QTS / QuTS hero
Windows
Ubuntu
Standard Warranty	3
