Description

Description

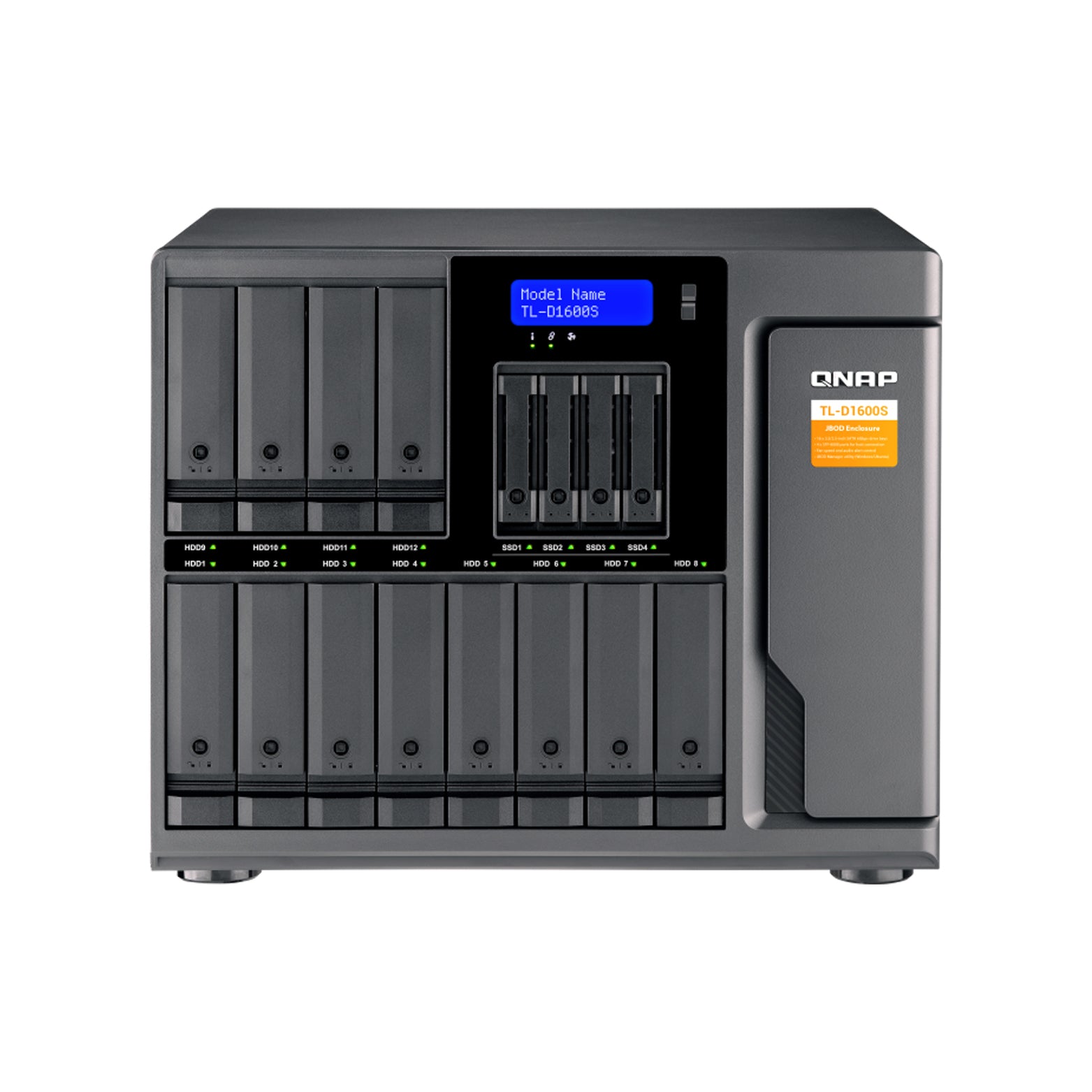

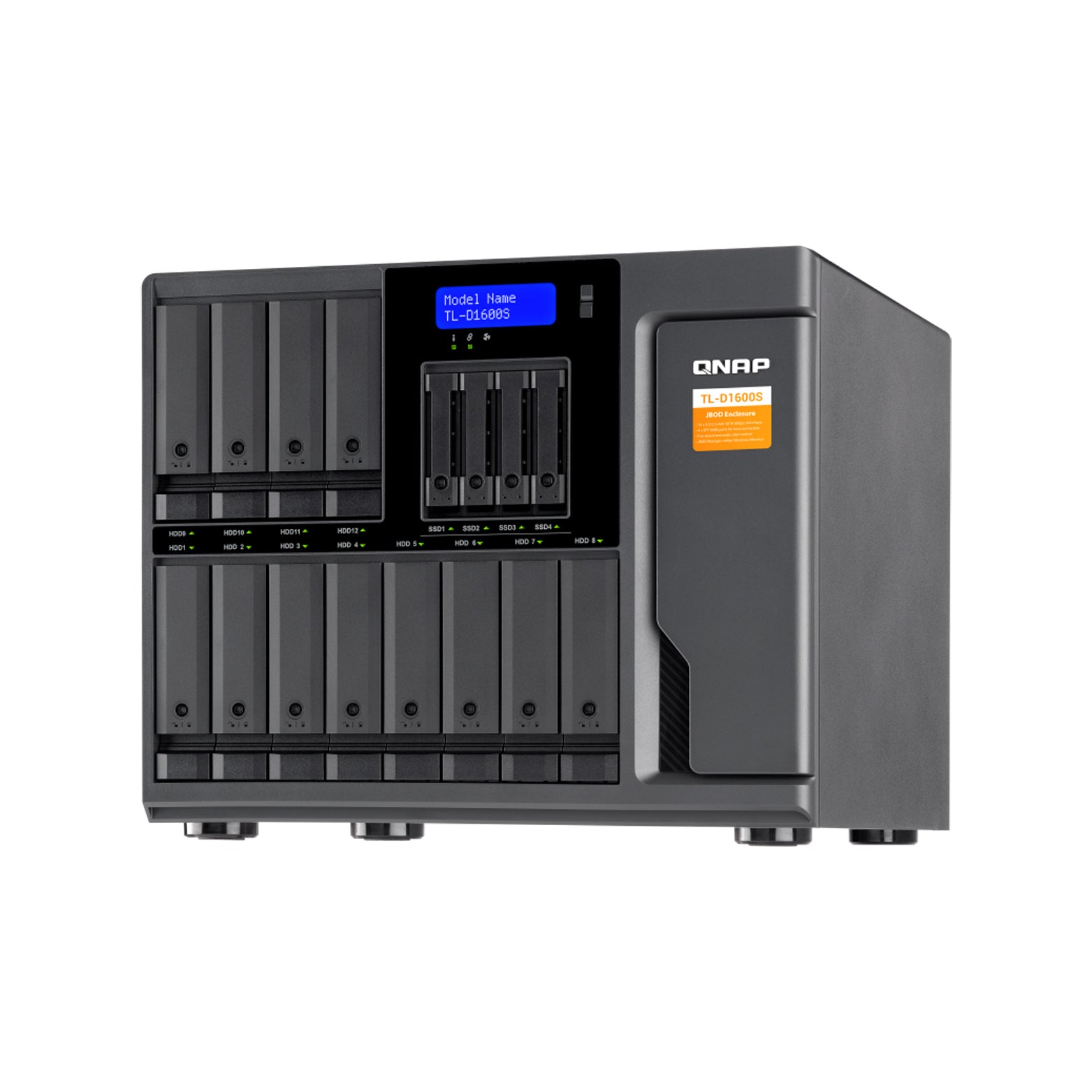

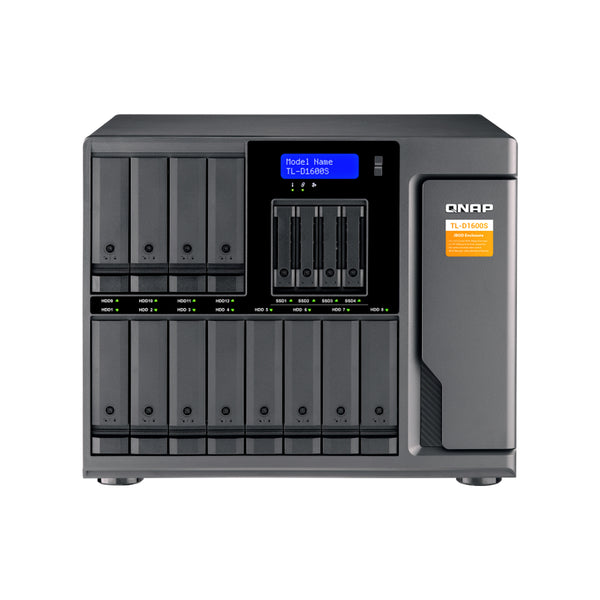

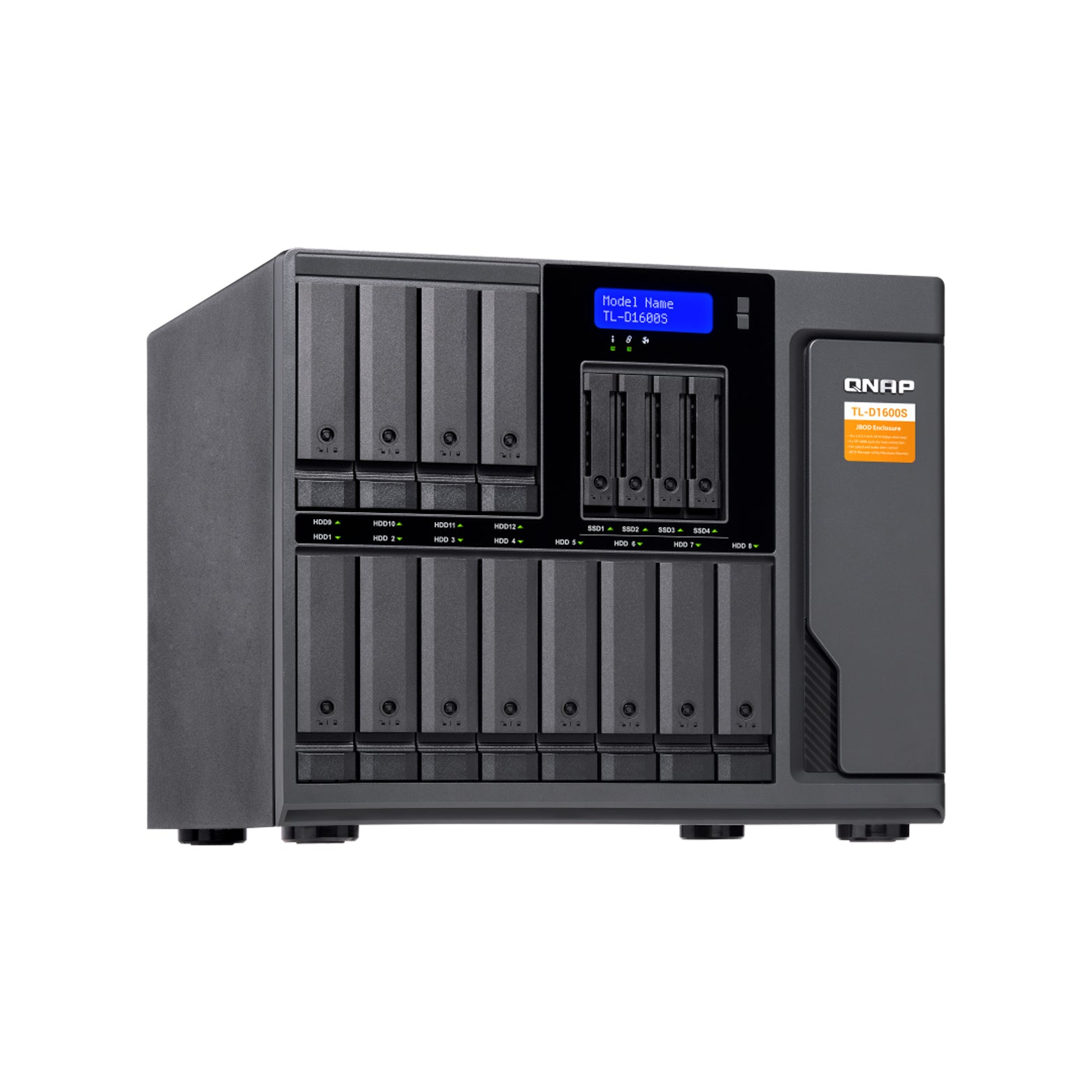

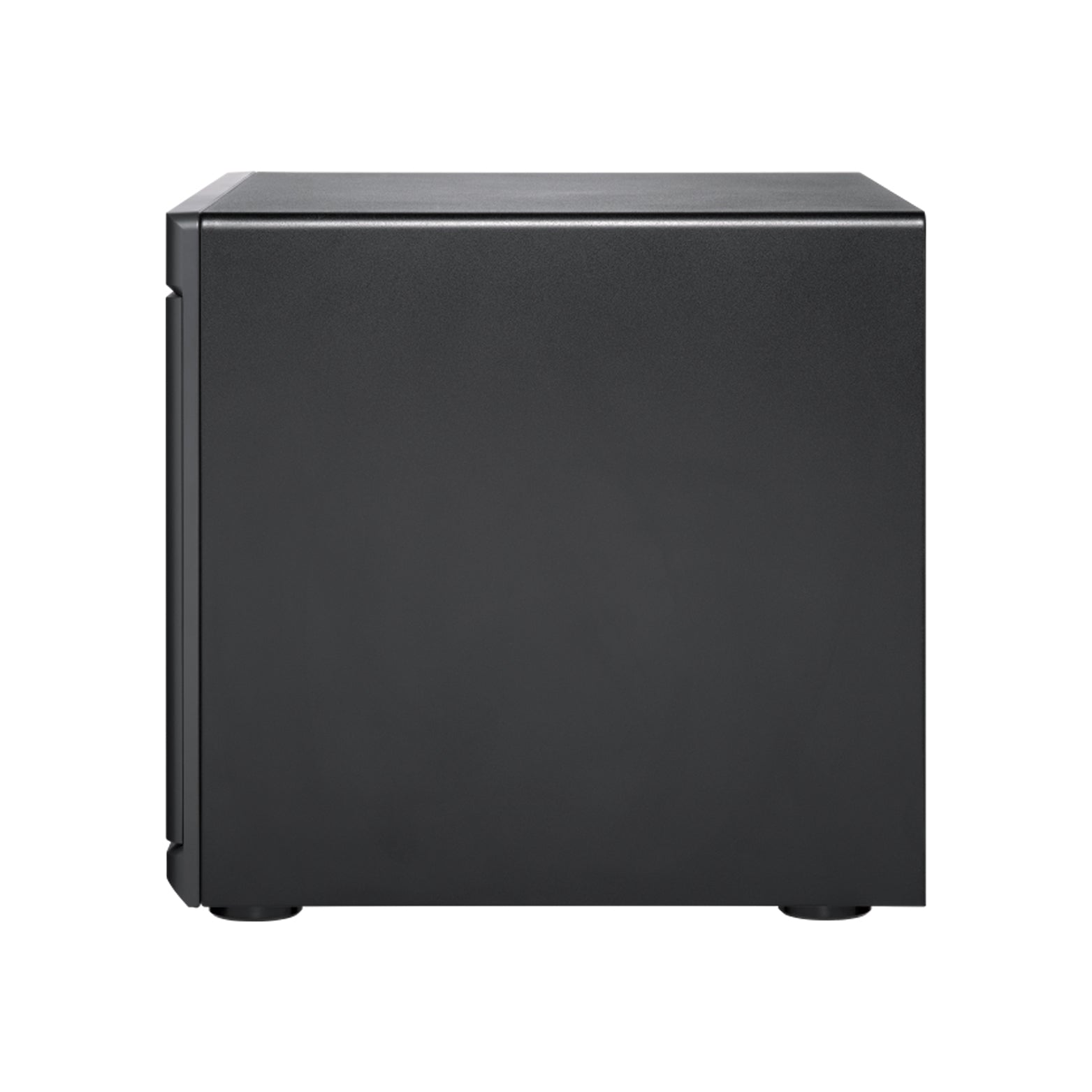

QNAP TL-D1600S 16-Bay JBOD Enclosure

High-performance desktop SATA 6Gbps JBOD storage enclosure

TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

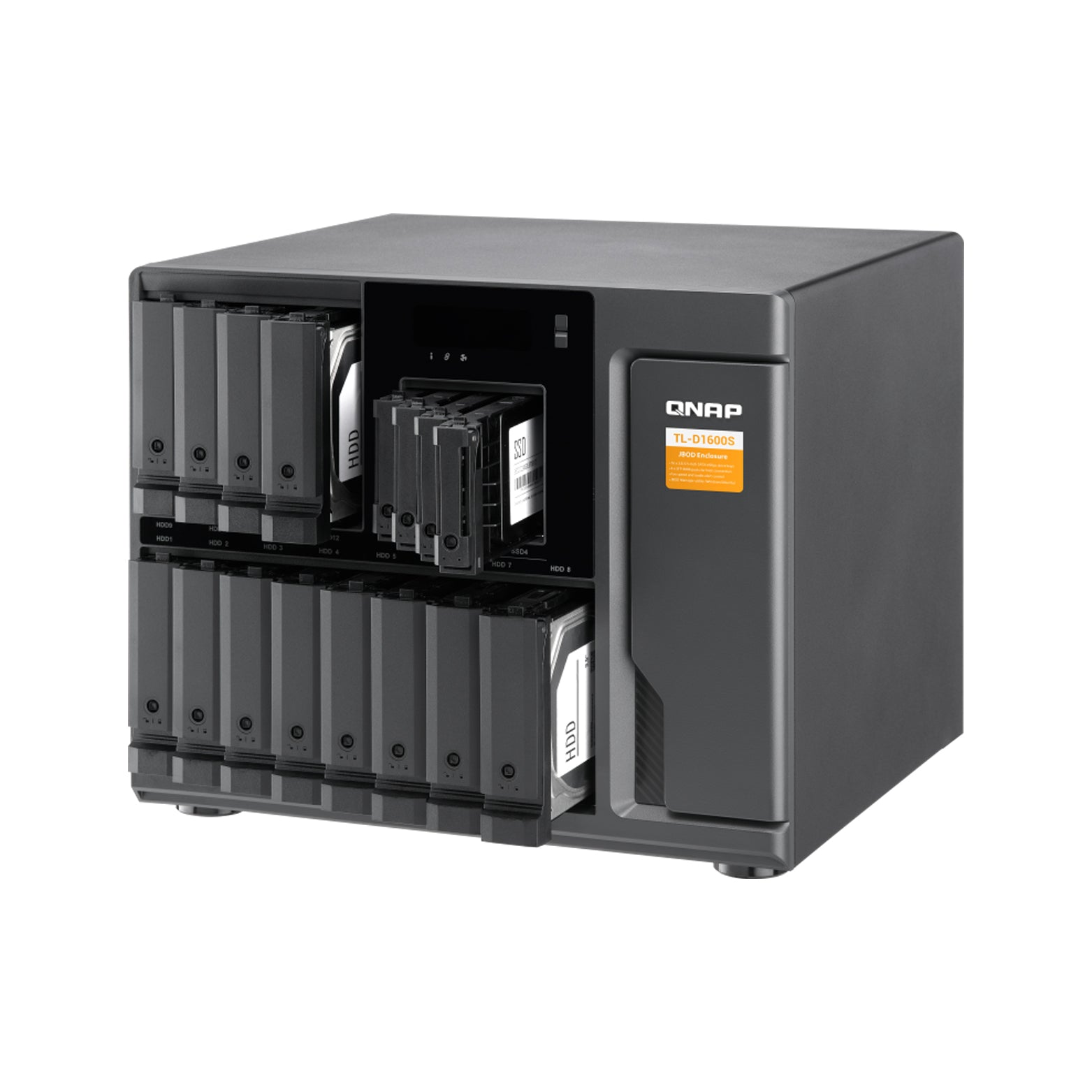

Lockable drive trays

Lockable hard drive trays prevent accidental drive removal.
High-speed connectivity

SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
Flexible storage management

Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.

High-performing TL SATA JBOD

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

Flexible Storage Configuration and Management

The TL-D1600S provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.

Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-D1600S as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D1600S, you can easily expand storage capacity.
The QNAP JBOD Manager is a desktop utility for monitoring the TL-D1600S on Windows® and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.

Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D1600S on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.

Learn More: QNAP JBOD Manager

Notes:
1. You can set up new software RAID groups in [Windows Storage Spaces] in Windows 8/10/11 (or later versions).
2. Windows Server 2012 R2 (or later version) users can set up new software RAID groups in [Server Manager].
3. Ubuntu users need to pass commands into [mdadm] to set up new software RAID groups.
4. Does not support macOS.

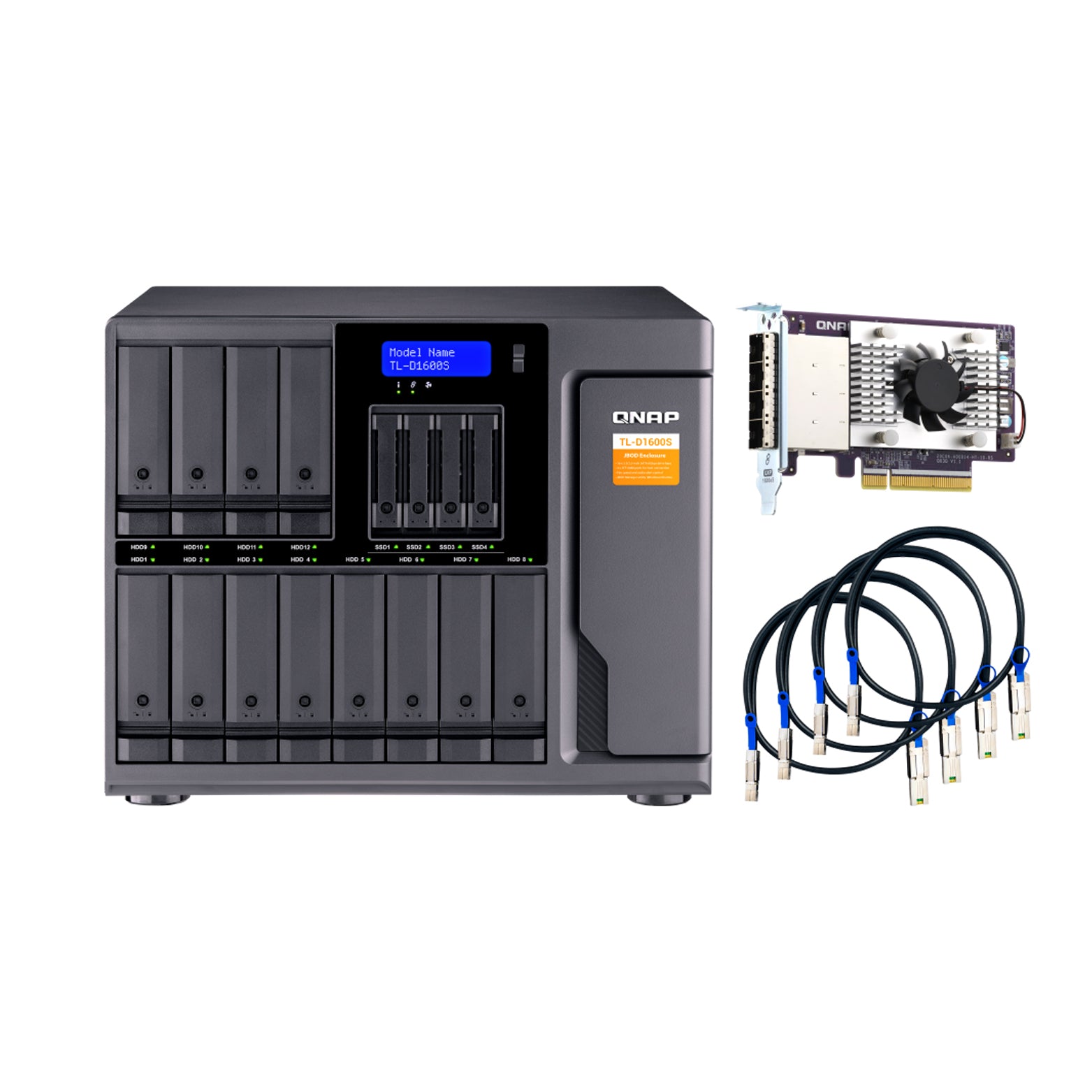

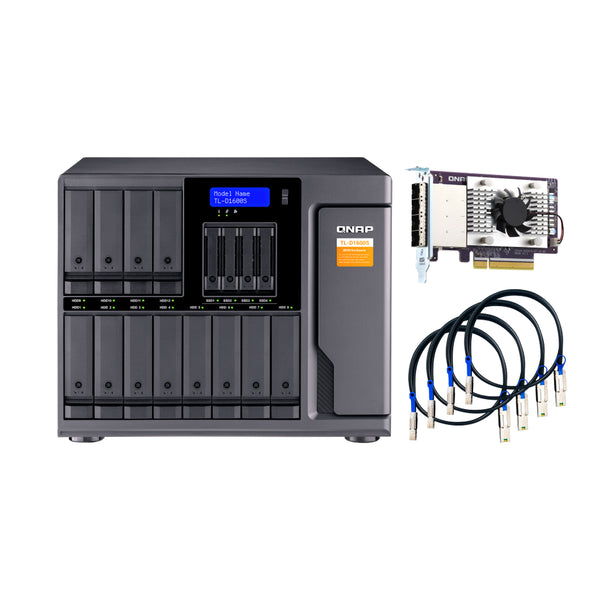

Flexibly Expand Connectivity with QXP PCIe Cards

Install an exclusive QXP PCIe card onto your QNAP NAS, Windows® or Ubuntu® PC to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable , for easy and flexible storage expansion.

SAS/SATA 6Gb/s external cables

1-meter (3.28 ft.) SFF-8644 to SFF-8088 cable

• For QXP-1600eS-A1164, QXP-1600eS PCIe SATA card
• Support SATA 6Gb/s and SAS 6Gb/s
• Compatible with third-party SAS 6Gb/s JBOD products

Order number: CAB-SAS10M-8644-8088
1-meter (3.28 ft.) SFF-8088 to SFF-8088 cable

• For QXP-400eS-A1164 and QXP-800eS-A1164 PCIe SATA cards
• Support SATA 6Gb/s and SAS 6Gb/s
• Compatible with third-party SAS 6Gb/s JBOD products

*Order number: CAB-SAS10M-8088

Versatile usage scenarios to meet storage expansion needs

The TL-D1600S meets many storage expansion requirements for the home and office. Below is a list of potential application scenarios:

Scenario 1: Expand your NAS capacity

The TL-D1600S provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-D1600S to their NAS and using Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-D1600S supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.

Connection Type	SATA	USB 3.2 Gen 1	By device
Drive bays	16	4	By device
Supported systems	QNAP QTS/QuTS hero, Windows, Linux etc...	QNAP QTS/QuTS hero, Windows, Linux etc...	QNAP QTS/QuTS hero, Windows, Linux etc...
Disk health monitoring	Supported (QNAP QTS/QuTS hero, Windows, Linux)	Supported (QNAP QTS/QuTS hero, Windows)	Not Supported
Hardware RAID protection	Not Supported	Supported (QNAP QTS/QuTS hero, Windows)	Varies by device
Create Storage Pool	Supported (QNAP QTS)	Supported (QNAP QTS)	Not Supported
RAID migration, capacity expansion	Supported (QNAP QTS/QuTS hero, Windows, Linux)	Not Supported	Varies by device

Note:
1. The TL-D1600S does not support QNAP NAS models that cannot be updated to QTS 4.4.2 (or later) and the following NAS models: TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U.
2. Drives can only be migrated from one TL USB JBOD to another TL USB JBOD. Files and data stored on drives migrated to or from other JBOD devices will not be recognized.

Scenario 2: External storage for your NAS

You can use the TL-D1600S to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-D1600S and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.

Mode 1: Expand NAS capacity by storage pool mode

You can use Storage & Snapshots Manager in QTS or QuTS hero to configure the RAID storage pool for your TL-D1600S and expand NAS capacity.

Note: The TL-D1600S can only be used as an individual storage pool or volume on the NAS. Its storage pool or volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D1600S.
Mode 2: Expand your NAS by external storage mode

You can treat each disk on your TL-D1600S as an individual storage space and expand your NAS capacity. For example, it will show 8 independent external disks on an 8-bay NAS.

Note: The TL-D1600S supports multiple disk formats, including NTFS (for Windows), HFS+ (for Mac), EXT4 (for Ubuntu or QNAP NAS), exFAT (for Windows, Mac, Ubuntu, and QNAP NAS) etc.

Scenario 3: Expand the storage space of your Windows® and Ubuntu® computers

You can use your TL-D1600S to expand the storage space of Windows® and Ubuntu® computers. You can set up the RAID configuration of your TL-D1600S to further secure data protection. Moreover, you can also use the single disk mode and format with exFAT file system for more convenient access and sharing of files between Windows® and Ubuntu® computers.

Note:
1. The QNAP JBOD Manager supports Windows 8/10/11 (or later versions), Windows Server 2012 R2 (or later versions), Ubuntu 18.04/ 20.04 LTS (or later versions).
2. Because Windows® and Ubuntu® operating systems are incompatible, the TL-D1600S does not support cross-platform sharing after the RAID configuration setup.

Mode 1: RAID configuration mode

You can obtain data protection by building a software RAID 0, RAID 1, and RAID 5 volume with native utility in your Windows® and Ubuntu® computers, and use the QNAP JBOD Manager to monitor the TL-D1600S status information.
Mode 2: Single disk mode

You can format hard drives with the exFAT file system while accessing and sharing files between Windows® and Ubuntu® computers.

Note: Your QNAP NAS can also use the exFAT file system by buying the exFAT driver license from QNAP Software Store.

Scenario 4: Third-party hardware RAID card for advanced protection

You can install third-party hardware RAID cards on your TL-D1600S for advanced hardware RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60 protection and use Windows® utility software to manage your TL-D1600S.

Function	MRAID	MegaRAID Storage Manager	Storage Manager	RAID Management
Brand	Areca	Broadcom	Microsemi	HighPoint
Model	ARC-1883x	MegaRAID SAS 9286-8e (6 Gb/s) MegaRAID SAS 9286-8e (12 Gb/s)	SmartRAID 3154-8e	RocketRAID 3742A

TL-D1600S

JBOD Connection Interface	SATA
Drive Bay	12 x 3.5-inch + 4 x 2.5-inch The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility	3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives 2.5-inch bays: 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
Hot-swappable
Form Factor	Tower

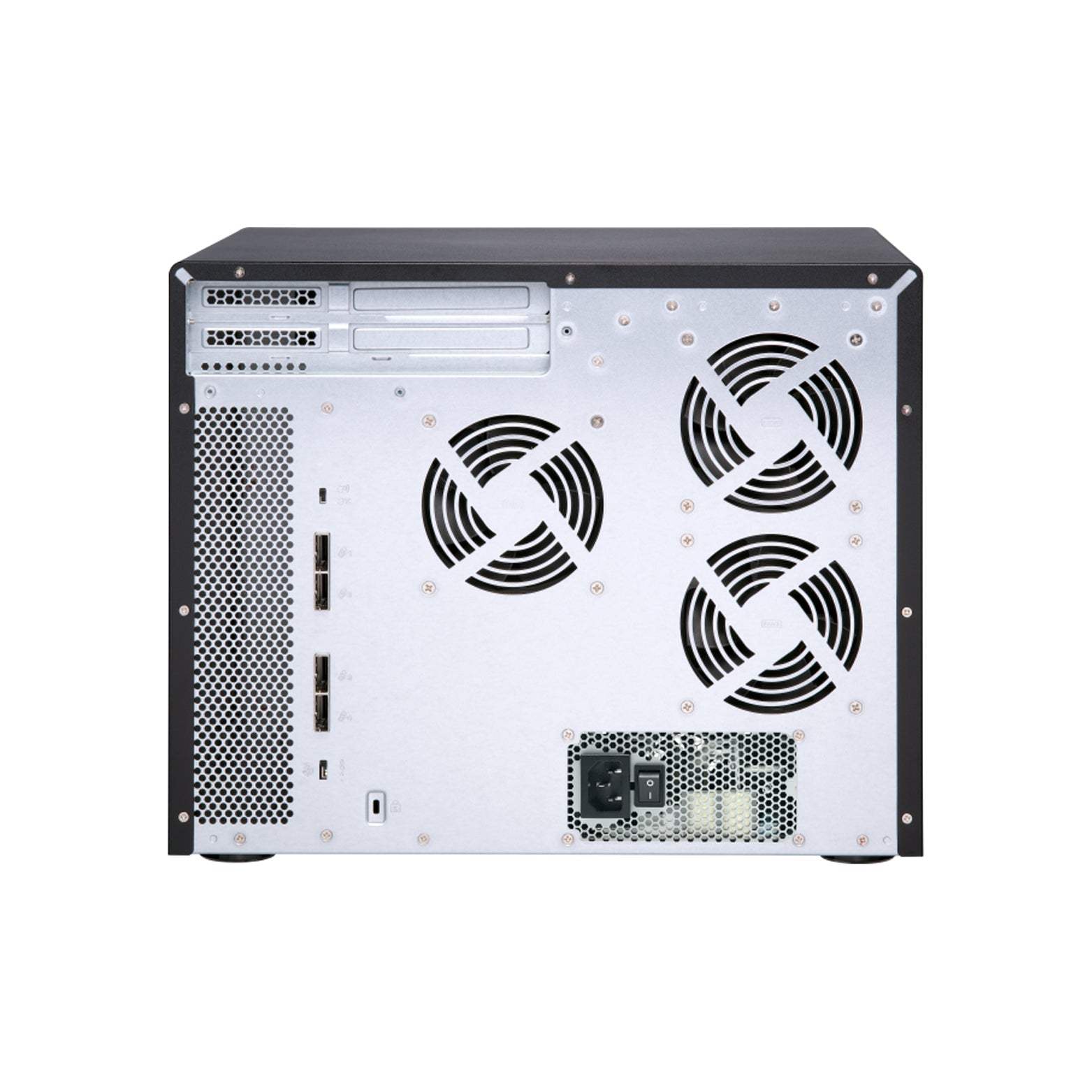

Host Interface	4 x SFF-8088
LED Indicators	HDD 1-16, Status, Link, Fan error
LCD Display/ Button
Buttons	Power switch
Dimensions (HxWxD)	303.84 × 369.89 × 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net)	13.49 kg
Weight (Gross)	14.87 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	250W PSU, 100 - 240V
Power Consumption: Operating Mode, Typical	93.66 W Tested with drives fully populated.
Fan Mode Switch	(Auto, high, medium, low)
Fan	3 x 92mm, 12VDC
System Warning	Buzzer
Kensington Security Slot
QTS / QuTS hero
Windows
Ubuntu
Standard Warranty	2
