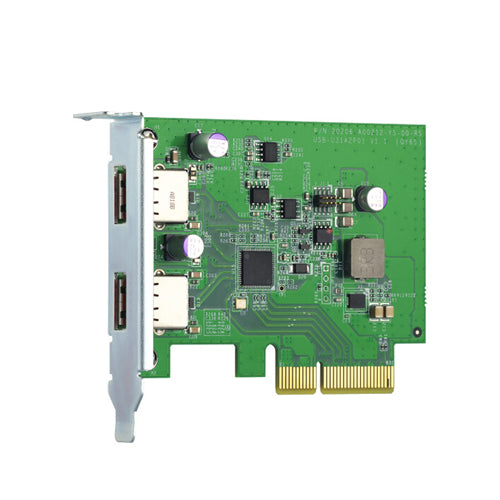

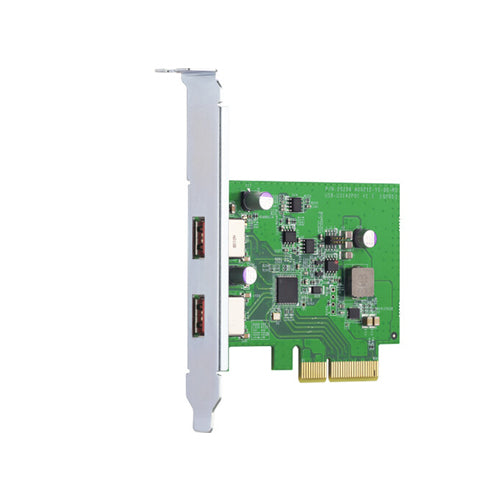

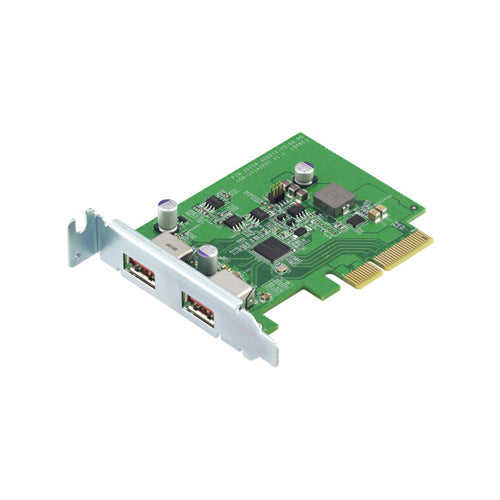

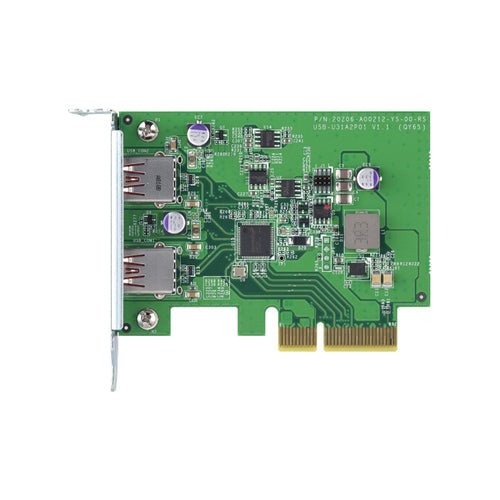

QNAP QXP-10G2U3A 2-Port USB 3.2 Gen 2 Type-A PCIe Card - QXP-10G2U3A
Zoom
Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.
QNAP QXP-10G2U3A 2-Port USB 3.2 Gen 2 Type-A PCIe Card - QXP-10G2U3A
Up to 10Gbps Speeds for Fast File Transfer and Storage Expansion
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps – double that of USB 3.2 Gen 1 – to greatly boost data transfer speeds. With two ports, the QNAP USB 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB 3.2 Gen 2 devices to accelerate file transfers and backup. The QNAP USB 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or Windows®/Ubuntu® PC.
1
Dual-port USB 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds and are backwards compatible with previous-generation USB devices.
2
Supports USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer.
3
Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption.
4
Supports overcurrent detection and short circuit protection.
5
Supports Windows 8.x / 10 (32/64-bit) and Ubuntu desktop 20.04 LTS. No driver is required.
Experience USB 3.2 Gen 2 SuperSpeed+ up to 10Gbps
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps – double that of USB 3.2 Gen 1, and 20 times that of USB 2.0.
Theoretical Performance
USB 2.0
0.48 Gbps
USB 3.2 Gen 1
5 Gbps
USB 3.2 Gen 2
10 Gbps
Expand your Storage by Connecting to a QNAP USB JBOD
By using a QNAP USB 3.2 Gen 2 Expansion Card in your QNAP NAS or PC, you can connect a QNAP USB JBOD to back up and expand your storage. The USB 3.2 Gen 2 Expansion Card supports both QNAP NAS and Windows®/Ubuntu® PCs without requiring drivers. You can configure RAID and monitor disk health using the QTS/QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on your computer.
NAS Expansion: Install the QNAP USB 3.2 Gen 2 Expansion Card and connect to a QNAP USB JBOD device, adding additional storage capacity with up to 10Gbps transmission speeds.
PC Expansion: Install the QNAP USB 3.2 Gen 2 Expansion Card and connect to a QNAP USB JBOD device to take advantage of a 10Gbps DAS solution.
USB 3.2 Gen 2 dual-port PCIe expansion card
Standard Warranty
1 year
Connectors
2 x USB Type-A
USB Host controller
ASMedia ASM3142
PCIe and Lanes
PCIe Gen2 x 2
Bracket
Low-profile pre-installed. Low-profile and Full-height are included.
Form Factor
Low-profile 89.65 x 68.9 x 14 mm (Without bracket)
Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.
