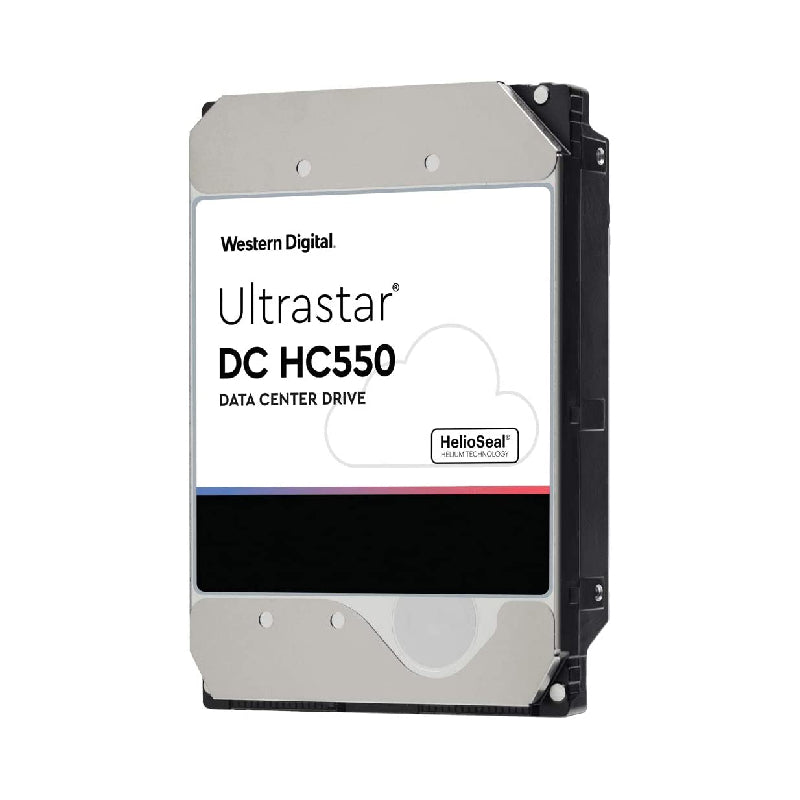

WD 18TB UltraStar DC HC550 7200 rpm SAS-3 3.5" Internal HDD - 0F38353

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 46 visitor right now

Sku: 0F38353

Product type: Enterprise Hard Drive

Vendor: wd

WD 18TB UltraStar DC HC550 7200 rpm SAS-3 3.5" Internal HDD - 0F38353

Key Features

18TB Storage Capacity

3.5" Form Factor

SAS-3 12 Gb/s Interface

512MB Cache

7200 rpm

Up to 269 MB/s Data Transfer Speeds

2.5 Million Hour MTBF

HelioSeal Technology

600,000 Load/Unload Cycles

0.35% Annualized Failure Rate (AFR)

General Features

Total Cost of Ownership (TCO) Drives the Data Center Architecture

Data center decisions are driven by TCO. Higher capacity hard drives play a role in reducing TCO. An 18TB data center HDD provides 29% more capacity than a 14TB HDD in the same form factor. Higher capacity HDDs enable data centers to lower CapEx by reducing hardware- and system-level costs when compared to lower capacity drives. Helium-sealed, low power, high-reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs requires 22% fewer racks while consuming 21% less power per TB at idle.

Raising the Bar with Advanced Technologies

The Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. Its 18TB capacity is achieved by combining technologies that improve areal density with technologies that improve performance and reduce power consumption. It uses Energy-Assisted Magnetic Recording (EAMR) technology to improve writability and increase areal density, while a Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density. Lastly, this drive uses HelioSeal technology, which is now in its 6th generation.

Trusted Reliability and Quality for Data at Scale

With its massive capacity and 2.5 million hour MTBF reliability rating, the UltraStar DC HC550 is made for object storage implementations. Object storage systems with erasure coding provide better data durability compared to RAID systems, given their tolerance for simultaneous error conditions. The DC HC550 offers security and encryption options to help protect data from unauthorized use, including SED models in both SATA and SAS. A SED-FIPS will be available in SAS configuration.

WD HC550 Internal HDD Specs

Key Specs

Total Installed Capacity	18 TB
Drive Type	SAS III / 3.5" HDD (7200 rpm)
Read Speed	Maximum: 269 MB/s
Write Speed	Maximum: 269 MB/s

Drive Type	SAS III / 3.5" HDD (7200 rpm)
Read Speed	Maximum: 269 MB/s
Write Speed	Maximum: 269 MB/s
Encryption Support	No
Mean Time Between Failures (MTBF)	2.5 Million Hours
Endurance (Total Bytes Written)	550 TB
Power Draw	8.8 W (Active) 5.8 W (Idle) 0.32 W (Standby)

Environmental

Operating Temperature	41 to 140°F / 5 to 60°C
Storage Temperature	-40 to 158°F / -40 to 70°C
Operating Shock	50 G / 2.0 ms

General

Dimensions	5.8 x 4 x 1" / 147.32 x 101.6 x 25.4 mm
Weight	1.52 lb / 690 g

Packaging Info

Package Weight	1.785 lb
Box Dimensions (LxWxH)	8.8 x 6.1 x 2.9"
