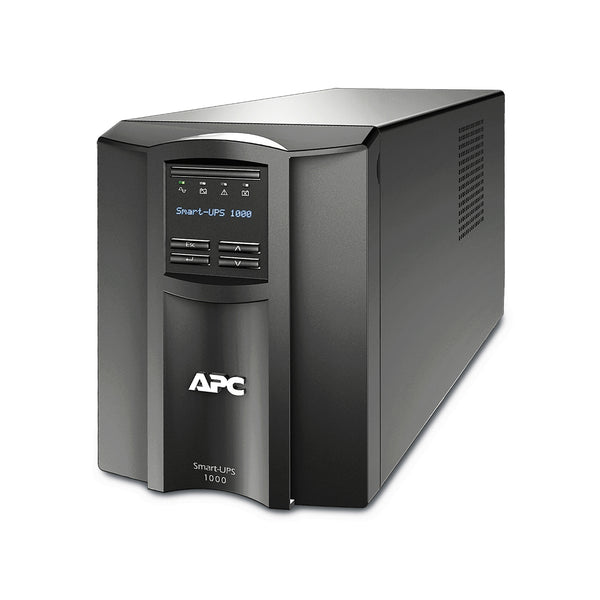

APC Smart-UPS, Line Interactive, 1000VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT1000IC
- 1000VA/700W line interactive pure sine wave tower UPS
- Ideal for servers, storage, network closets, business VoIP & desktops, retail POS
- Automatic Voltage Regulation helps correct utility voltage
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.
The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions.

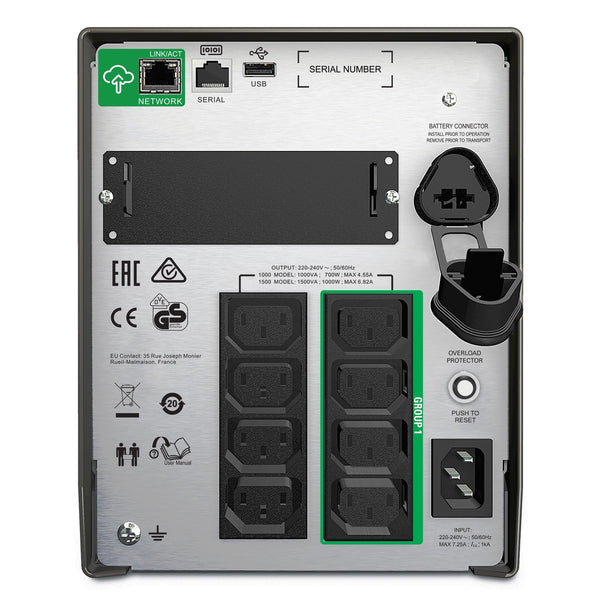

It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.
It offers cloud-based remote power monitoring,
UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions.
It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.
The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
It provides surge protection against lightning strikes, power sags,
brownouts and surges.
The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty.
It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Overview | Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Lead time | Usually Ships within 2 Weeks |
Main | | |
|
|
| Product or component type | Uninterruptible power supply (UPS) |
Complementary | Communication port type | SmartConnect Ethernet port
SmartSlot |
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Mounting mode | Tower |
| UPS connectivity | Serial port
USB port
SmartConnect port
Available expansion slot |
| Battery type | Lead-acid internal included |
Batteries & Runtime | |
| |
| Battery type | Lead-acid battery |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | |
| Battery charger power | 88 W rated |
General | Provided equipment | Cat 5 Ethernet cable
Installation guide
USB cable |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
Physical | Colour | Black |
| Height | 219 mm |
| Width | 171 mm |
| Depth | 439 mm |
| Net weight | 19.4 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
Input | Main Input Voltage | 230 V AC 1 phase |
| Other Input Voltage | 220 V
240 V |
| Input Connection Type | IEC 320 C14 |
| Input voltage limits | 151...302 V adjustable
160...286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
Output | Main Output Voltage | 230 V AC 1 phase |
| Other Output Voltage | 220 V
240 V |
| Rated power in W | 700 W |
| rated power in VA | 1000 VA |
| output connection type | 8 IEC 320 C13
2 IEC Jumpers |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
Conformance | Product certifications | CE
EAC
RCM
VDE
UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018 |
Environmental | Acoustic level | 41 dBA |
| Heat dissipation | 100 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
Communications & Management | Control panel | Multifunction LCD status and control console |
| Emergency power off | Optional |
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering | Surge energy rate | 459 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Packing Units | Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 37.600 cm |
| Package 1 Width | 59.500 cm |
| Package 1 Length | 32.800 cm |
| Package 1 Weight | 22.770 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 112.500 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 216.525 kg |
Contractual warranty | Warranty (in months) | 36 UPS|24 Battery |
