| CPU | CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2-core 2.6 (base) / 3.1 (turbo) GHz |
| Hardware Encryption Engine (AES-NI) | |
| Memory | System Memory | 2 GB DDR4 ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
| Storage | Drive Bays | 4 |
| Compatible Drive Type* (See all supported drives) | - 3.5" SATA HDD
- 2.5" SATA SSD
|
| Hot Swappable Drive* | |
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. |

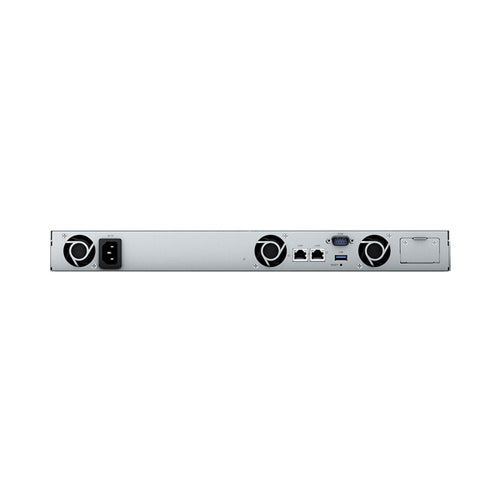

| External Ports | RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 1 |
| Notes | - This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
|
| PCIe | PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
| File System | Internal Drives | |
| External Drives | - Btrfs
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT
|
| Appearance | Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 478 mm x 327.5 mm |
| Weight | 4.38 kg |
| Rack Installation Support* | - 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
- 2-post 19" rack (direct mounting)
|
| Notes | The rail kit is sold separately |
| Others | System Fan | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode | - Full-Speed Mode
- Cool Mode
- Quiet Mode
|
| Power Recovery | |
| Noise Level* | 28.5 dB(A) |
| Scheduled Power On / Off | |
| Wake on LAN / WAN | |
| Power Supply Unit / Adapter | 100 W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 37.93 W (Access)
13.43 W (HDD Hibernation) |
| British Thermal Unit | 129.42 BTU/hr (Access)
45.83 BTU/hr (HDD Hibernation) |
| Notes | - For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
|
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | - FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
|
| Warranty | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus |
| Notes | - Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
- The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
|
| Environment | RoHS Compliant |
| Packaging Content | - Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 1
- Quick Installation Guide X 1
|
| Optional Accessories | |
|
