Processors
Processor name: Intel® Xeon® Silver 4510 Processor (12 cores, 2.40 GHz, 30 MB L3, 150 W)
Number of processors: 1 processor included
Available processor core: 12 cores
Processor speed 2.40 GHz
30MB L3 processor cache
Server memory
HPE DDR5 Smart Memory Type
64GB R-DIMM memory included
Server Accelerator
Optional Accelerators : Supports NVIDIA L40/A16/L4/RTX 4000 Ada graphics accelerator for HPE, configuration pending
Server cooling
System Fan Features: By default, it comes with 3 standard, non-hot-pluggable fans. The optional second CPU fan kit (P47902-B21) and redundant fan kit (P47219-B21) provide advanced cooling and redundancy features for higher-end configurations.
Server extensions
Expansion slots : Default with 4 x 8 PCIe 5.0 slots. Refer to the technical specifications for more details.

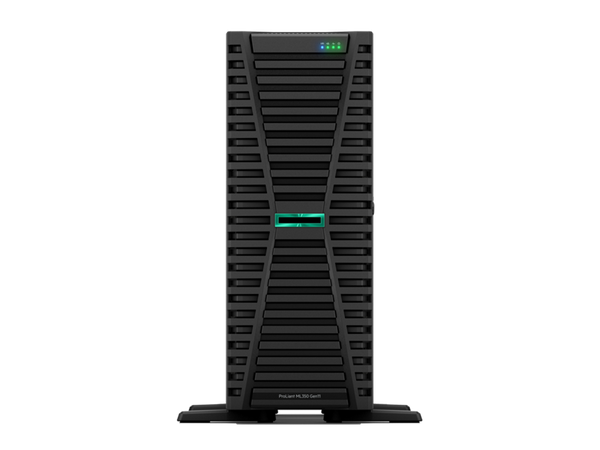

Server form factor

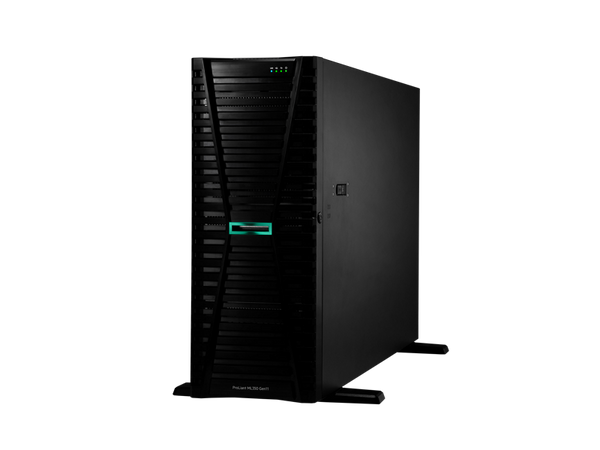

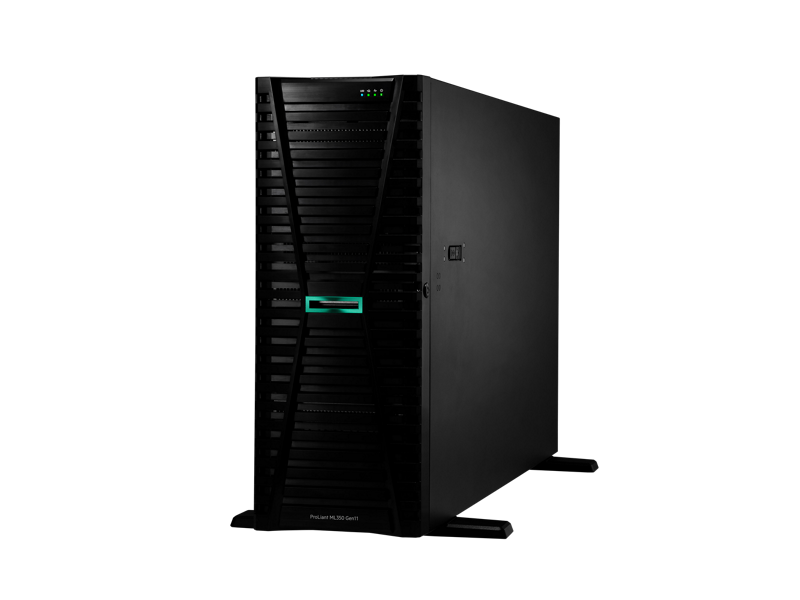

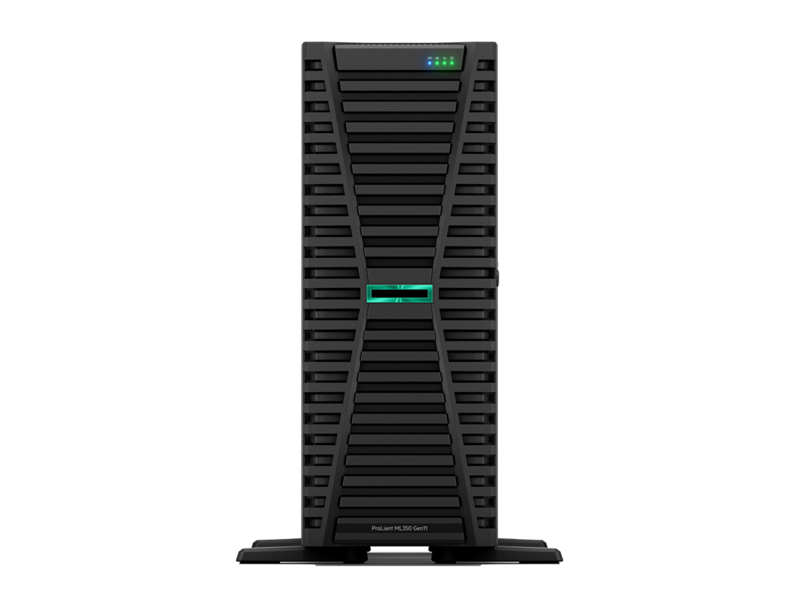

4U Tower Format
Server controllers
Broadcom BCM5719 Ethernet 1Gb 4-Port BASE-T OCP3 Network Controller Adapter for HPE
Storage Controller HPE MR408i-o Gen11 x8-lane 4GB OCP SPDM Cache
Server hard drives
Included drives: 2 x 960GB SATA SSD bays
Optical drive type: Optional. None are standard.
Server power
Power supply type: 2 x 1000W HPE Titanium flexible-slot, hot-pluggable power kits
Management software
HPE iLO Standard infrastructure management with Intelligent Provisioning (integrated), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) and HPE Compute Ops Management software.
Security
Security : Supports Secure Boot and UEFI Secure Boot. Supports Intel® Software Guard Extensions (SGX). Immutable Silicon Root of Trust Technology. Supports Trusted Platform Module (TPM) 2.0. Features a front panel key lock, intrusion detection cable (included), padlock slot, and Kensington lock slot support.
Guarantee
3/3/3 Warranty : The server warranty includes three years of parts coverage, three years of labor coverage, and three years of on-site technical support. Additional information regarding the worldwide limited warranty and technical support is available at https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us . Additional HPE support and service coverage for your product can be purchased locally. For details on service upgrade availability and cost, see the HPE website at https://www.hpe.com/support .
