Processor
Processor name Intel® Xeon® E-2434 (4 core, 3.40 GHz, 12 MB Intel® Smart Cache, 55W)
Processor number 1 processor included
Processor core available 4 core
Processor speed 3.40 GHz
Processor cache 12 MB Intel® Smart Cache
Server Memory
Memory type HPE DDR5 Standard Memory
Included memory 16 GB (1x16 GB UDIMM, 4800 MT/s)
Server Cooling
System fan features 3x High Performance Fans
Server Expansions
Expansion slots Two maximum, for detailed descriptions refer to the QuickSpecs
Server Form Factor

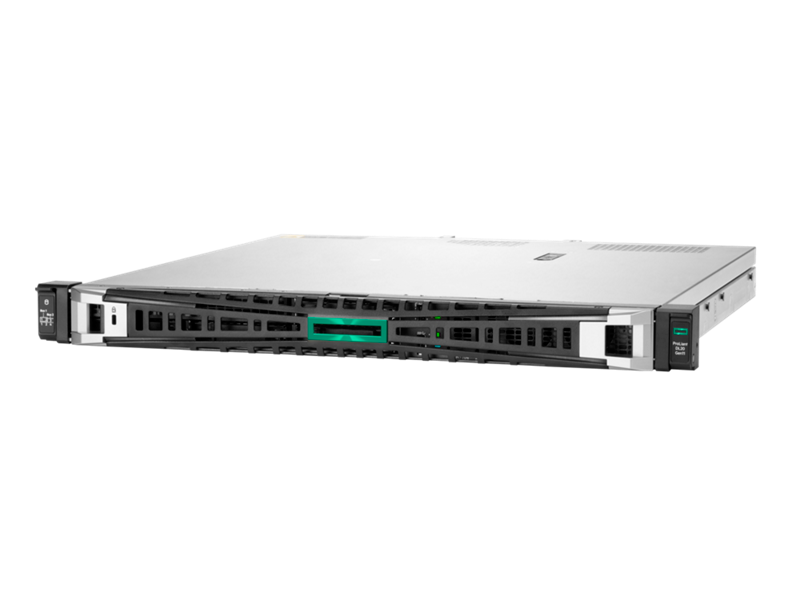

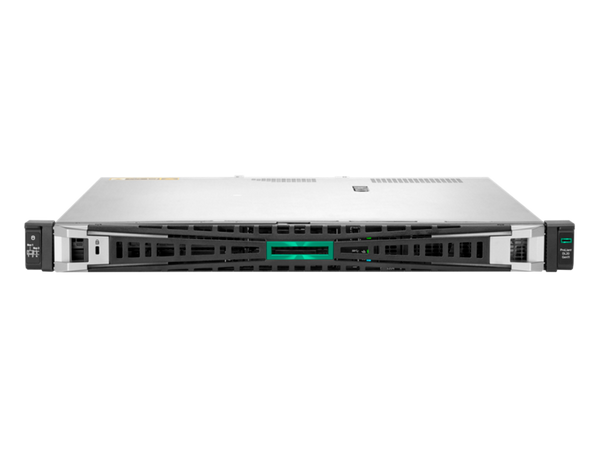

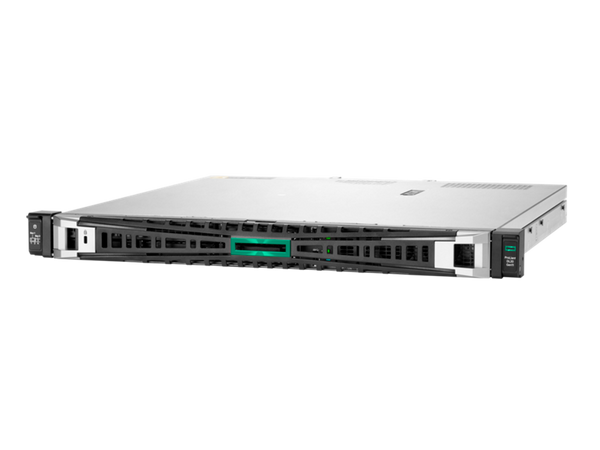

Form factor 1U Rack
Server Controllers
Network controller HPE embedded 1GB 4-port BCM5719 Network Adapter
Storage controller Embedded Intel® VROC SATA (formerly known as Intel® RSTe)
Server Drives

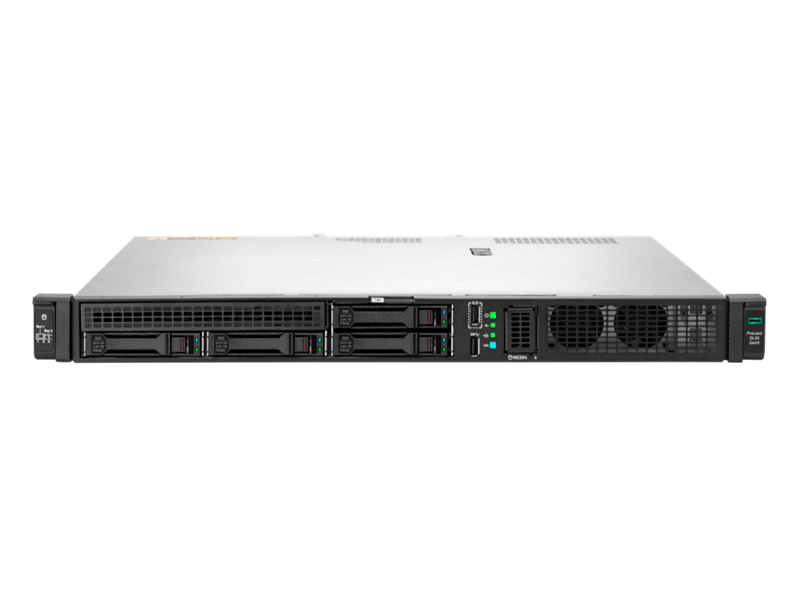

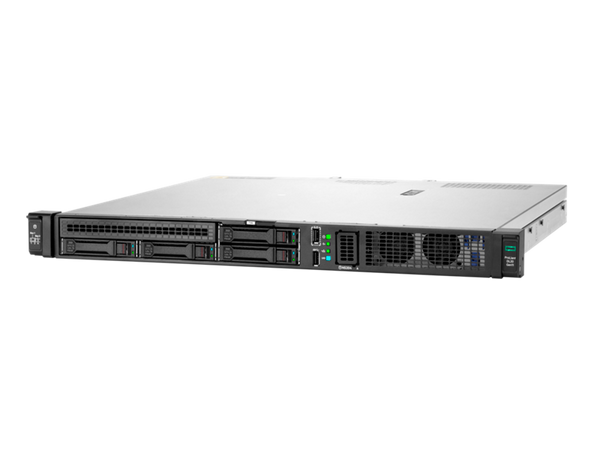

Included drives None ship standard, 2 LFF supported
Optical drive type Optional: DVD-ROM, DVD-RW
Server Power

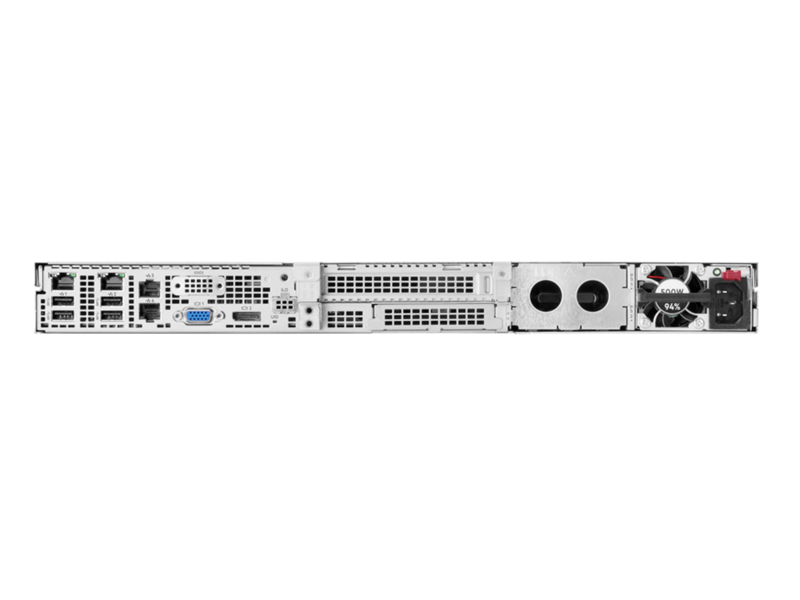

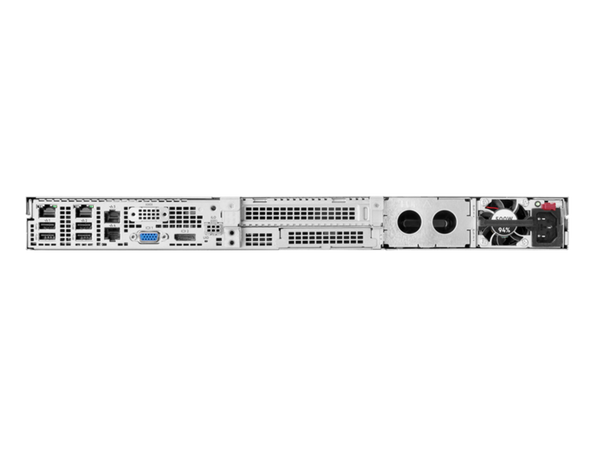

Power supply type 1x HPE ProLiant DL20 Gen10 Plus 290W FIO Power Supply Kit
Management Software
Infrastructure management HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management
Security
Security Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled.
Warranty
Warranty Server warranty includes 3-year parts, 3-year labor, and 3-year on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, visit www.hpe.com/services/support.
