Name: QNAP TS-h1277AXU-RP 12-Bay NAS Enclosure TS-H1277AXU-RP-R7-32G
Brand: qnap
Price: 14933 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 15 visitor right now

Sku: TS-H1277AXU-RP-R7-32G

Product type: RackNAS

Vendor: qnap

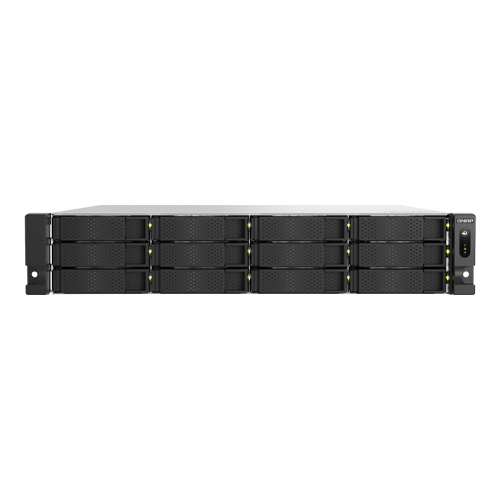

QNAP TS-h1277AXU-RP 12-Bay NAS Enclosure TS-H1277AXU-RP-R7-32G

Key Features

12 x 3.5/2.5" SATA III Drive Bays

2 x M.2 2280 PCIe 5.0 x2 Slots

AMD Ryzen 7 7000 Series 8-Core CPU

32GB of DDR5 RAM

2 x 10GbE | 2 x 2.5GbE

2 x USB-A 3.2 Gen 2 | 2 x PCIe 5.0 x2

RAID 0, 1, 5, 6, 10, 50, 60, and JBOD

AES 256-Bit & AES-NI Volume Encryption

Dual Redundant 550W Power Supplies

QuTS hero or QTS Operating System

TS-h1277AXU-RP-R7-32G

AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz, 32 GB UDIMM DDR5 (1x 32 GB), redundant power supply

New-gen AMD Ryzen™ 7000 Series processors unleash enterprise-level power and potential

Processor

AMD Ryzen™ 7 7000 Series 8-core and 16-thread (up to 5.3 GHz)

Memory

Comes with DDR5 non-ECC RAM as standard, supports up to 128GB (4x 32GB)

AMD AM5 Platform

Zen 4 architecture and 5nm technology with support for DDR5 and M.2 PCIe 5.0

GPU

Built-in AMD Radeon™ Graphics accelerates video processing and graphical computing

M.2 PCIe Gen 5 ultra-fast transfer speed

The TS-h1277AXU-RP comes with two M.2 2280 PCIe Gen 5 slots that allow for installing NVMe SSDs (including WD®, Micron®, Seagate®, Kingston®) to boost NAS performance. PCIe Gen 5 is backwards compatible with PCIe Gen 4 / PCIe Gen 3 for flexible SSD deployment.

SSD caching

Boost IOPS for transferring a huge number of small files by configuring SSD caching with two M.2 SSDs, without occupying any 3.5-inch drive bays.
Power failure protection

Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.

High-speed SSD volume

Create M.2 NVMe SSD storage pools to increase intensive data transfer speed with boosted performance.

TS-h1277AXU-RP-R7-32G Specs:

CPU	AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics
CPU Architecture	64-bit x86
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	32 GB UDIMM DDR5 (1x 32 GB)
Maximum Memory	128 GB (4 x 32 GB)
Memory Slot	4 x UDIMM DDR5 Support optional ECC memory
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot	2 x M.2 2280 PCIe Gen 5 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot	3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
USB 3.2 Gen 2 (10Gbps) Port	2 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor	2U Rackmount
LED Indicators	Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (HxWxD)	88.6 × 432 × 511.2 mm Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net)	13 kg
Weight (Gross)	19 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	550W(x2), 100-240V
Fan	System fan: 3 x 60mm, 12VDC
System Warning	Buzzer
Standard Warranty	5
