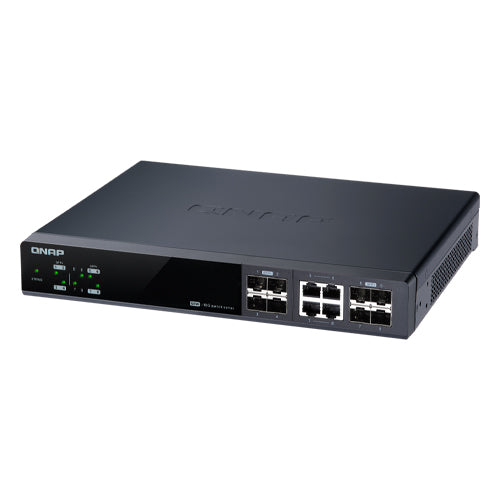

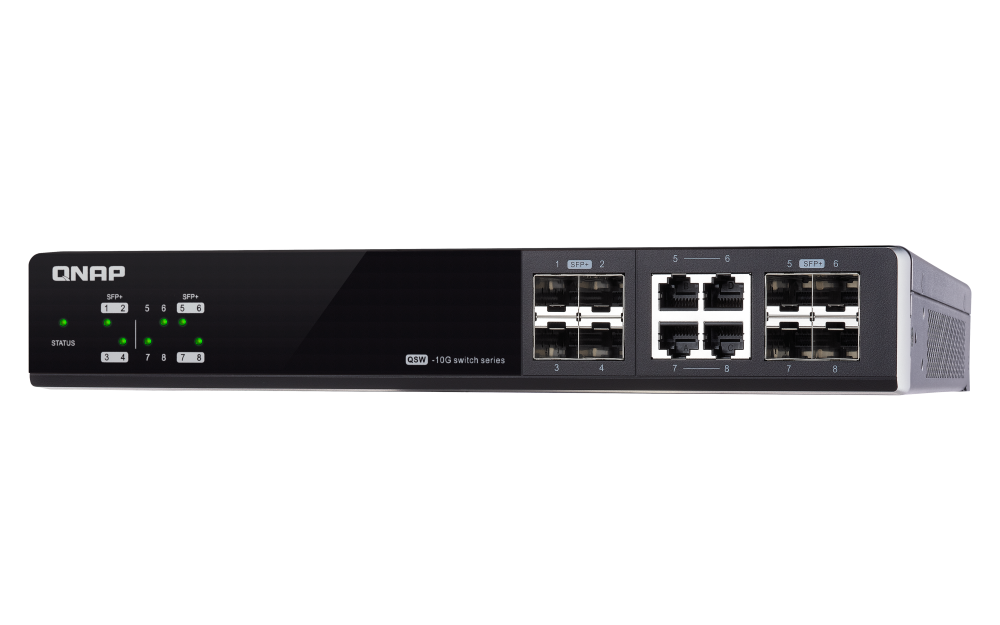

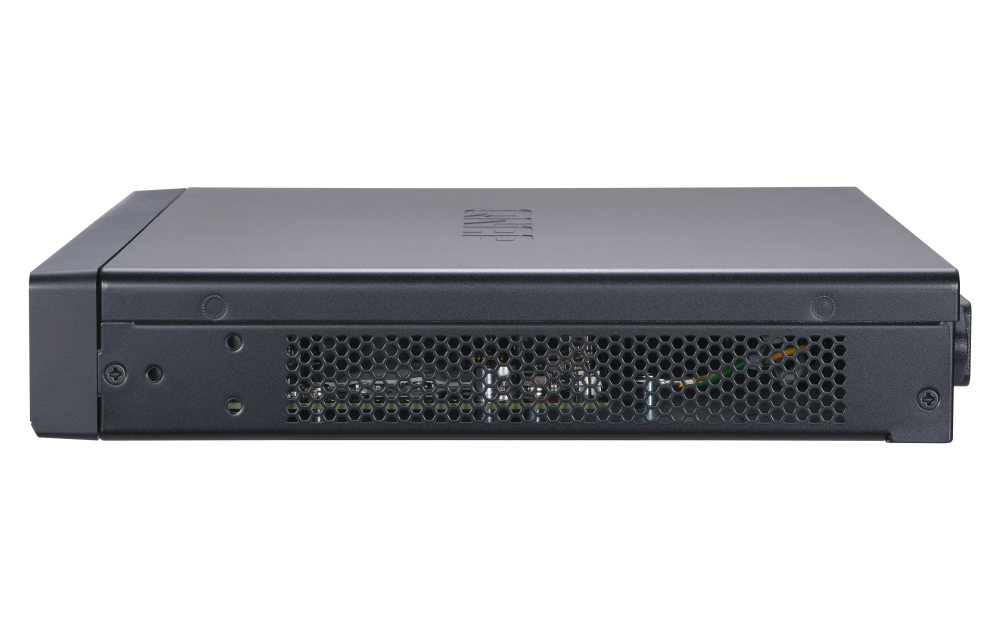

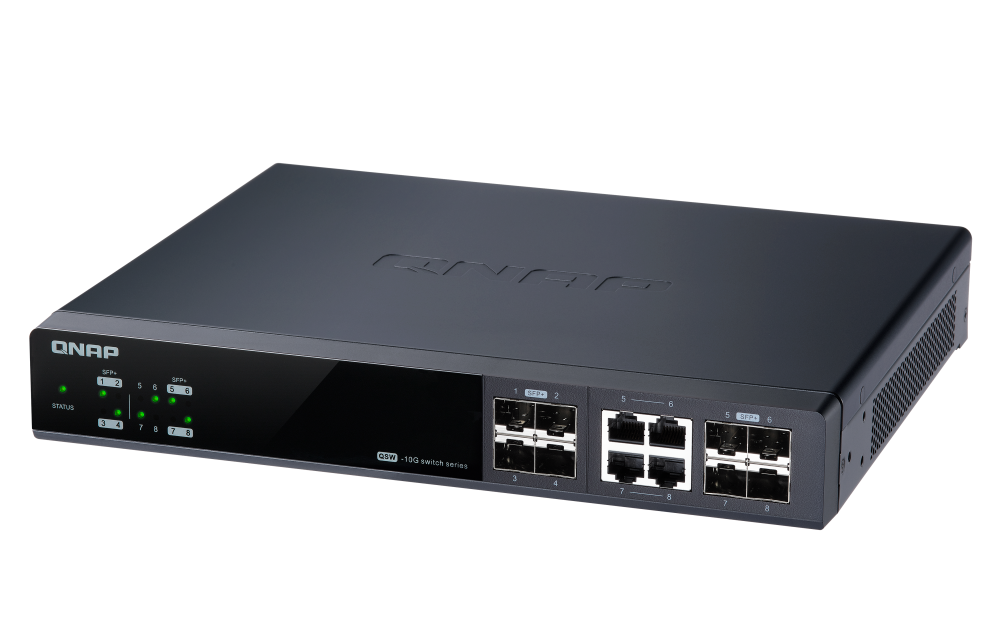

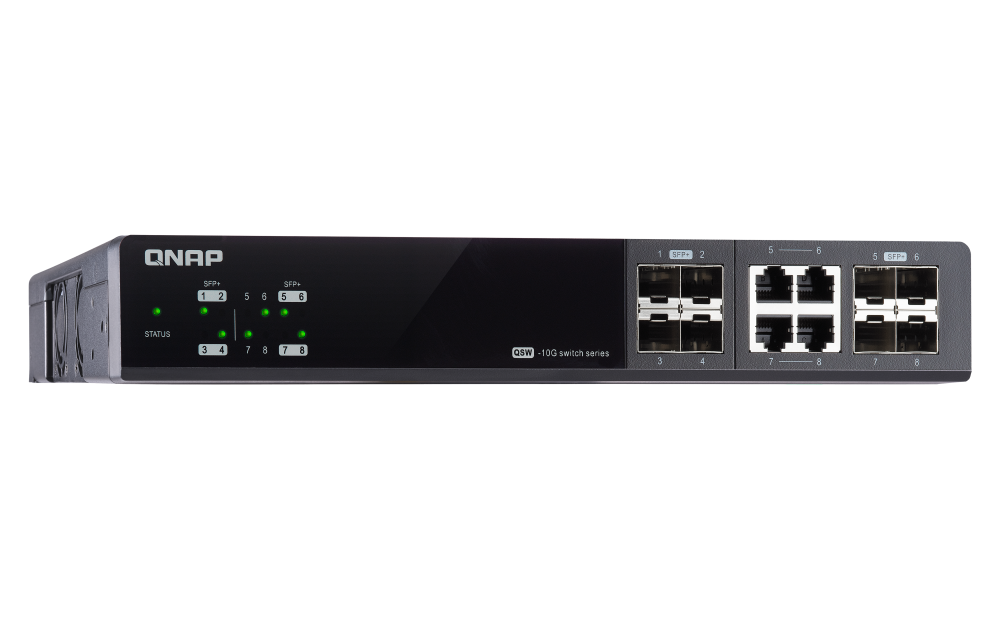

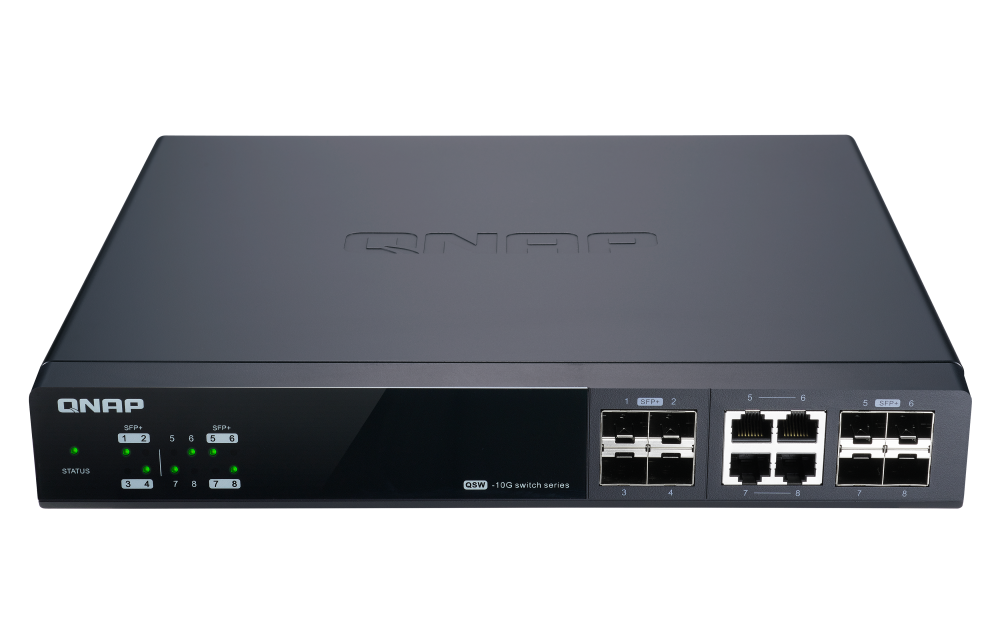

Name: QNAP QSW-M804-4C Networking Switch
Brand: qnap
Price: 1853 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 16 visitor right now

Sku: QSW-M804-4C

Product type: NAS Switch

Vendor: qnap

QNAP QSW-M804-4C Networking Switch

Key Features

4 x 10GbE SFP+Ports

4 x 10GbE SFP+/RJ45 Combo Ports

80 Gb/s Total Non-Blocking Throughput

160 Gb/s Switching Capacity

MAC Address Table: 32,000

1 x RS-232 Console Connector

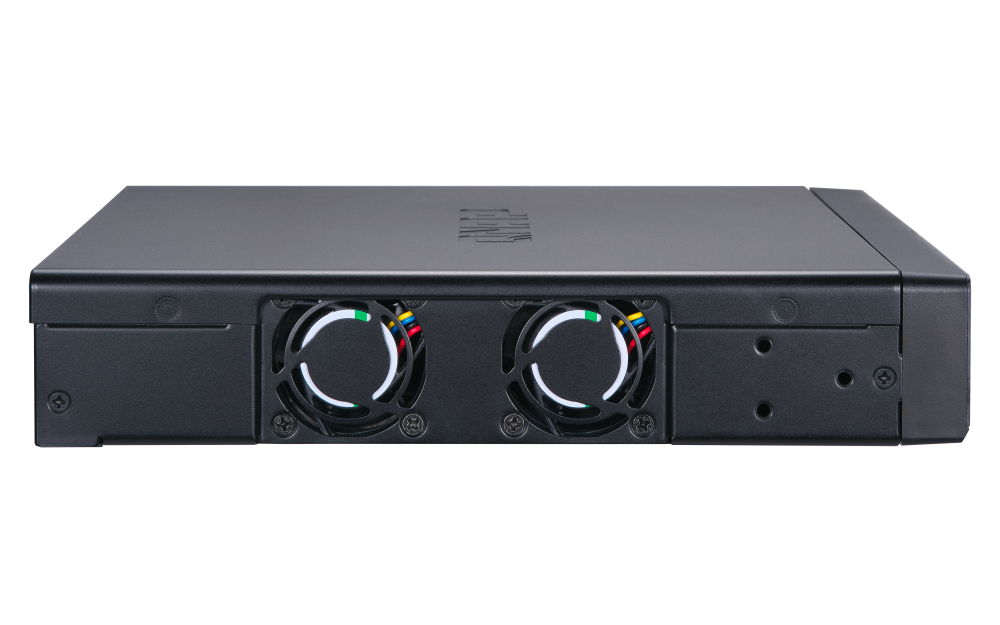

40mm Cooling Fan

LED Indicators

Mounting Hardware Including

Web-Based Management Interface

QSW-M804-4C

Hardware Specs:

Management Type	Web Managed
Number of Ports	8
10GbE SFP+	4
10GbE SFP+/RJ45 Combo Ports	4 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
Management Port	1 x 1GbE RJ45
Power Supply Description	Internal Power Supply Unit
Max. Power Consumption	70W
Input Power Type	AC
Input Voltage Range	100 ‒ 240VAC, 50/60Hz
MAC Address Table	32K
Total Non-Blocking Throughput	80Gbps
Switching Capacity	160Gbps
Management Interface	Web
Console	RS232
Fan	System: 4 x 4 cm (12V)
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP (IEEE 802.1p Class of Service)
Form Factor	Rackmount
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Status
Buttons	Reset button
Dimensions (HxWxD)	46.65 x 285 x 236.6 mm
Weight (Net)	2.12 kg
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	5%–95% (non-condensing)
Certifications	FCC, CE, VCCI, BSMI, RCM, WEEE
Electromagnetic Compliance	CLASS A
Jumbo Frames	9K
