• Functionally identical to QNAP CAB-DAC30M-SFPP
• Support for multi-gigabit data rates up to 10.5Gbps
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant with enhanced EMI/EMC performance
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free

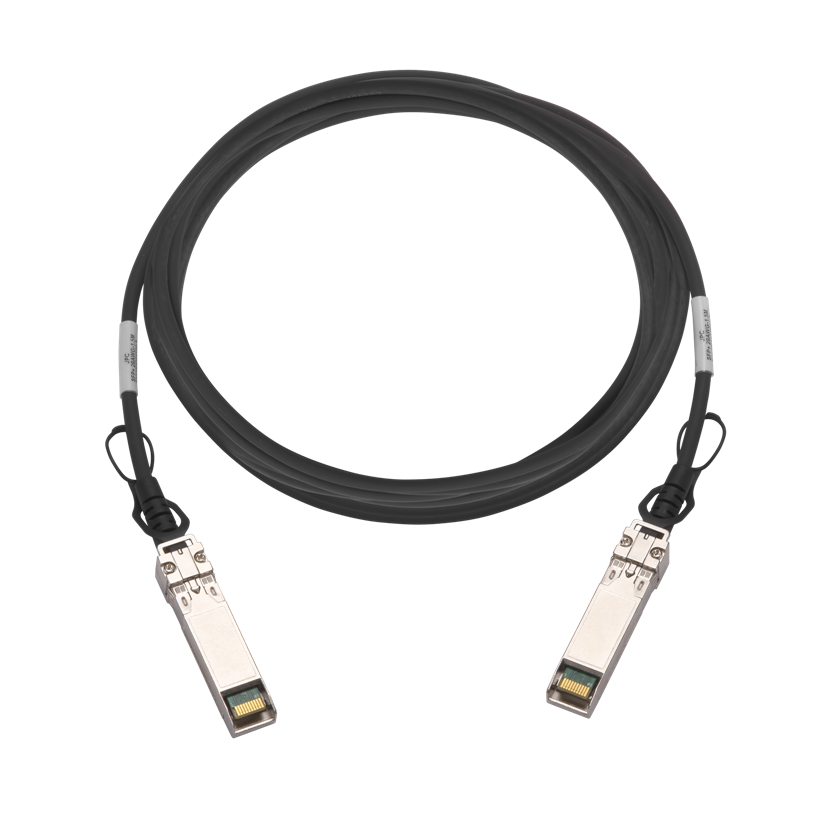

10G SFP+ direct attach copper cable (3m, AWG30, Passive) for use with QNAP 10G switches, routers and servers
This QNAP CAB-DAC30M-SFPPcompatible DAC provides high performance and cost-effective SFP+ direct attach copper cable with a length of 3 meters (10 ft). It supports the bandwidth transmission requirements as defined by 10 Gigabit-Ethernet (10GBase-CU), 8G Fiber Channel (FC) and 10G Fiber Channel over Ethernet (FCoE). Every cable is individually programmed and tested to work with QNAP 10G switches, routers, network adapters, and network storage systems. It offers a low-cost alternative to genuine QNAP CAB-DAC30M-SFPP high-speed cable assemblies.
| OEM Part Number | CAB-DAC30M-SFPP | Optcore Part Number | SFP-10G-DAC-P3M-QNA |
| Form Factor | SFP+ DAC Cable | Data Rate | 10.5Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 3 m | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Minimum cable bend radius | 25 mm | Cable Jacket Type | PVC |
| Connector | SFP+ | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.18 kg |
| Application | Storage Area Networks( SAN) Network Attached Storage Switched fabric I/O High density connections between networking equipment Data center cabling infrastructure | Compliance | SFF-8472,SFF-8431 IEC/EN 61000-4-2 MIL-STD-883E, RoHS |
