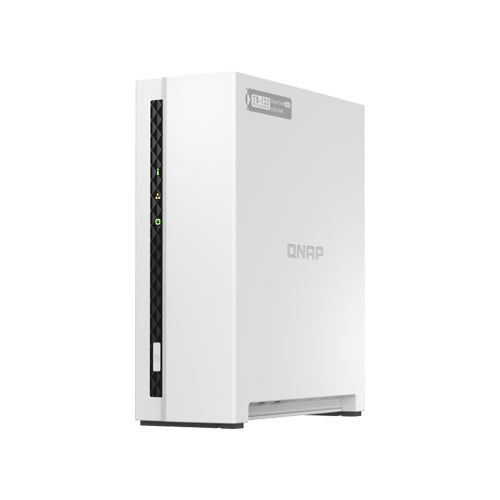

TS-133
Save you money and time. The best entry-level NAS storage.
Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-133. Designed for beginners and home NAS users, the TS-133 not only simplifies data storage and collaboration but also features rich multimedia applications as a complete home entertainment portal.
-
Centralized multimedia management
Centrally store photos, music, and videos; easily browse, organize, and share multimedia files.
-
AI-powered image recognition
With a built-in NPU (Neural network Processing Unit) processor, the TS-133 boosts performance for high-speed face and object recognition.
-
Home entertainment center
Supports ARM NEON technology that accelerates video processing for a greater entertainment experience.
-
Secure remote access
myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet.
-
Snapshot protection against Ransomware
Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection.
-
Comprehensive security management
Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more.

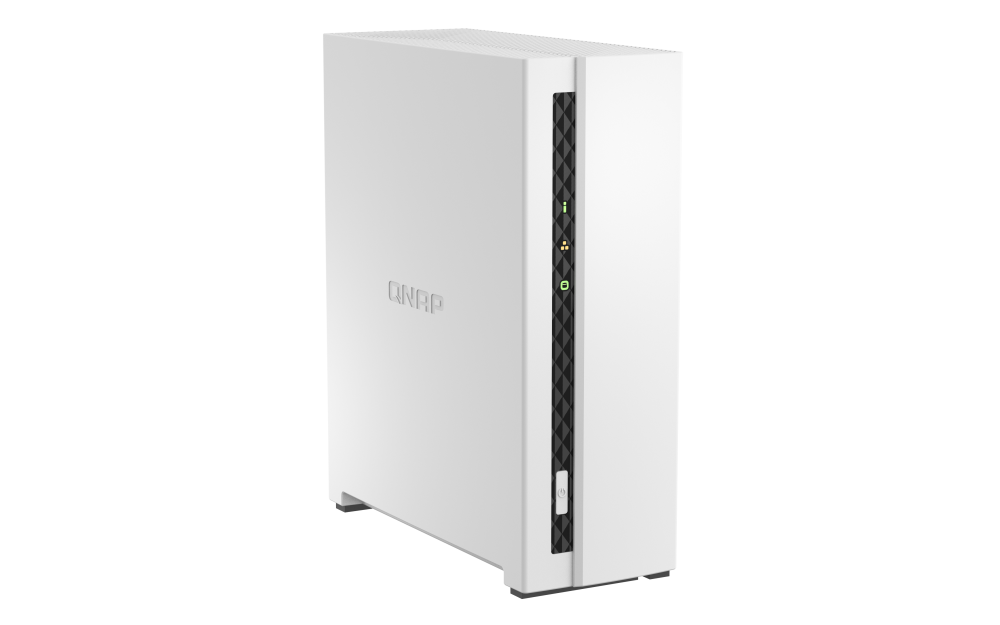

Minimalist design
The compact and slim TS-133 prioritizes a clean and essential design, and perfectly blends into your home or office.
Effective cooling fan for heat flow
The TS-133 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.
|
| CPU | ARM 4-core Cortex-A55 1.8GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | |
| Encryption Engine | |
| Hardware-accelerated Transcoding | |
| Neural Processing Unit (NPU) | |
| System Memory | 2 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory. |
| Maximum Memory | 2 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 1 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Gigabit Ethernet Port (RJ45) | 1 |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 1 |
| USB 3.2 Gen 1 port | 1 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, HDD |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 186 × 66.1 × 157.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 0.97 kg |
| Weight (Gross) | 1.27 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 36W Adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 2.74 W |
| Power Consumption: Operating Mode, Typical | 7.32 W Tested with drives fully populated. |
| Fan | 1 x 50mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 200 |
