Name: QNAP Single-Port 2.5GbE PCIe Network Expansion Card
Brand: qnap
Price: 289 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 38 visitor right now

Sku: QXG-2G1T-I225

Barcode: 885022020010

Vendor: qnap

QNAP Single-Port 2.5GbE PCIe Network Expansion Card

2.5 GbE network expansion card

2.5 GbE network expansion card delivers speeds of up to 2.5 Gbps. You can easily upgrade your home and office network infrastructure with existing cables.

Please check the compatibility list for your NAS

Single-port 2.5 GbE network expansion card

Download Datasheet

Dimensions (L x W x H)	64.8 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm
Controller	Intel Ethernet Controller I225-LM
Number of Ports	1 x NBASE-T (RJ45)
Connector	NBASE-T (RJ45)
PCIe and Lanes	PCIe Gen2 x1
Transmission Rates	2.5Gbps/1Gbps/100Mbps/10Mbps
IEEE Standards	IEEE 802.3 IEEE 802.1Qbu IEEE 802.3br IEEE 802.1Qbv IEEE 802.1AS-REV IEEE 802.1p,Q IEEE 802.1Qav EEE 802.3az
Bracket	full-height and specialized for QNAP NAS
Supported Function	PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT**
Supported NAS operating systems	QTS/QuTS hero (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required)
Supported QNAP NAS	Models with PCIe slot(s) (1 free slot required)
Support Ubuntu Commercial Linux Distribution	Linux Stable Kernel 4.20/5.x
Support RedHat	Linux Stable Kernel 4.20/5.x
Support Windows	Windows 10 (1809 or later)
Support Windows Server	Windows Server 2019
Support Debian	Linux Stable Kernel 4.20/5.x
Port and Cable	RJ-45; over CAT-5 class cable

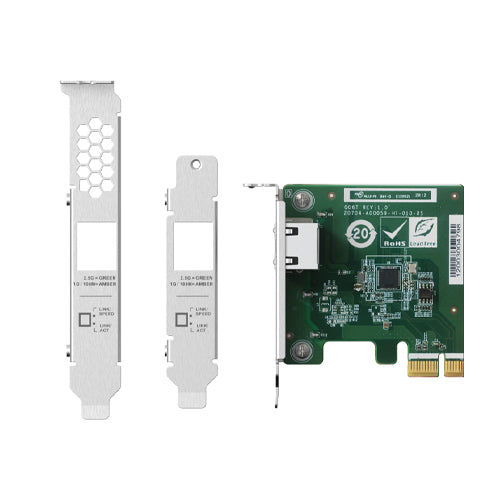

Package Contents	1 x Network card (Low-profile bracket pre-installed); 1 x QIG; 2 x Brackets (full-height and specialized for QNAP NAS)
Standard Warranty	2 year
