Expand up to petabyte-scale capacity

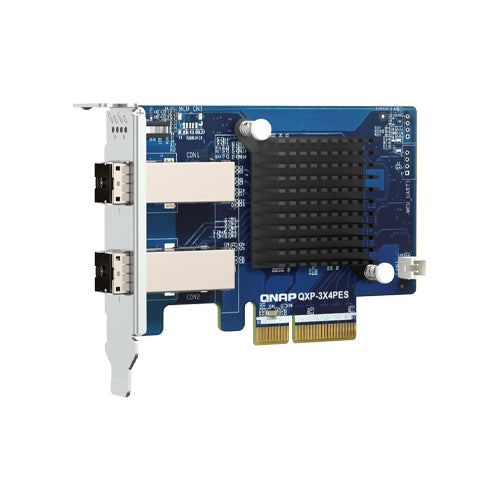

A NAS with a QXP-3X4PES can be daisy-chained with multiple TL PCIe Interface JBODs (TL-R1200PES-RP, TL-R1600PES-RP and TL-R2400PES-RP), which supports SATA HDDs. This provides the potential to store up to petabyte-scale capacity.
Actual number of expansion units may depend on the host NAS.
Note:
1. The TL PCIe Interface JBOD series requires users to connect cables to specific inputs/outputs.
2. Actual number of expansion units may depend on the host NAS. Always consult the compatibility list before purchasing accessories for host devices.
|
| Connector | 2 Channels ( SFF-8644 connectors ) |
| PCIe and Lanes | PCIe Gen3 x4 |
| Transmission Rates | Max. 32Gbps |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 102.65 × 68.9 × 19 mm |
| Supported Cable | CAB-PCIE10M-8644-4X |
| Standard Warranty | 3 years |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage temperature | -20 - 70°C (-4°F - 158°F) |
| Relative humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| JBOD supported | TL-R1200PES-RP, TL-R1600PES-RP, TL-R2400PES-RP |
| Supported Operating System | QuTS hero 5.1.2 or later; QTS 5.1.2 or later |
| Note [NAS] | Recommended models (please update your NAS OS and BIOS to the latest version) |
Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
