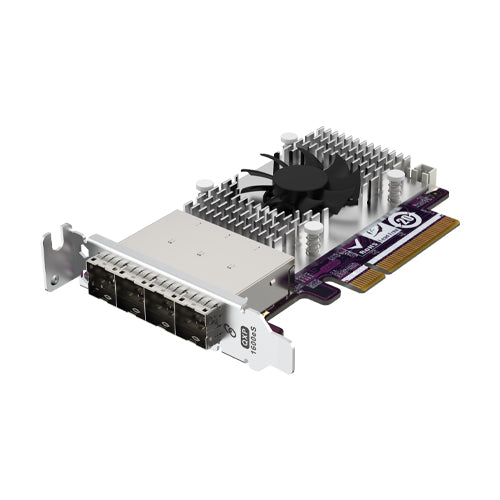

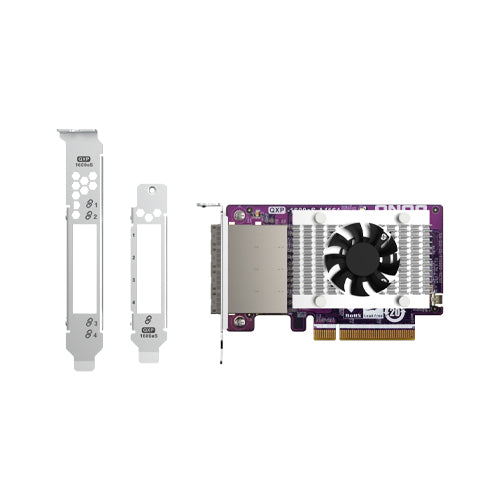

The QNAP QXP-1600eS-A1164 expansion card is designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. The storage capacity of a QNAP NAS or Windows®/ Ubuntu® (Linux®) PC can be easily expanded by installing a QXP-1600eS-A1164 into a PCIe slot, and then connecting it to a TL series JBOD storage enclosure using an SFF-8088 or SFF-8644 cable. The low-profile card form-factor allows the QXP-1600eS-A1164 to be compatible with a wide range of NAS, computers, and servers.
Supports QNAP NAS and Windows®/Ubuntu® PCs
Each SFF-8088 or SFF-8644 (internal) connector on the QXP-1600eS-A1164 supports up to four SATA drives. A QXP-1600eS-A1164 can be installed based on the number of drives you want to connect for storage expansion. For example, a QXP-1600eS-A1164 can be connected to a 16-bay desktop TL-D1600S JBOD enclosure or a 12-bay rackmount TL-R1200S-RP JBOD enclosure; it can also be connected to two 8-bay desktop TL-D800S JBOD enclosures simultaneously or connected to a 12-bay rackmount TL-R1200S-RP JBOD enclosure and a 4-bay rackmount TL-R400S JBOD enclosure simultaneously.
Note: To update the firmware of TL JBOD storage enclosure through QTS or JBOD Manager, make sure all the device connection (including the NAS/PC, QXP SATA HBAs, and TL JBOD storage enclosures) is completed.
16-port SATA expansion card
Download Datasheet
Standard Warranty
1 year
Controller
4 x PCIe to SATA Controllers
Connector
4 x SFF-8644
Supported SATA driver numbers
16 x SATA 6Gb/s drives (Each SFF-8644 internal connector supports four SATA drives)
PCIe interfaces
PCIe Gen3 x8 (64Gbps)
Supported operating systems
- QTS 4.5.4 or later, QuTS hero h4.5.4 or later - Windows 8 or later - Windows Server 2012 R2 or later - Linux with Kernel 3.10 or later
Form factor
117.72 x 68.9 x 18.26 mm (Without connector 111.65 x 68.9 x 18.26 mm)
Cable
QNAP provides 1.0M SFF-8644 to SFF-8088 cable for optional purchase. Order number:CAB-SAS10M-8644-8088
Architecture Diagram
Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original. Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site. Designs and specifications are subject to change without notice.
