Name: QNAP Dual-Port 32Gb Fiber Channel Host Bus Adapter - QXP-32G2FC
Brand: qnap
Price: 5328 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 45 visitor right now

Sku: QXP-32G2FC

Product type: Expansion Card

Vendor: qnap

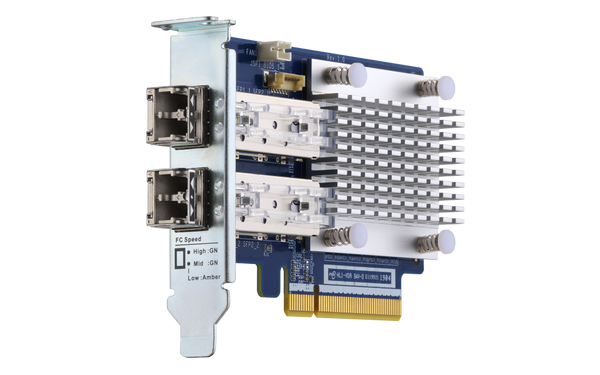

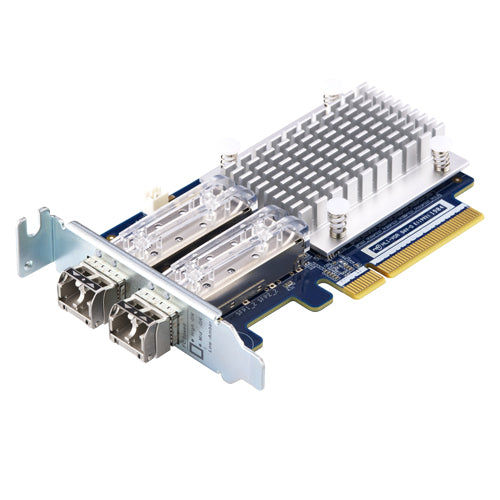

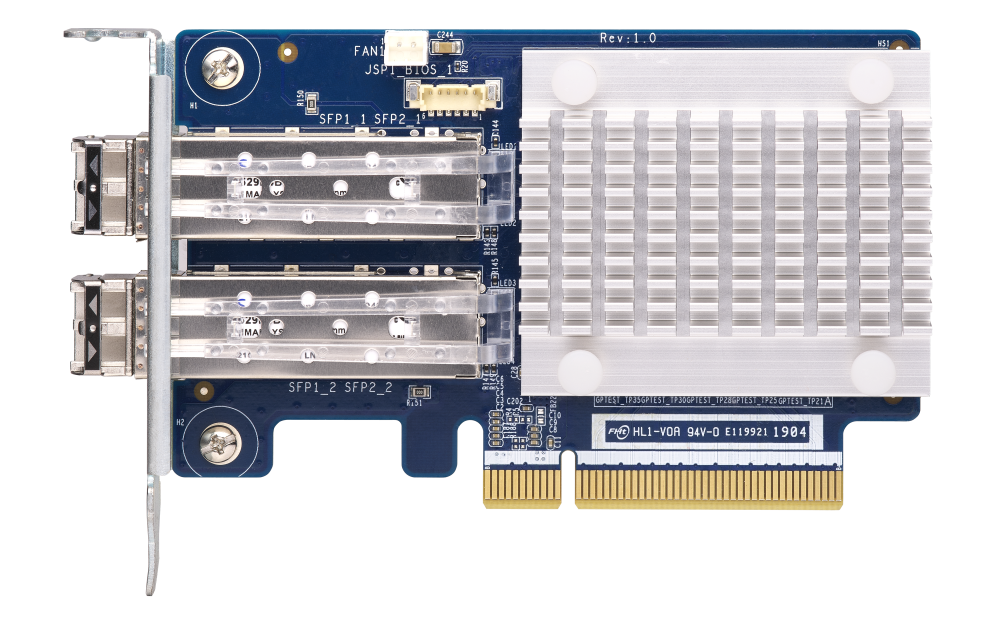

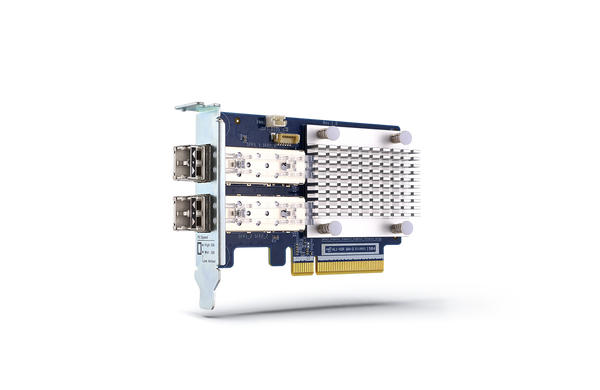

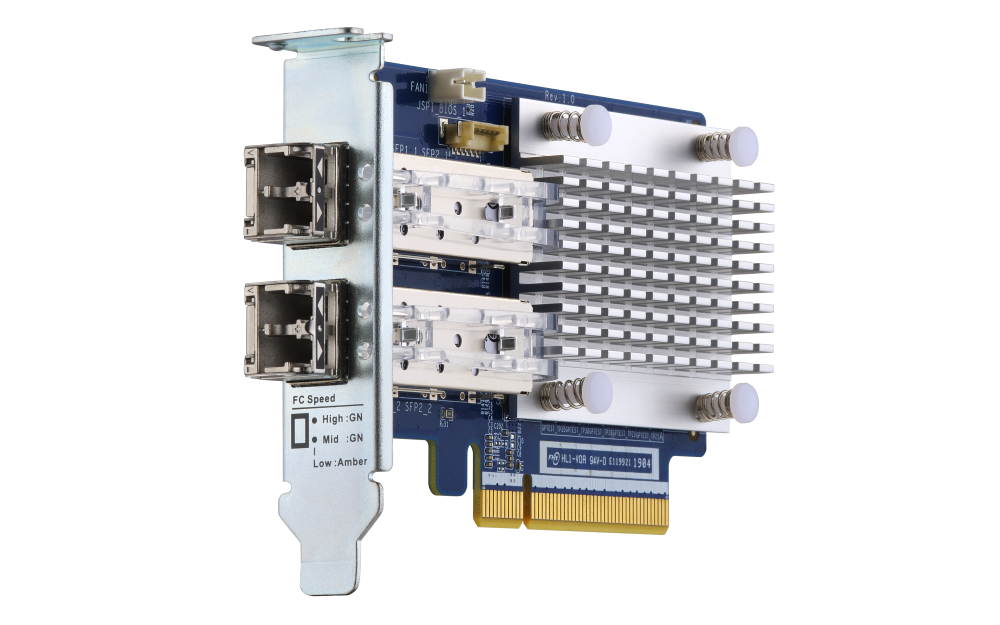

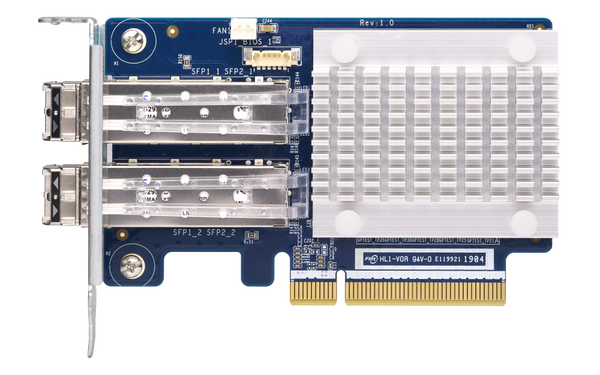

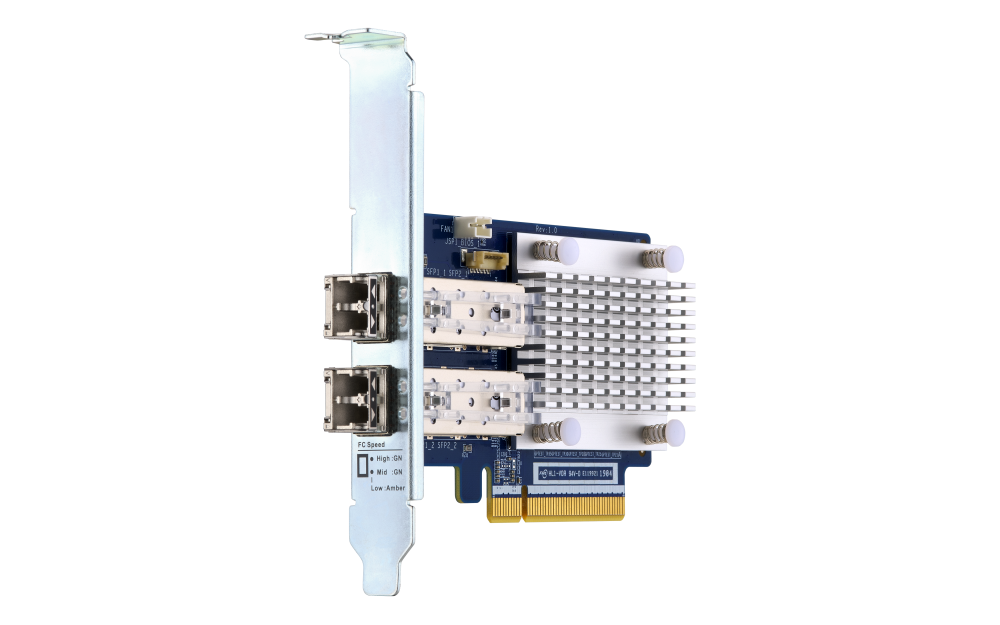

QNAP Dual-Port 32Gb Fiber Channel Host Bus Adapter

Key Features

For Select QNAP NAS Devices

2 x 32Gb SFP+ Transceiver Ports

Transmission Rates up to 32 Gb/s

Requires QTS or QTS Hero OS

QXP-32G2FC:

Add QNAP NAS to your existing Fibre Channel SAN environment with a budget-friendly solution

ommon Fibre Channel SAN (Storage Area Networks) are closed network environments, and their devices are often expensive while lacking deployment flexibility. QNAP introduces dual-port 16Gb/32Gb Fibre Channel expansion cards that feature high performance, reliability, security, and energy efficient Fibre Channel. With a QNAP Fibre Channel card in your QNAP NAS, your NAS can be added to an existing SAN environment at an affordable price point to fulfill requirements for high-performance storage and backup.

QNAP NAS as a Fibre Channel SAN storage solution

Replacing Fibre Channel SAN environments can be expensive and time consuming. By installing a PCIe-based Fibre Channel card to a QNAP NAS, your existing SAN environment gains a budget-friendly storage or backup solution. Not only is a QNAP NAS more affordable than typical SAN devices, but it also provides rich enterprise features to make storage applications more efficient - including LUN snapshots, Qtier auto-tiering, SSD cache acceleration, hybrid cloud backup solutions, and much more. The Fibre-Channel-ready QNAP NAS is a unified storage solution that provides SAN, NAS, and cloud storage features with higher cost-effectiveness and application flexibility.

Manage Fibre Channel connection using iSCSI & Fibre Channel app

Use the QTS / QuTS hero iSCSI & Fibre Channel app to set the QNAP NAS as a Fibre Channel Target, and add the NAS to your SAN environment with WWPN addresses. You can also take advantage of the Fibre Channel Switch that allows multiple connection paths to have multiple servers share the NAS. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

Dual-port 32Gb Gen 6 Fibre Channel expansion card

Standard Warranty	3 years
PCIe and Lanes	PCIe Gen3 x8
Transmission rates	Fibre Channel 32/16/8 Gb/s (Up to 28.05 Gb/s per port)
Form factor	Low-profile PCIe card10.68 x 6.89 cm (4.20 x 2.71 inches)
Supported NAS operating system	QTS 4.4.1 / QuTS hero 4.5.0 (or later) for QNAP NAS with PCIe slots as a FC Target. Check Compatible NAS Models

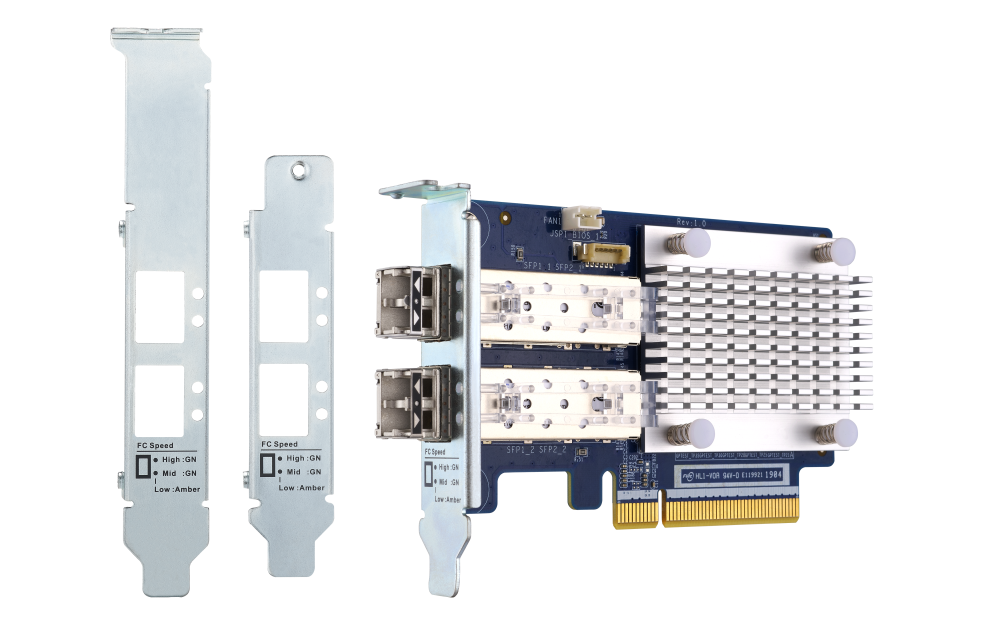

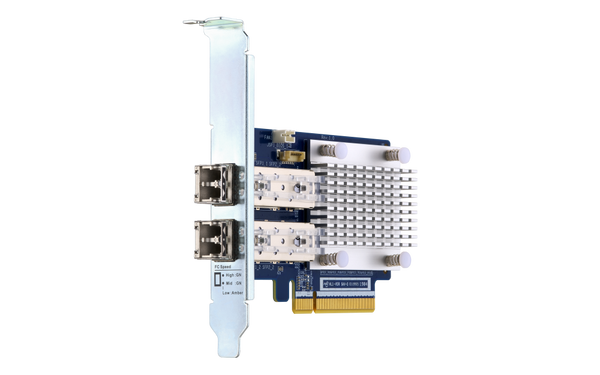

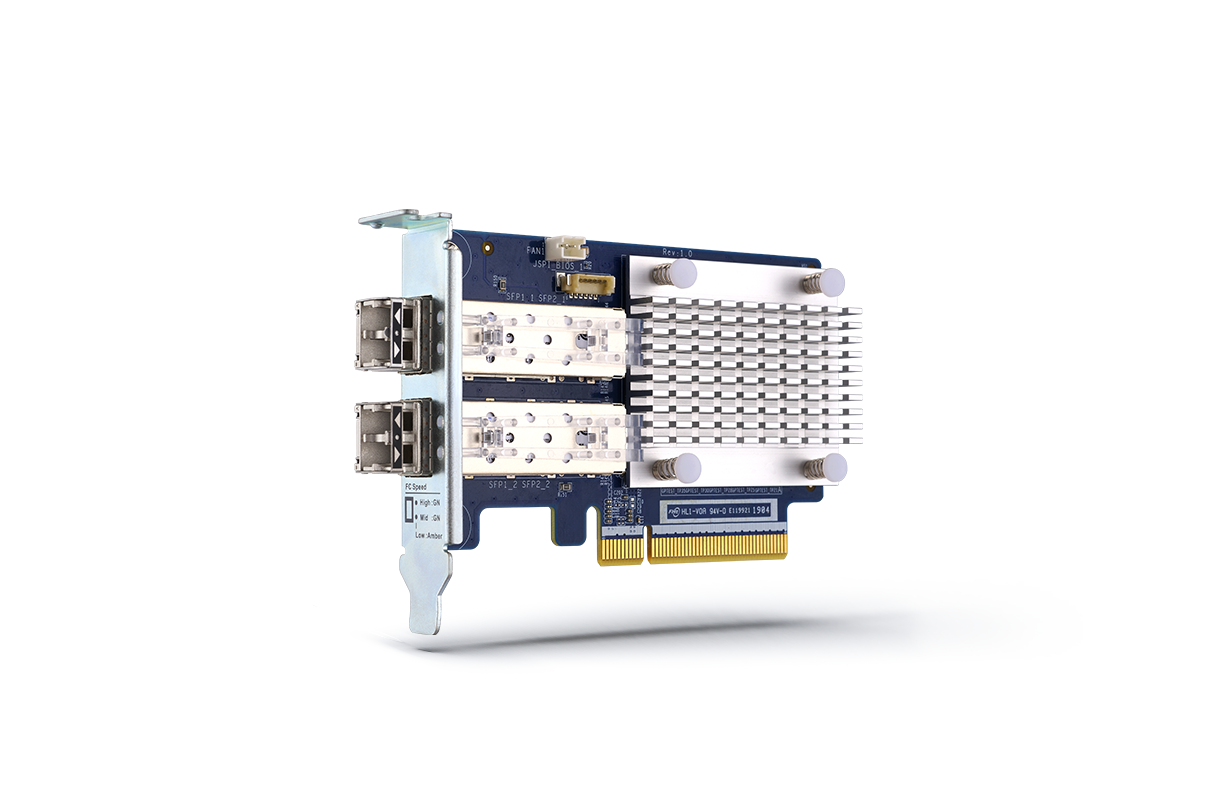

Bracket	Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
Port and cable	32Gb Transceiver* (bundled with 2 x TRX-32GFCSFP-SR short wavelength SFP+ transceivers) and Fibre LC Cable (optional purchase)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage temperature	–20°C to 70°C (–4°F to 158°F)
Relative humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Note	*Only QNAP certified transceivers are supported. Check compatibility list. Note: QNAP Fibre Channel cards can only be installed in a QNAP NAS (with the QTS or QuTS hero operating system) as a Fibre Channel Target. Windows®, Linux®, and other systems are not supported.
