Name: QNAP 1-Port SFF-8088 SATA III Host Bus Adapter for QNAP NAS Arrays
Brand: qnap
Price: 255 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 45 visitor right now

Sku: QXP-400eS-A1164

Barcode: 885022019779

Vendor: qnap

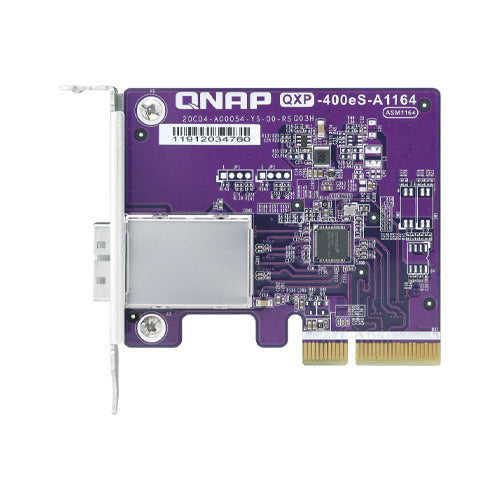

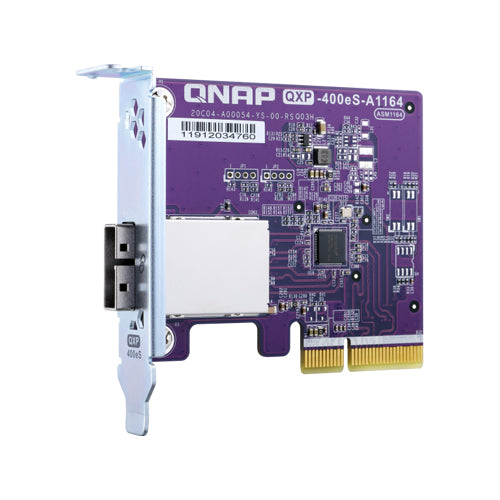

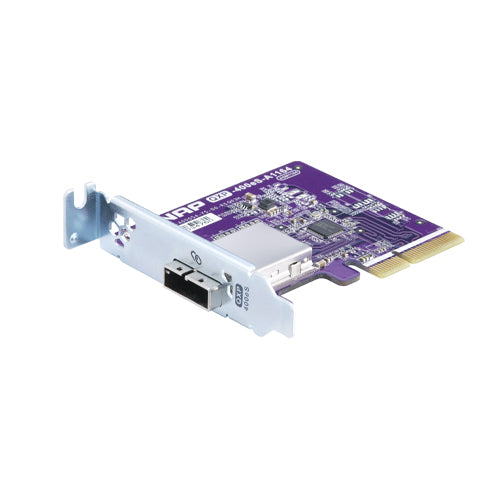

QNAP 1-Port SFF-8088 SATA III Host Bus Adapter for QNAP NAS Arrays

The QXP SATA expansion cards are designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. Expand storage capacity easily by installing a QXP SATA expansion card into the PCIe slot of a QNAP NAS or Windows®/ Ubuntu® (Linux®) PC, and then connect the TL series JBOD storage enclosures using an SFF-8088 (or SFF-8644) cable. The low-profile card form-factor allows QXP SATA expansion cards to be compatible with a wide variety of NAS, computers, and servers.

Supports QNAP NAS and Windows®/Ubuntu® PCs

Each SFF-8088 or SFF-8644 (internal) connector on the QXP SATA expansion card supports up to four SATA drives. A suitable QXP card can be installed based on the number of drives you want to connect for storage expansion. For example, a NAS or PC can have two 4-port QXP-400eS cards installed, with one card connected to a 4-bay tower TL-D400S JBOD enclosure and the other card connected to a 4-bay rackmount TL-R400S. Alternatively, both cards can be connected to a single 8-bay tower TL-D800S JBOD enclosure. A NAS or PC with a single QXP-400eS card installed can also connect to an 8-bay TL JBOD storage enclosure that has only 1-4 drives installed.

Hard to find SAS Expansion Cards? Try QXP SATA Expansion Cards!

When connecting Windows® and Ubuntu® (Linux®) hosts to SAS JBOD for expanding storage capacity, enterprises often choose SATA drives because there are few SAS expansion cards on the market. QXP SATA expansion cards not only support QNAP TL SATA JBOD and QNAP SAS JBOD (EJ series, REXP series) but also third-party SAS JBOD. You can easily expand the storage capacity of a server/host by installing a QXP SATA expansion card and connecting the SAS JBOD using an SFF-8088 (or SFF-8644) cable with Windows® and Ubuntu® (Linux®) PCs software RAID configuration.

Quad-port SATA expansion card

Standard Warranty	1 year
Controller	Asmedia ASM1164
Connector	1 x SFF-8088
Supported SATA driver numbers	4 x SATA 6Gb/s drives (Through SFF-8088 connector)
PCIe interfaces	PCIe Gen3 x2 (16Gbps)
Supported operating systems	- QTS 4.4.2 or later, QuTS hero - Windows 8 or later - Windows Server 2012 R2 or later - Linux with Kernel 3.10 or later

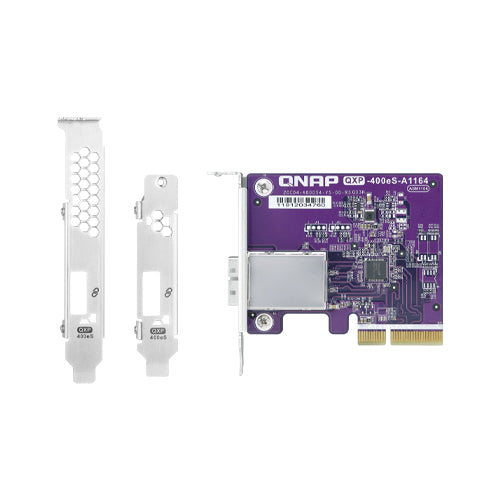

Form factor	Low-profile 85 x 68.9 x 17.24 mm (Without bracket 85 x 68.9 x 17.24 mm)
Cable	QNAP provides 1.0M SFF-8088 cable for optional purchase. Order number: CAB-SAS10M-8088
Architecture Diagram
