Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 11 visitor right now

Sku: QSW-M2106R-2S2T

Barcode: 885022025145

Product type: Access Switch

Vendor: QNAP

Description

Description

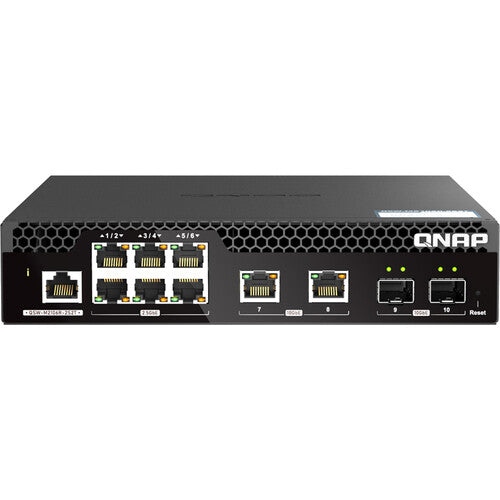

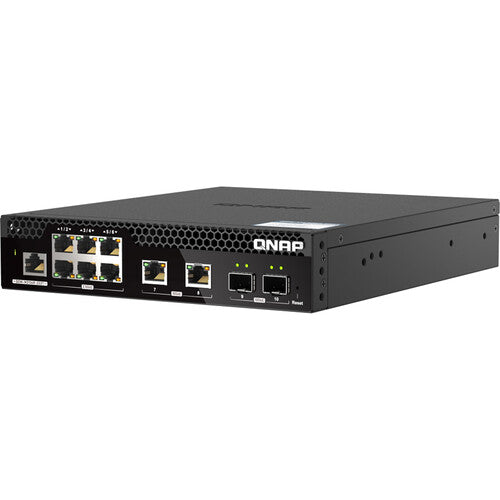

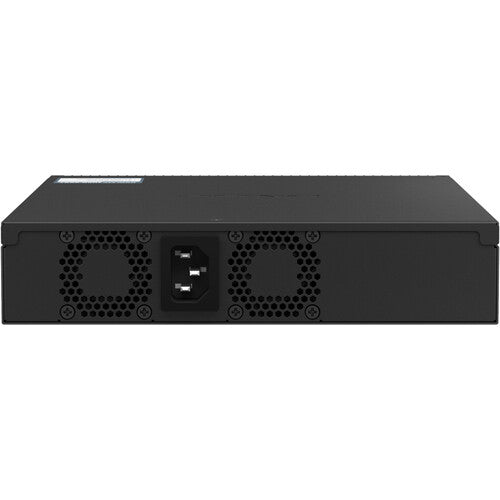

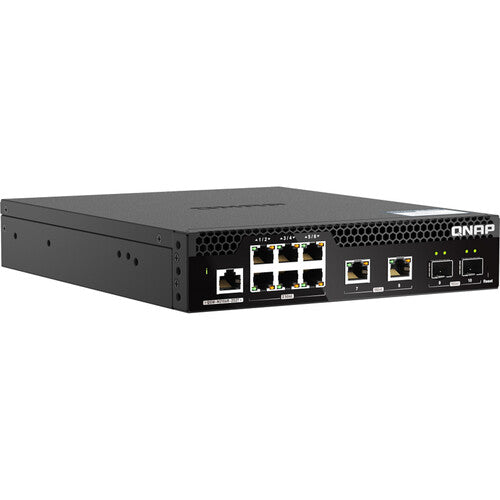

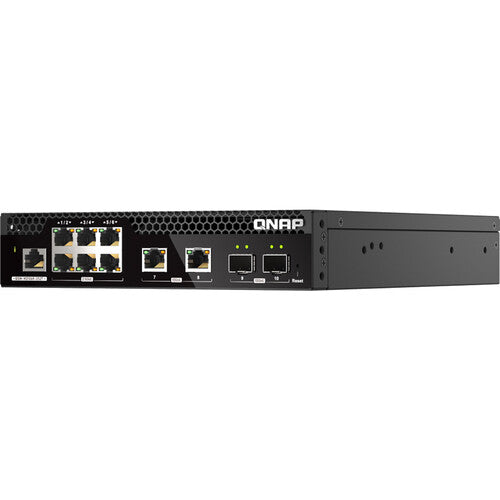

QNAP QSW-M2106R-2S2T 10-Port 2.5Gb & 10Gb Managed Network Switch

Name: QNAP QSW-M2106R-2S2T 10-Port 2.5Gb & 10Gb Managed Network Switch
Brand: QNAP
Price: 1695 AED
Availability: InStock

10GbE and 2.5GbE Layer 2 Web Managed Switch for SMB Network Deployment

The QSW-M2106R-2S2T is a Layer 2 Web Managed Switch with two 10GbE SFP+ fiber ports, two 10GbE RJ45 ports and six 2.5GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106R-2S2T offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2106R-2S2T can be installed in a 1U rack space for space-saving. The QSW-M2106R-2S2T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

10GbE connectivity

Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high-speed networks.
2.5GbE connectivity

Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
User-friendly management interface

The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network

Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP

One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Online firmware update

QSS can be updated with just one click, helping IT staff ensure their network security.

Half-width design, two models in 1U

With a half-width rackmount design, a QSW-M2106R-2S2T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M2108R-2C) for efficient physical space utilization and tidy cabling.

Note: The optional SP-EAR-QSW2FOR1-01 rackmount kit is required if two half-width rackmount switches are installed.

Flexible deployment with multiple 10G SFP+ fiber and Multi-Gigabit ports

The QSW-M2106R-2S2T provides two 10GbE SFP+ ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M2106R-2S2T is 110Gbps, guaranteeing the full potential of each port.

	CAT 5e	CAT 6e	CAT 6A & CAT 7
100M
1G
2.5G
5G
10G		(55m) (CAT 6: less then 45m)

Note 1: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 (copper) ports support up to five speeds (10G / 5G / 2.5G / 1G / 100M).
Note 2: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

Fully embrace High-Speed Networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

Learn More: QNAP 10GbE NAS Solution, 2.5GbE Solution

A switch that supports 2.5GbE/10GbE

QNAP 2.5GbE/10GbE switches support 2.5G/10G and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A fast NAS

A QNAP NAS with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Note: Managed Switch series support Port Trunking.
Upgrade desktops and servers

Servers and desktops can install QNAP PCIe network cards that support 10G / 5G / 2.5G / 1G / 100M Multi-Gig.
Add a 5GbE/10GbE port to laptops

Laptops and upgrade-limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter, allowing you to connect to 5G/2.5G/1G/100M networks.

QSS: Human-centered settings guide

The QSW-M2106R-2S2T adopts QNAP Switch System (QSS) featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.

Learn More: QSS

Overview Dashboard

View real-time system information, port connection status and port traffic.
Port Management

View port status, port packet statistics, and configure port speeds.
Setting Guide

Quickly learn how to set up the network using the introduction and step-by-step guide.
Exclusive Status Chart Referencing

Refer to four major status charts during each configuration to avoid going back and forth between different settings pages.
Online Firmware Check and Update

Keep your QNAP switch secure with one-click firmware updates.

QSW-M2106R-2S2T

Management Type	Web Managed
Number of Ports	10
10GbE SFP+	2
10GbE BASE-T (RJ45)	2
2.5GbE (RJ45)	6
Power Supply Description	Internal Power Supply Unit
Max. Power Consumption	40W
Input Power Type	AC
Input Voltage Range	100-240VAC, 50/60 Hz
MAC Address Table	16K
Total Non-Blocking Throughput	55Gbps
Switching Capacity	110Gbps
Management Interface	Web
Console	RJ45
Fan	PWM VAPO Bearing fan x 2
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Form Factor	Half-width rackmount
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Status
Buttons	Reset button
Dimensions (HxWxD)	43.3 x 207 x 248.8 mm
Weight (Net)	1.53 kg
Weight (Gross)	2.3 kg
Operating Temperature	0˚C to 40°C (32°F to 104°F)
Relative Humidity	5~95% Non-condensing
Certifications	CE, FCC, VCCI, BSMI
Electromagnetic Compliance	CLASS B
Jumbo Frames	9K
Warranty	2 Years
