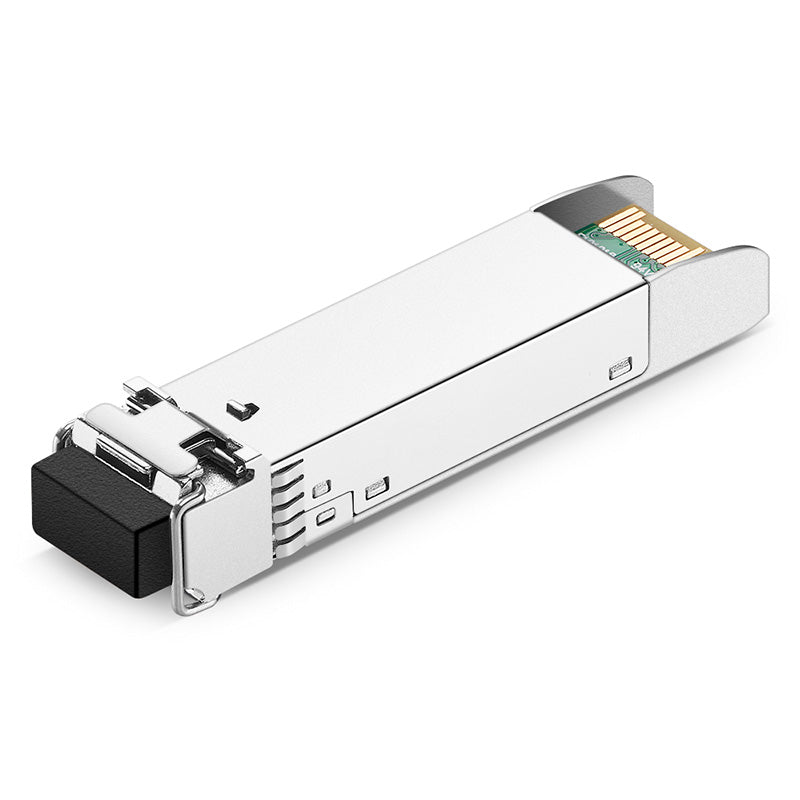

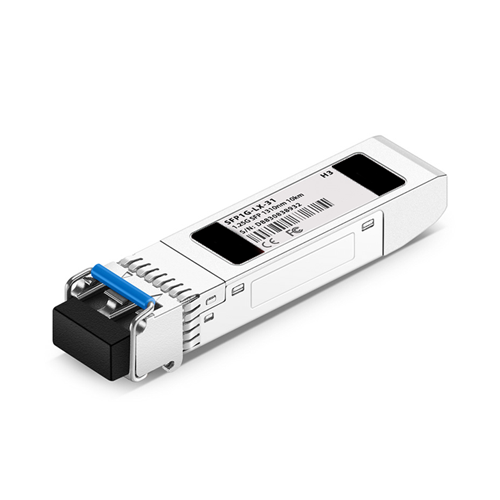

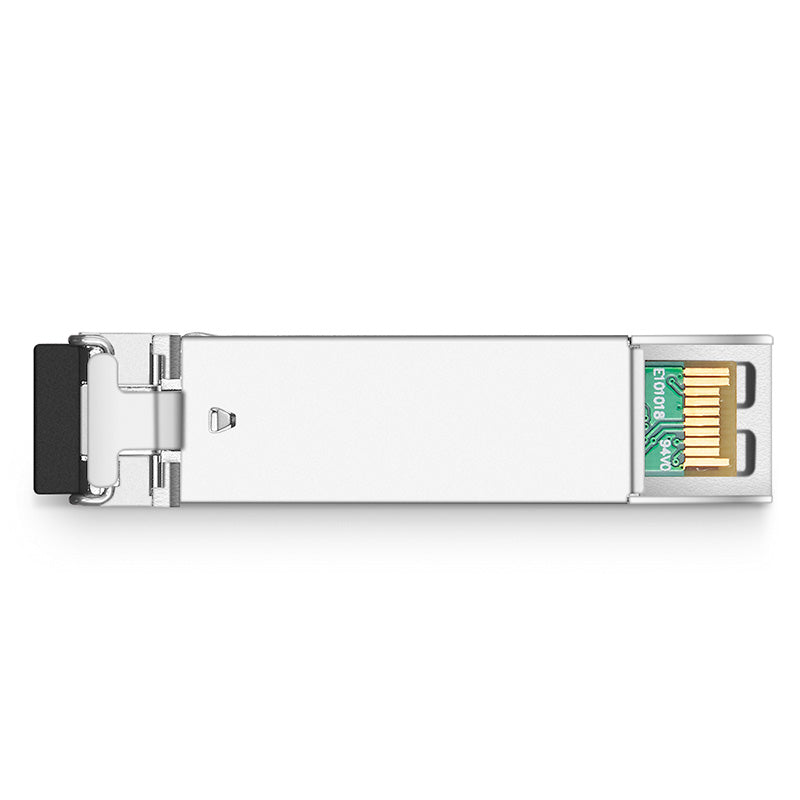

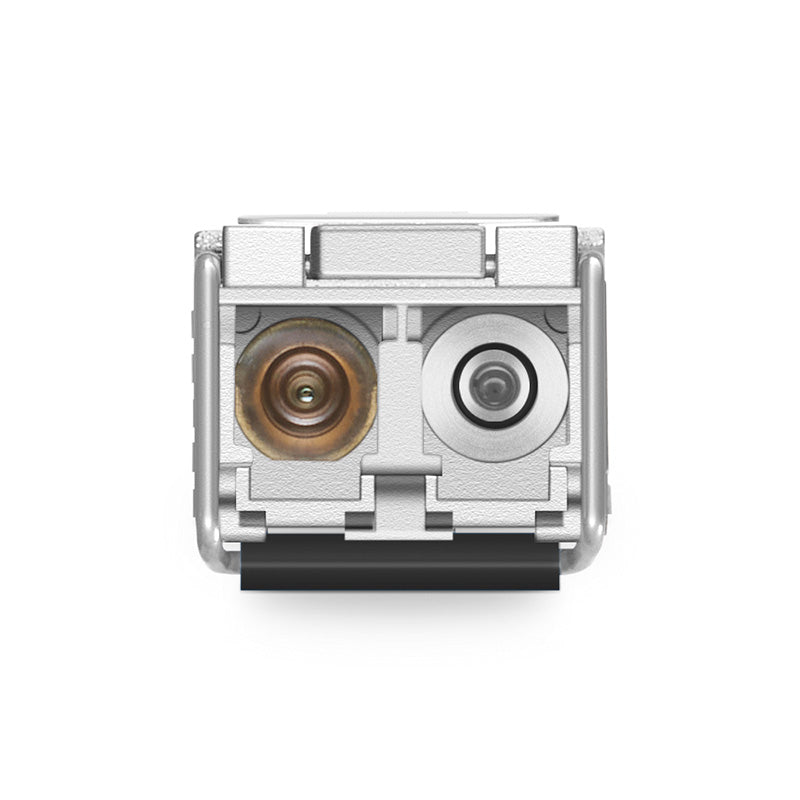

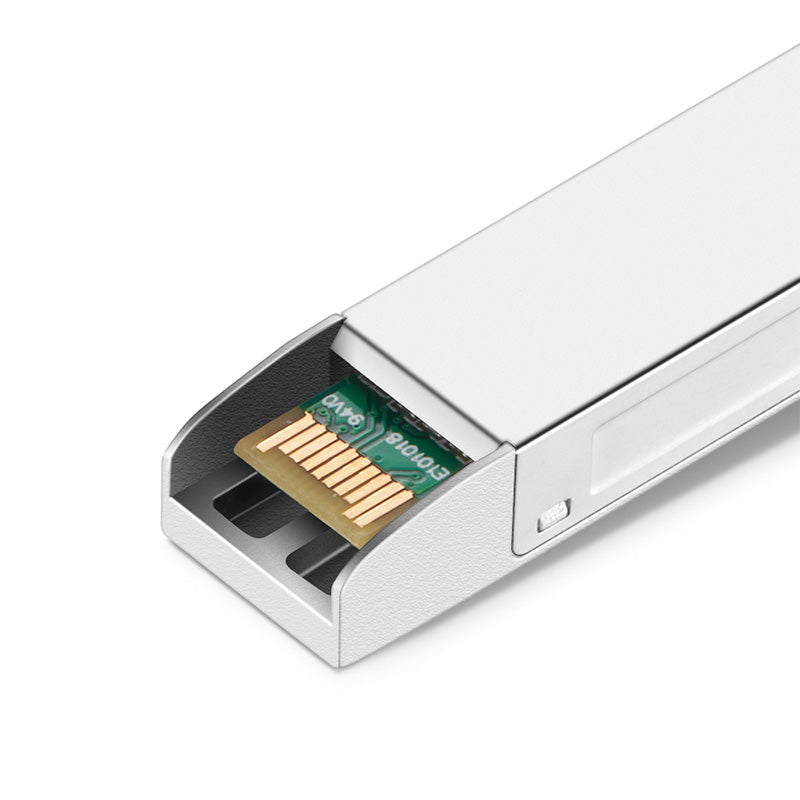

Name: H3C SFP-GE-LX-SM1310-A SFP 1000BASE-LX/LH 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
Brand: H3C
Price: 103 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 17 visitor right now

Sku: H3C SFP-GE-LX-SM1310-A

Product type: H3C Transceivers

Vendor: H3C

H3C SFP-GE-LX-SM1310-A SFP 1000BASE-LX/LH 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

Product Highlights

Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
Max. Power Consumption 1W Allowing for Prolonged Service Life
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Compliant to IEEE 802.3z Gigabit Ethernet
Class 1 FDA Laser Safety and RoHS Compliant
Tested in Targeted Switches for Superior Performance, Quality, and Reliability

H3C SFP-GE-LX-SM1310-A Compatible 1000BASE-LX SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

H3C SFP-GE-LX-SM1310-A compatible SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of H3C switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications

H3C Compatible

SFP-GE-LX-SM1310-A

Form Factor

SFP

Max. Data Rate

1.25Gbps

Wavelength

1310nm

Max. Cable Distance

10km@SMF

Connector

Duplex LC

Media

SMF

Transmitter Type

Receiver Type

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)

TX Power

-9.5 ~ -3dBm

Receiver Sensitivity

< -20dBm

Power Consumption

≤1W

Receiver Overload

-3dBm

Bit Error Ratio (BER)

1.00E-12

Extinction Ratio

>9dB

EMC (Electro Magnetic Compatibility)

Supported

MTBF (LX)

4,761,904 Hours

Protocols

IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
