Name: QNAP QSW-M5216-1T 16-Port 25GbE/10GbE Layer 2 Web Managed Switch
Brand: QNAP
Price: 4134 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 18 visitor right now

Sku: M5216-1T

Product type: NAS Switch

Vendor: QNAP

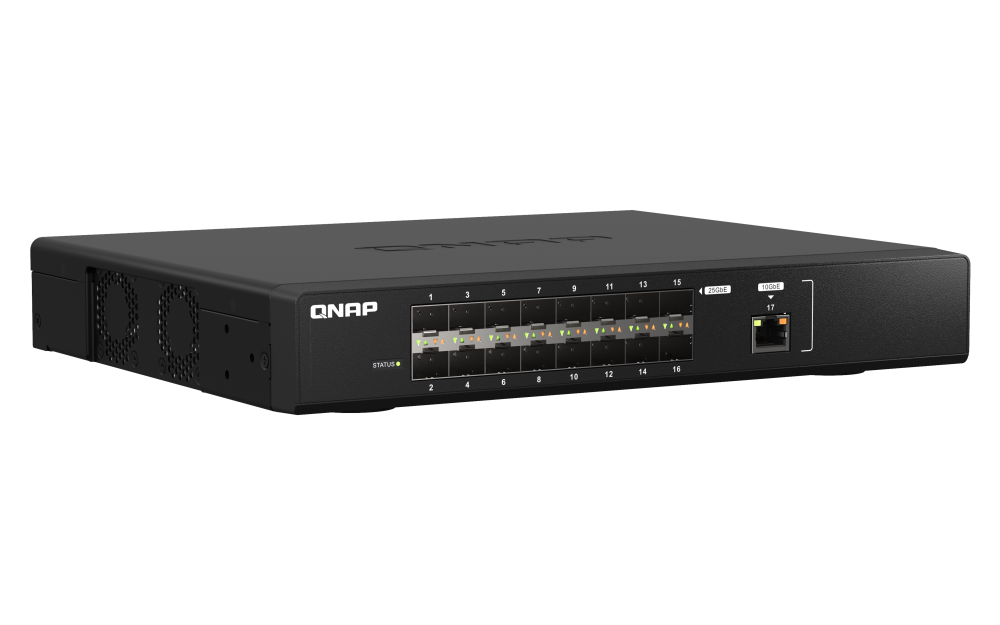

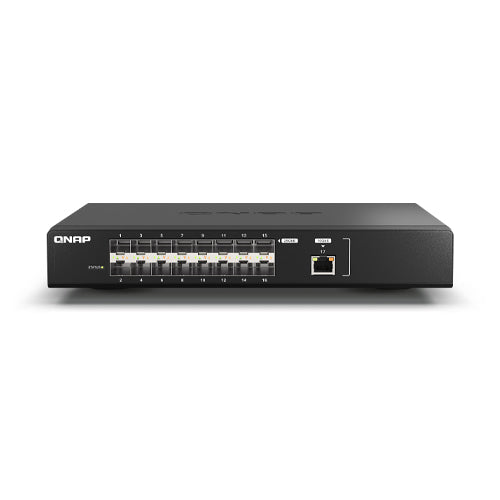

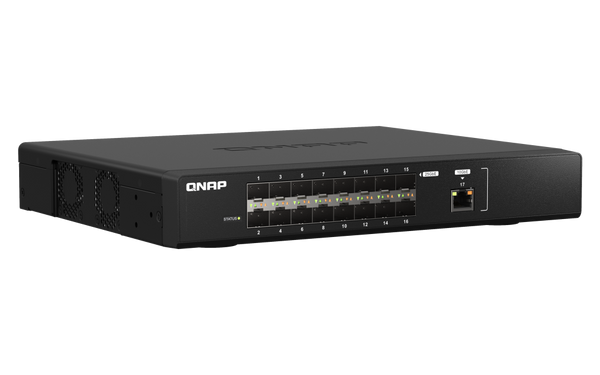

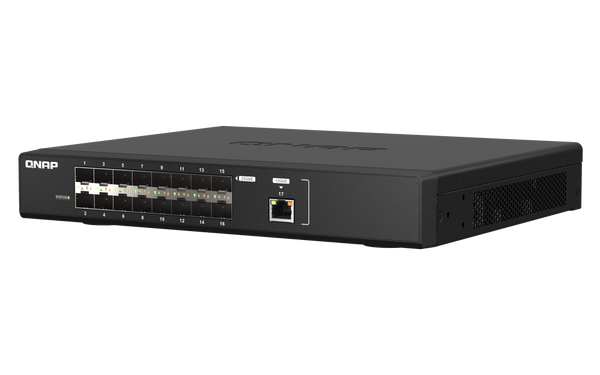

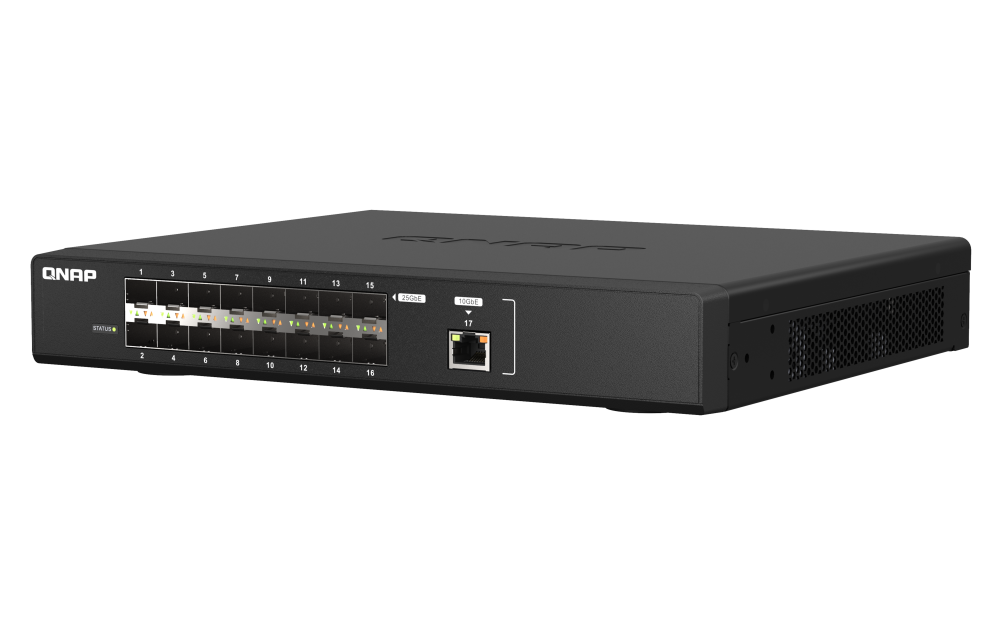

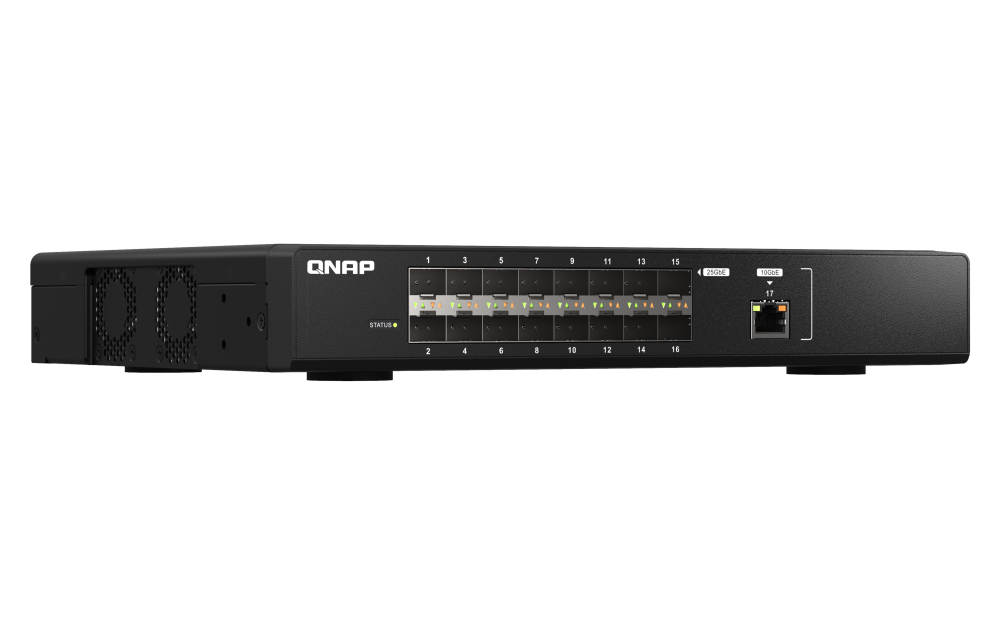

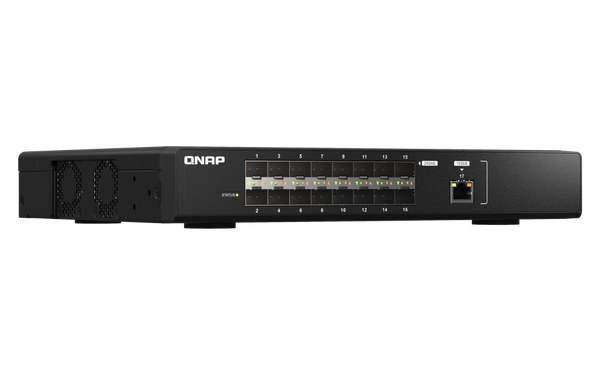

QNAP QSW-M5216-1T 16-Port 25GbE/10GbE Layer 2 Web Managed Switch

QSW-M5216-1T

Ultra-high-speed 25GbE fiber managed switch with 10GbE connectivity for backbone networks

The QSW-M5216-1T is a 16-Port 25GbE SFP28 fiber Managed Switch with one 10GbE NBASE-T port. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M5216-1T provides an entry-level network management solution that is usable even by non-IT professionals. Offering ultra-high 25GbE speeds and a backbone switching capacity of 820Gbps, the QSW-M5216-1T can serve as the core switch uplinking to 25G Servers and NAS in server rooms or connecting to 25G/10G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. The QSW-M5216-1T provides flexible network interfaces for high compatibility at an affordable price, enabling small businesses to quickly upgrade to an ultra-high-speed backbone network by integrating to existing network infrastructure. The QSW-M5216-1T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

25GbE Fiber

The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and a backbone switching capacity of 820Gbps for uplinking server rooms.
10GbE connectivity

The QSW-M5216-1T is equipped with one 10GbE NBASE-T port for hybrid high-speed network deployment.
User-friendly management interface

Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
Layer 2 network

The QSW-M5216-1T provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhance security.
RSTP protocol

The QSW-M5216-1T supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Flow Control

Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M5216-1T avoids packet loss from unparalleled bandwidth.

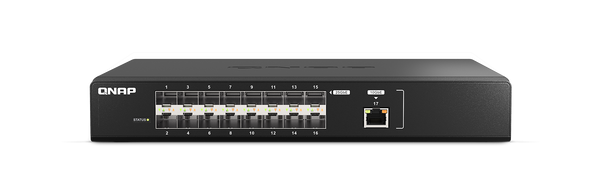

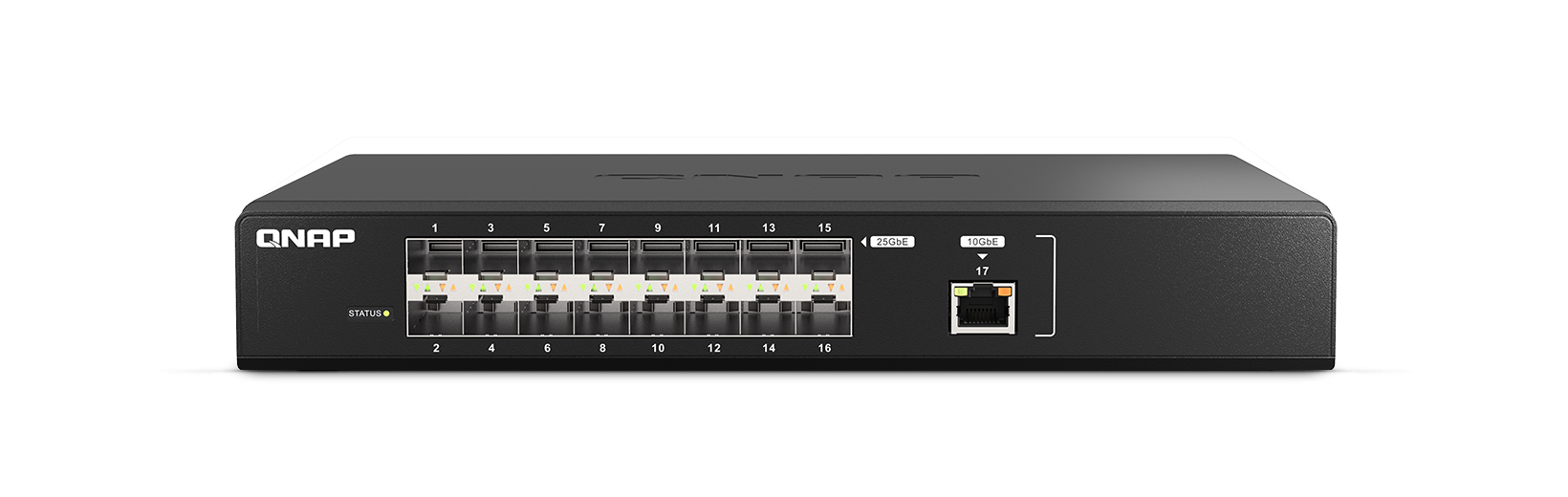

QNAP 25GbE Switch

QSW-M5216-1T
Honored with Interop Tokyo 2022 Best of Show Award for Runners-up

QSW-M5216-1T

Management Type	Web Managed
Number of Ports	17
25GbE SFP28	16
10GbE BASE-T (RJ45)	1
Management Port	1 x 1GbE RJ45
Power Supply Description	Internal Power Supply Unit
Max. Power Consumption	32.602W
Input Power Type	AC
Input Voltage Range	100-240VAC, 50/60 Hz
MAC Address Table	32K
Total Non-Blocking Throughput	410Gbps
Switching Capacity	820Gbps
Management Interface	Web
Console	RS232
Fan
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T, Out-of-Band port ( MGMT only ) IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.3by 25 Gigabit Ethernet IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Form Factor	Rackmount
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Status
Buttons	Reset button
Dimensions (HxWxD)	43.5 x 285 x 237.7 mm
Weight (Net)	2.15 kg
Weight (Gross)	2.85 kg
Operating Temperature	0˚C to 40°C (32°F to 104°F)
Relative Humidity	5~95% Non-condensing
Certifications	CE, FCC, VCCI, BSMI
Electromagnetic Compliance	Class A
Jumbo Frames	9K
Warranty	2 Years
