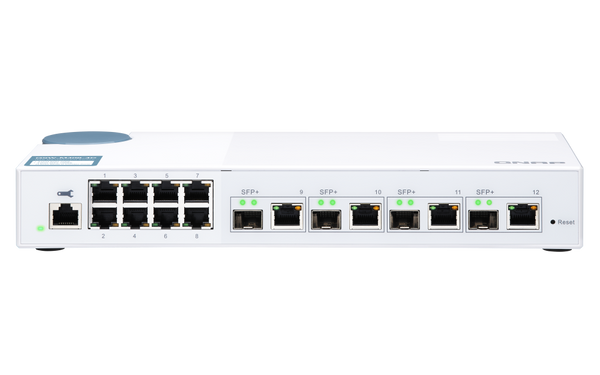

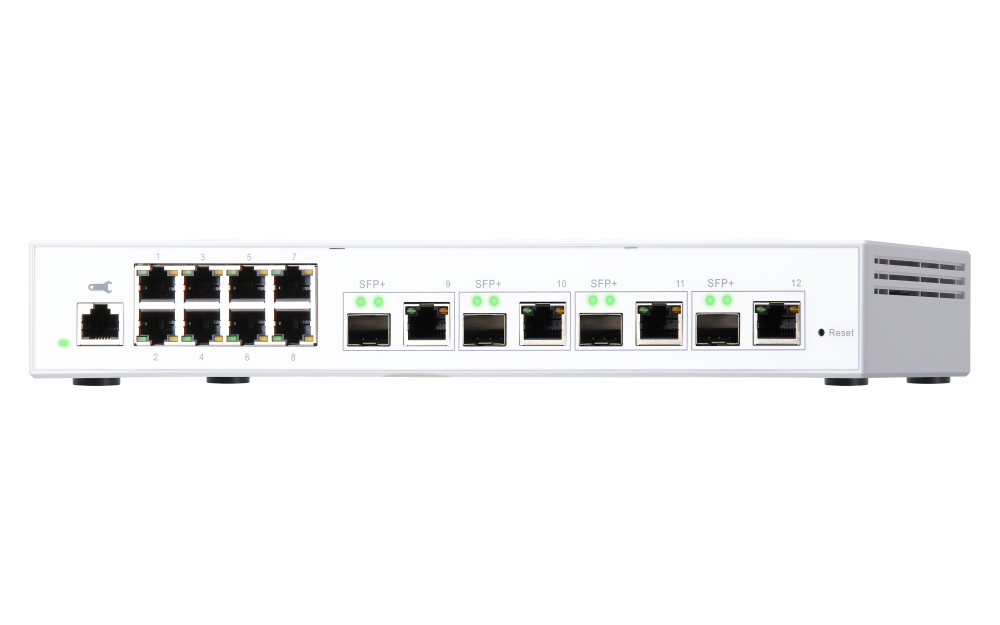

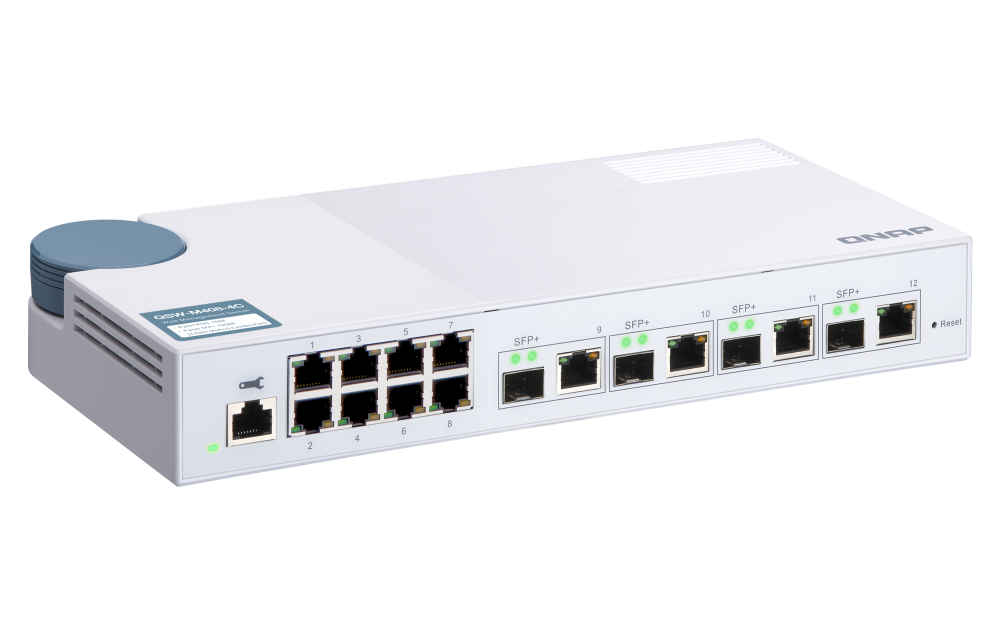

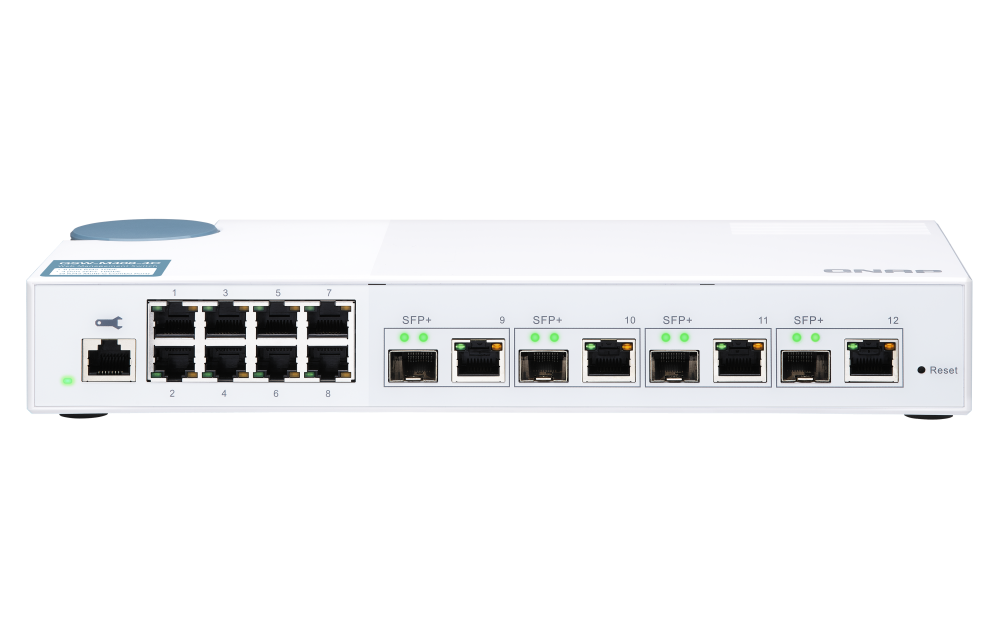

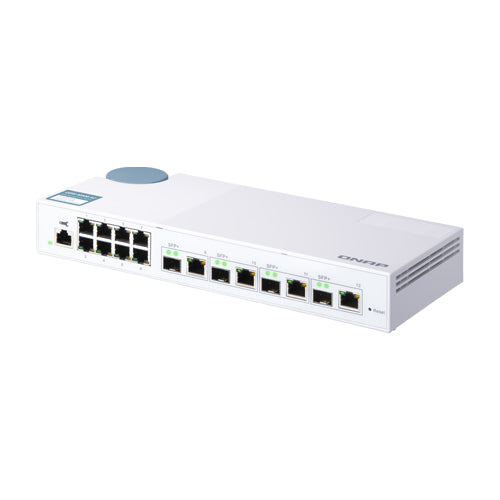

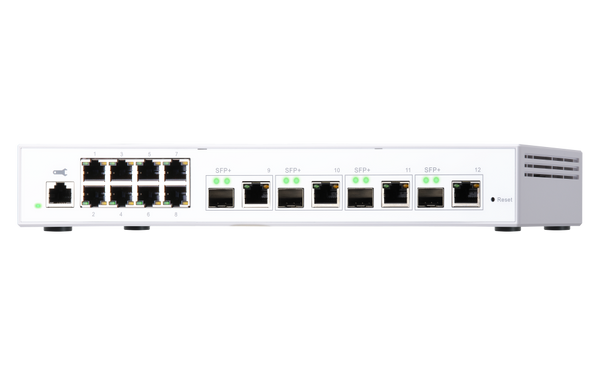

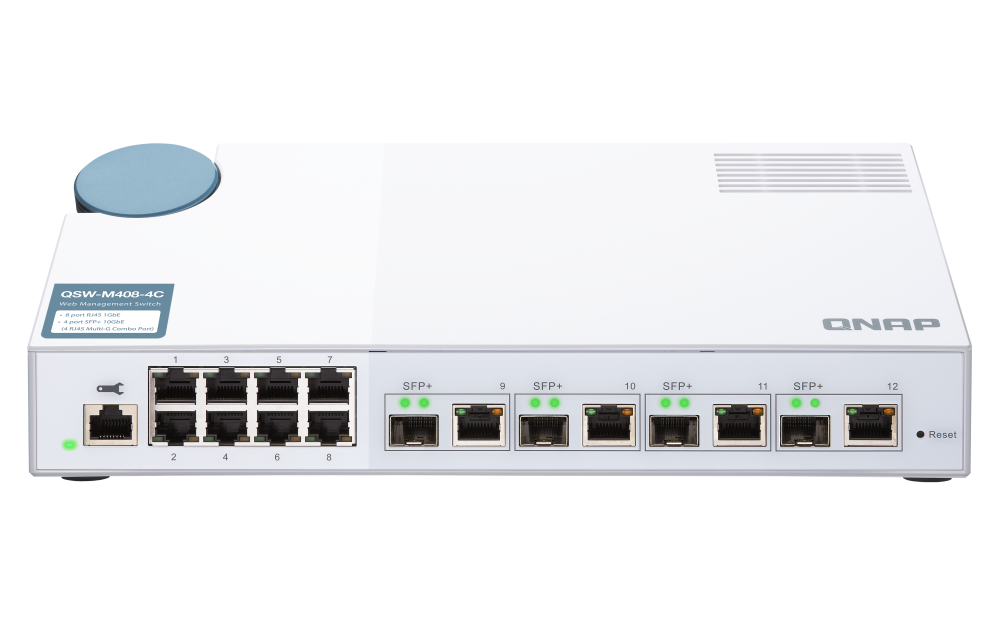

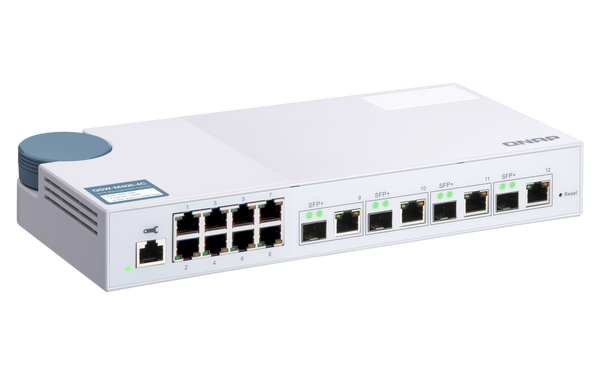

QNAP QSW-M408-4C 12-Port Gigabit Managed Switch with 10G SFP+ / RJ45 Combo Ports

Key Features

8 x Gigabit Ethernet Ports
4 x 10G SFP+ / RJ45 Combo Ports
96 Gb/s Switching Capacity
Desktop Design
Web-Based Management Software

NBASE-T Ethernet

The QSW-M408-4C is equipped with four 10GbE SFP+/ RJ45 combo ports and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-4C offers higher transmission speeds when used with existing cables.
User-friendly management interface

Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
Layer 2 network

The QSW-M408-4C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.
RSTP protocol

The QSW-M408-4C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.
Flow Control

Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-4C avoids packet loss from unparalleled bandwidth.
Online OS updatel

QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.

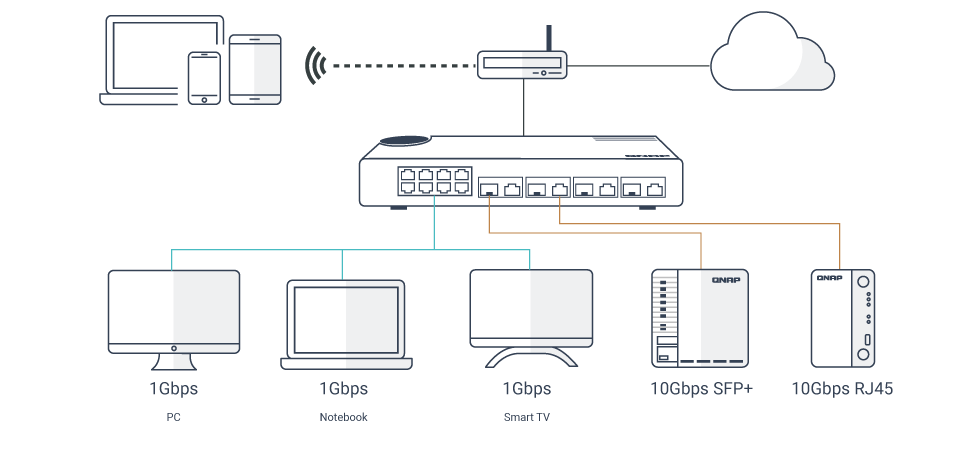

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports

The QSW-M408-4C provides four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-4C is 96Gbps, guaranteeing the full potential of each port.

Optimize Network Performance with bandwidth and packet control

The QSW-M408-4C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) for boosting network performance through IP grouping and bandwidth management.

LACP	VLAN	QoS	IGMP Snooping
- Bandwidth allocation - Bandwidth expansion	- Communication Efficiency - Flexible Segmentation	- Traffic control - Prioritizing bandwidth	- Status snooping - Traffic reduction

Powerful security and system functions

The QSW-M408-4C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL	LLDP	RSTP	Flow Control
- Access controls - Security system	- Device disclosure - Troubleshooting	- Loop prevention - Backup path	- Balance speed - Jam prevention

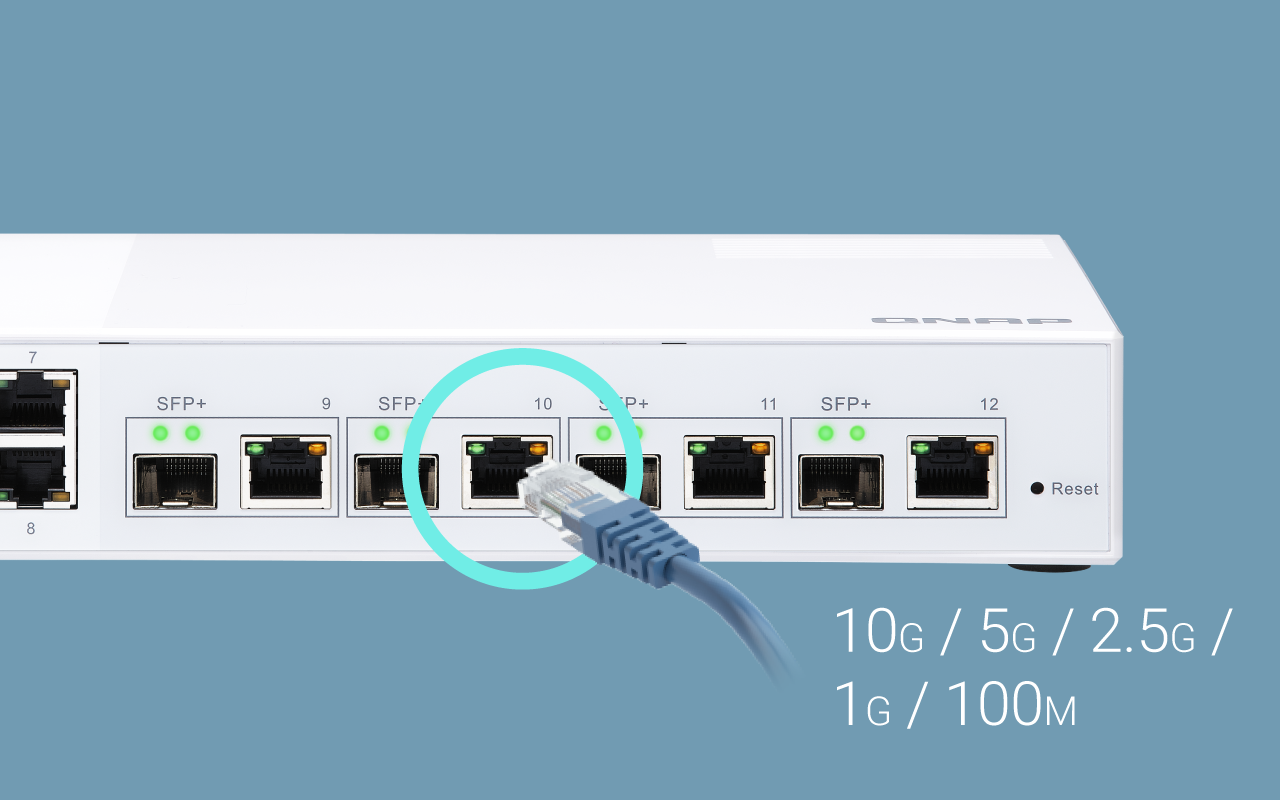

Faster speeds using existing cables with 10GBASE-T & NBASE-T

The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

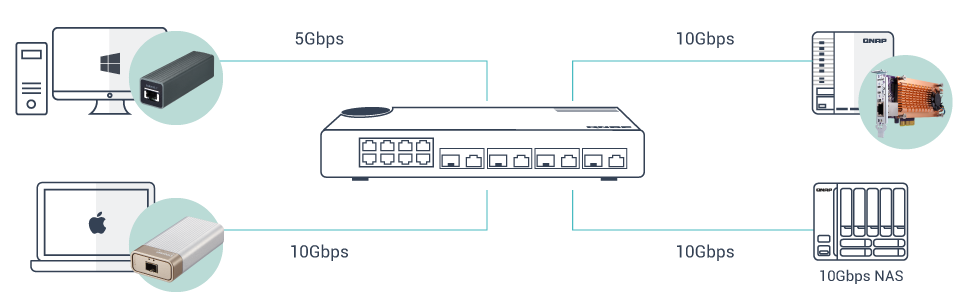

Improve team productivity with a 5GbE/ 10GbE High-Speed Network

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE/5GbE/2.5GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M408-4C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

Learn More: QNAP 10GbE NAS Solution, QNAP 10GbE Network Expansion Card, QNAP USB 3.2 Gen 1 to 5GbE Network Adapter, QNAP Thunderbolt 3 to 10GbE Network Adapter

QSW-M408-4C Hardware Specs

Management Type	Web Managed
Number of Ports	12
10GbE SFP+/RJ45 Combo Ports	4 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
1GbE (RJ45)	8
Power Supply Description	Adapter
Max. Power Consumption	31.46 W
Input Power Type	AC
Input Voltage Range	100-240VAC, 50/60 Hz
MAC Address Table	16K
Total Non-Blocking Throughput	48Gbps
Switching Capacity	96Gbps
Management Interface	Web
Console	RJ45
Fan	PWM double ball bearing fan x 1
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Form Factor	Desktop
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Status
Buttons	Reset button
Dimensions (HxWxD)	42.5 × 290 × 127 mm
Weight (Net)	1.15 kg
Weight (Gross)	1.57 kg
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	5~95% Non-condensing
Certifications	CE, FCC, VCCI, BSMI, CCC
Electromagnetic Compliance	CLASS A
Jumbo Frames	9K
