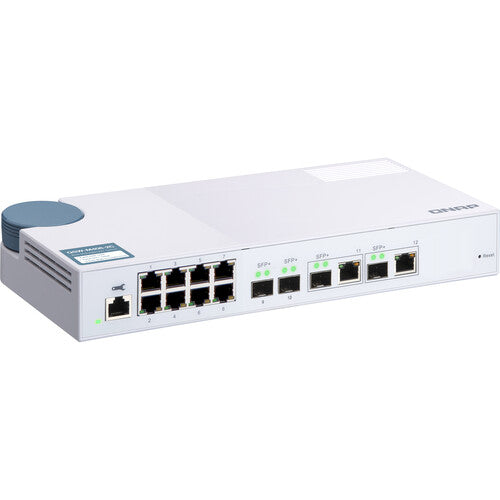

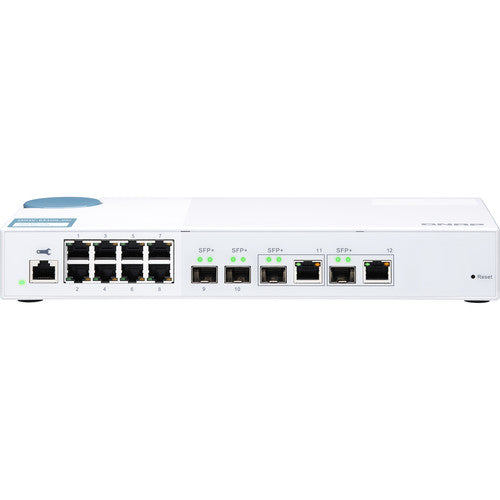

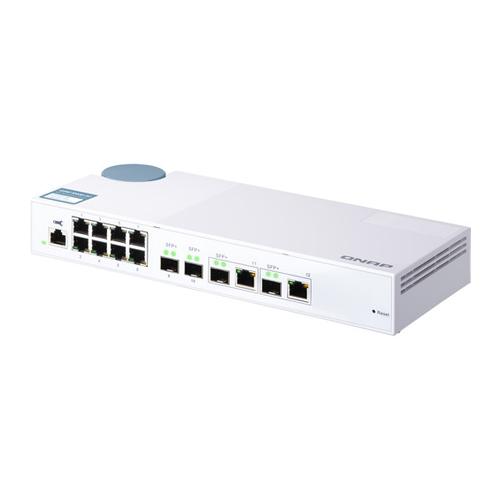

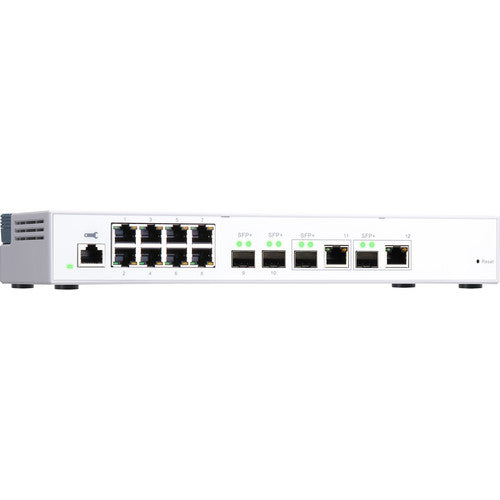

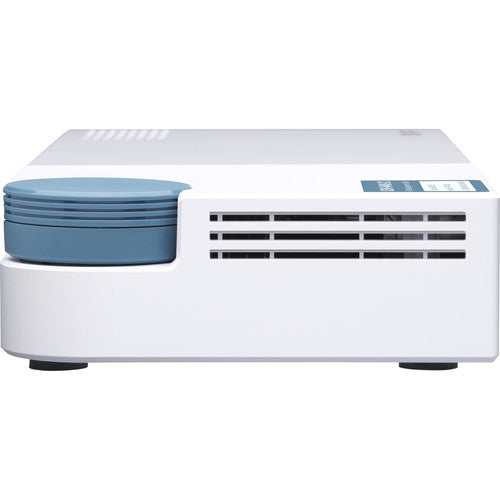

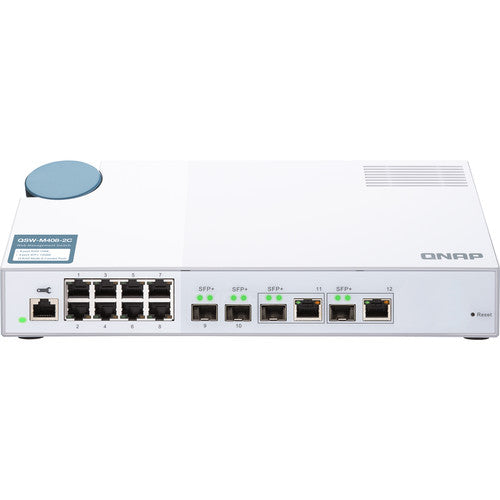

QNAP QSW-M408-2C 12-Port Gigabit Managed Switch with 10G SFP+ & Combo Ports - QSW-M408-2C

Key Features

8 x Gigabit Ethernet Ports
2 x 10G SFP+ | 2 x 10G Combo Ports
96 Gb/s Switching Capacity
Desktop Design
Web-Based Management Software

QNAP QSW-M408-2C-US Overview

xpand your network capacity with the QNAP QSW-M408-2C 12-Port Gigabit Managed Switch. This entry-level Layer 2 managed switch includes eight Gigabit Ethernet ports alongside two 10G SFP+ / RJ45 (copper) combo ports and two 10G SFP+ ports for flexible deployments that use both Ethernet and fiber connections. The 10G combo ports are compatible with 10 GbE and NBASE-T technologies, providing fast and efficient data transmissions over Cat 5e, 6e, 6a, and 7 cables. The web-based management system allows you to quickly monitor and manage your switch and its connected high-speed devices. Featuring a compact desktop design with a 96 Gb/s switching capacity, the QSW-M408-2C is built to operate quietly in almost any environment.

Flexible Network Connections

The QSW-M408-2C includes eight Gigabit Ethernet ports alongside two 10G SFP+ / RJ45 (copper) combo ports and two 10G SFP+ ports, which provides flexibility when mixing between high-speed Ethernet and fiber connections. The 10G combo ports are compatible with 10 GbE and NBASE-T technologies, providing fast and efficient data transmissions over Cat 5e, 6e, 6a, and 7 cables.

QNAP Web UI

The intuitively designed QNAP Switch System (QSS) uses a web-based interface to provide an over dashboard, port management, and setting guide that helps to streamline central network management. It uses visual illustrations that match the physical ports in addition to a setting guide, status chart reference, and online firmware update support.

Layer 2 Management

Layer 2 management features, including LACP, VLAN, ACL, and LLDP allow IT administrators to efficiently control the network bandwidth and enhance security.

Rapid Spanning Tree Protocol

With the Rapid Spanning Tree Protocol (RSTP), you can quickly deploy small to medium-scale networks that support expansion, redundancy, and loop prevention.

Energy Efficient

The QSW-M408-2C is compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode. The switch also avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.

QNAP QSW-M408-2C-US Specs

Key Specs:

Inputs/Outputs	8x RJ45 Gigabit Ethernet 2x RJ45/SFP Combo 10 GbE 2x SFP+ 10 GbE
Switching Bandwidth	48 Gb/s (Non-Blocking) 96 Gb/s

Protocols

Layer Services Supported	Layer 2
Supported Protocols	IGMP Snooping IPv4 IPv6
Jumbo Frames Support	9000 Bytes
MAC Address Table Size	16K

Performance

Switching Bandwidth

48 Gb/s (Non-Blocking)
96 Gb/s

Electrical

Power Draw	22.04 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Supply Type	External

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	5 to 95%

General

Certifications	No
Cooling System	Passive
Indicator Lights	Yes
Rack Mountable	No
Dimensions	11.42 x 5 x 1.67" / 290.07 x 127 x 42.42 mm
Weight	2.54 lb / 1.15 kg

Packaging Info

Package Weight	3.745 lb
Box Dimensions (LxWxH)	12.7 x 8.6 x 2.4"
