SEDC2000BM8/480G
Internal SSD
Kingston
Features
PCIe 4.0 NVMe Gen 4x4 performance
Hardware-based power loss protection
Latency and IOPS consistency
Designed for data center environments

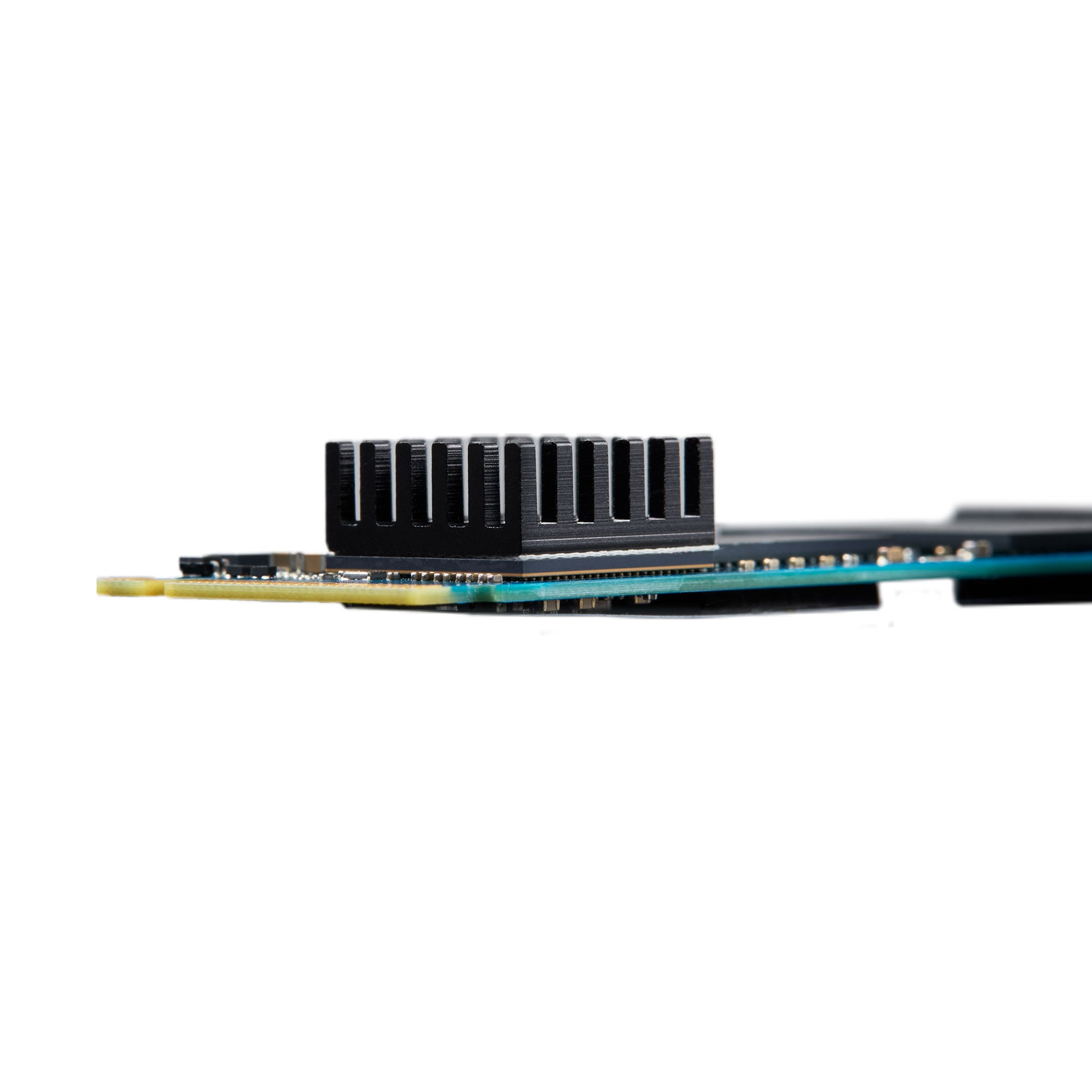

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.
| Form factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe |
| Capacities1 | 240GB, 480GB, 960GB |
| NAND | 3D TLC |
| Sequential read/write | 240GB – 4500/400 MBs 480GB – 7000/800 MBs 960GB – 7000/1300 MBs |
| Steady-state 4k read/write2 | 240GB – 260000/18000 IOPS 480GB – 530000/32000 IOPS 960GB – 540000/47000 IOPS |
| Total bytes written (TBW)3 | 240GB – 175 TBW 480GB – 350 TBW 960GB – 700 TBW |
| Latency read (avg) | 240GB-960GB: 70µs |
| Latency write (avg) | 240GB – 53µs 480GB – 29µs 960GB – 20µs |
| Power loss protection (power caps) | Yes |
| Enterprise SMART tools | Reliability tracking, usage statistics, SSD life remaining, wear levelling, temperature |
| Endurance | 240GB — (0.4 DWPD/5yrs)4 480GB — (0.4 DWPD/5yrs)4 960GB — (0.4 DWPD/5yrs)4 |
| Power consumption | 240GB: Average read: 2.97W Average write: 4.02W Max read: 3.01W Max write: 4.09W 480GB: Average read: 3.22W Average write: 5.60W Max read: 3.29W Max write: 5.77W 960GB: Average read: 3.26W Average write: 7.36W Max read: 3.36W Max write: 7.80W |
| Storage temperature | -40°C ~ 85℃ |
| Operating temperature | 0℃ ~ 70℃ |
| Dimensions | 80mm x 22mm x 8.3mm |
| Weight | 240GB – 9g 480GB – 10g 960GB – 11g |
| Vibration non-operating | 20G peak (10-2,000Hz) |
| MTBF | 2 million hours |
| Warranty/support5 | Limited five-year warranty with free technical support |
