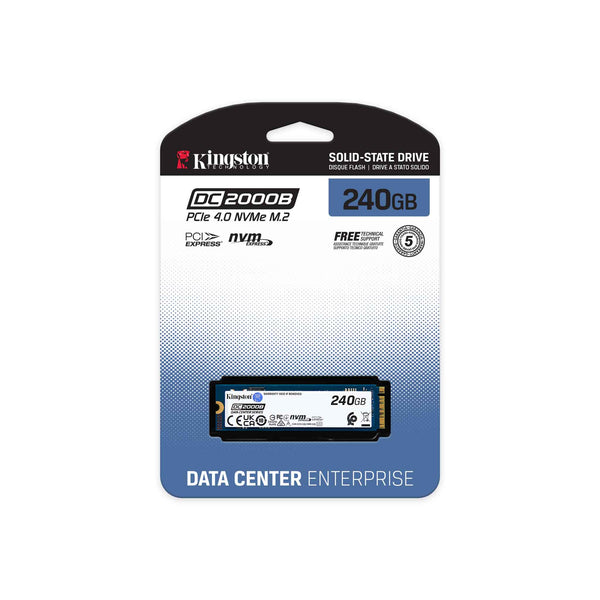

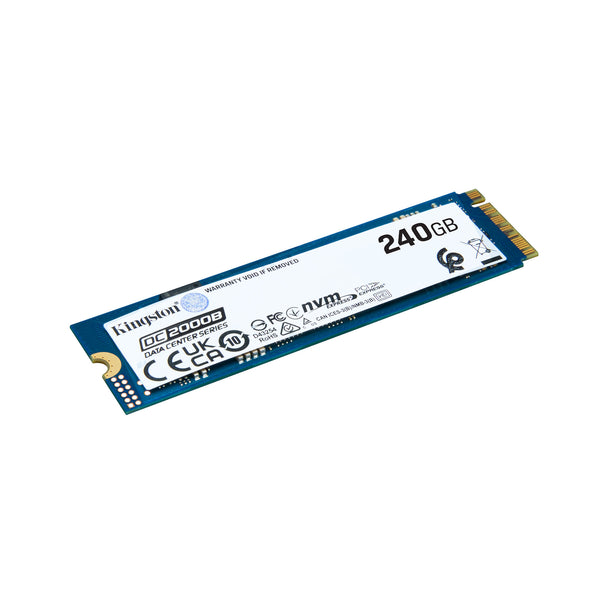

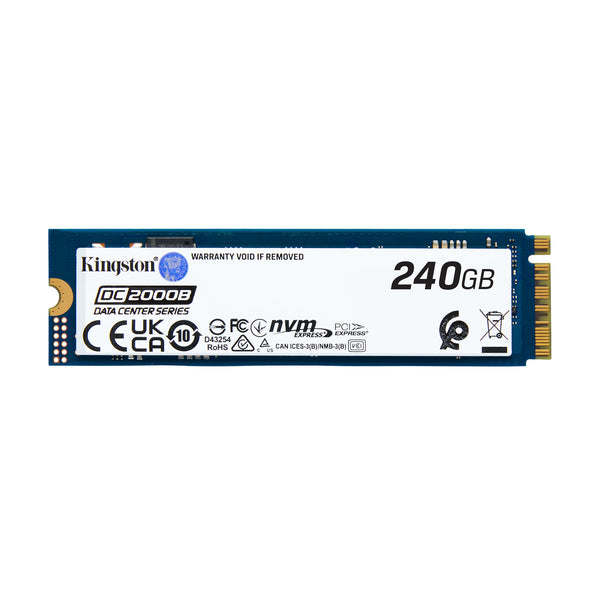

Name: Kingston 240GB - DC2000B PCIe 4.0 NVMe M.2 SSD - SEDC2000BM8/240G
Brand: Kingston
Availability: OutOfStock

Available for pre-order. Click on 'Request for Quote' to place your order. Please allow 2-3 weeks for delivery.

Real time 10 visitor right now

Sku: SEDC2000BM8/240G

Product type: Internal SSD

Vendor: Kingston

Kingston 240GB - DC2000B PCIe 4.0 NVMe M.2 SSD - SEDC2000BM8/240G

Features

PCIe 4.0 NVMe Gen 4x4 performance

Hardware-based power loss protection

Latency and IOPS consistency

Designed for data center environments

Data Center Class SSD for Enterprise applications

PCIe 4.0 NVMe M.2 SSD

4500 MB/s Read, 400 MB/s Write

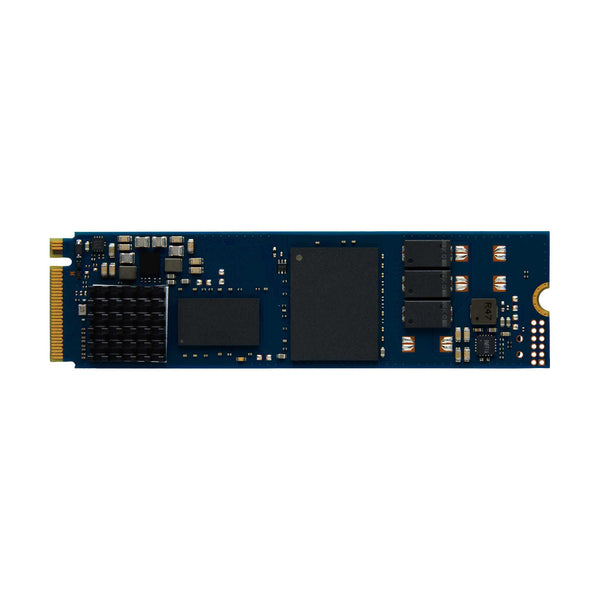

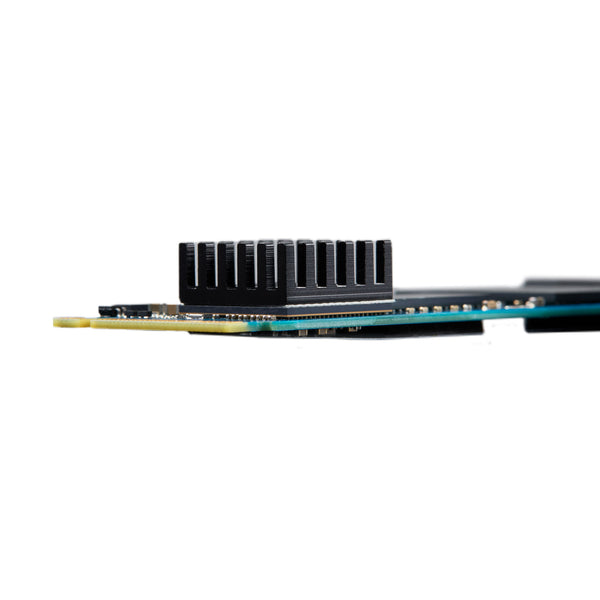

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.

Specifications

Form factor	M.2 2280
Interface	PCIe 4.0 x4 NVMe
Capacities¹	240GB, 480GB, 960GB
NAND	3D TLC
Sequential read/write	240GB – 4500/400 MBs 480GB – 7000/800 MBs 960GB – 7000/1300 MBs
Steady-state 4k read/write²	240GB – 260000/18000 IOPS 480GB – 530000/32000 IOPS 960GB – 540000/47000 IOPS
Total bytes written (TBW)³	240GB – 175 TBW 480GB – 350 TBW 960GB – 700 TBW
Latency read (avg)	240GB-960GB: 70µs
Latency write (avg)	240GB – 53µs 480GB – 29µs 960GB – 20µs
Power loss protection (power caps)	Yes
Enterprise SMART tools	Reliability tracking, usage statistics, SSD life remaining, wear levelling, temperature
Endurance	240GB — (0.4 DWPD/5yrs)⁴ 480GB — (0.4 DWPD/5yrs)⁴ 960GB — (0.4 DWPD/5yrs)⁴
Power consumption	240GB: Average read: 2.97W Average write: 4.02W Max read: 3.01W Max write: 4.09W 480GB: Average read: 3.22W Average write: 5.60W Max read: 3.29W Max write: 5.77W 960GB: Average read: 3.26W Average write: 7.36W Max read: 3.36W Max write: 7.80W
Storage temperature	-40°C ~ 85℃
Operating temperature	0℃ ~ 70℃
Dimensions	80mm x 22mm x 8.3mm
Weight	240GB – 9g 480GB – 10g 960GB – 11g
Vibration non-operating	20G peak (10-2,000Hz)
MTBF	2 million hours
Warranty/support⁵	Limited five-year warranty with free technical support
