What's New

• Supports Intel® Xeon® E processors up to 8 cores 95W.
• 3200 MT/s HPE DDR4 Standard Memory UDIMM offering: 8 GB, 16 GB, 32 GB, maximum 128 GB memory capacity.
• Four expansion slots for more flexible usage, including one PCIe Gen4 x16.
• Onboard M.2 NVMe/SATA SSD support.
• Dedicated HPE iLO port and serial port kit option.
• Choose validated HPE SMB solutions and offers streamlined for regional delivery as “Smart Buy Express Offers” in the US and Canada, “Top Value Offers” in EMEA, and “Intelligent Buy Offers” in APJ.

Specifications

Processor core available: 4 core

Processor cache: 8 MB Intel® Smart Cache

Processor name: Intel® Xeon® E-2314 (4-core, 2.8 GHz, 8 MB, 65W)

Processor number: 1 Processor

Processor speed: 2.8 GHz

Memory type: HPE DDR4 Standard Memory

Memory, standard: 16 GB (1x 16 GB) UDIMM

Included hard drives: None ship standard, 4 LFF non-hot-plug drives supported

Optical drive type: Optional

Infrastructure management: Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download)

Power supply type: 1 HPE 350W ATX Gold non-hot-plug power supply

Expansion slots: 4, for detailed descriptions refer to the QuickSpecs

Network controller: HPE embedded 1Gb 2-port BCM5720 Network Adapter

Storage controller: Intel® VROC SATA (formerly known as Intel® RSTe)

System fan features: 1 non-hot plug non-redundant system fan

Form factor: 4U Tower

Warranty: Server warranty includes 3-years parts, 1-years labor, and 1-years on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support.

Weight: 22.1 lb minimum; 38.7 lb maximum

Weight: 10.1 kg minimum; 17.6 kg maximum

Dimensions14.5 x 6.89 x 18.7 in

Dimensions: 36.83 x 17.5 x 47.5 cm

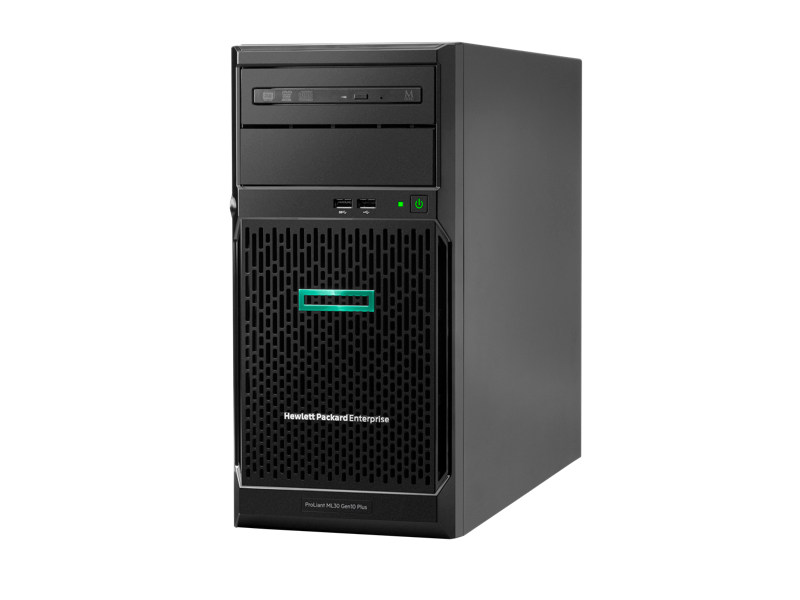

Detailed product description: HPE ProLiant ML30 Gen10 Plus tower server with one Intel® Xeon® E-2314 processor, 16 GB memory, 4 large form factor non-hot-plug chassis, and one 350W non-hot-plug power supply
