Name: EATON 9SX UPS - 9SX1000I
Brand: Eaton
Price: 2109 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 38 visitor right now

Sku: 9SX1000I

Product type: Eaton UPS

Vendor: Eaton

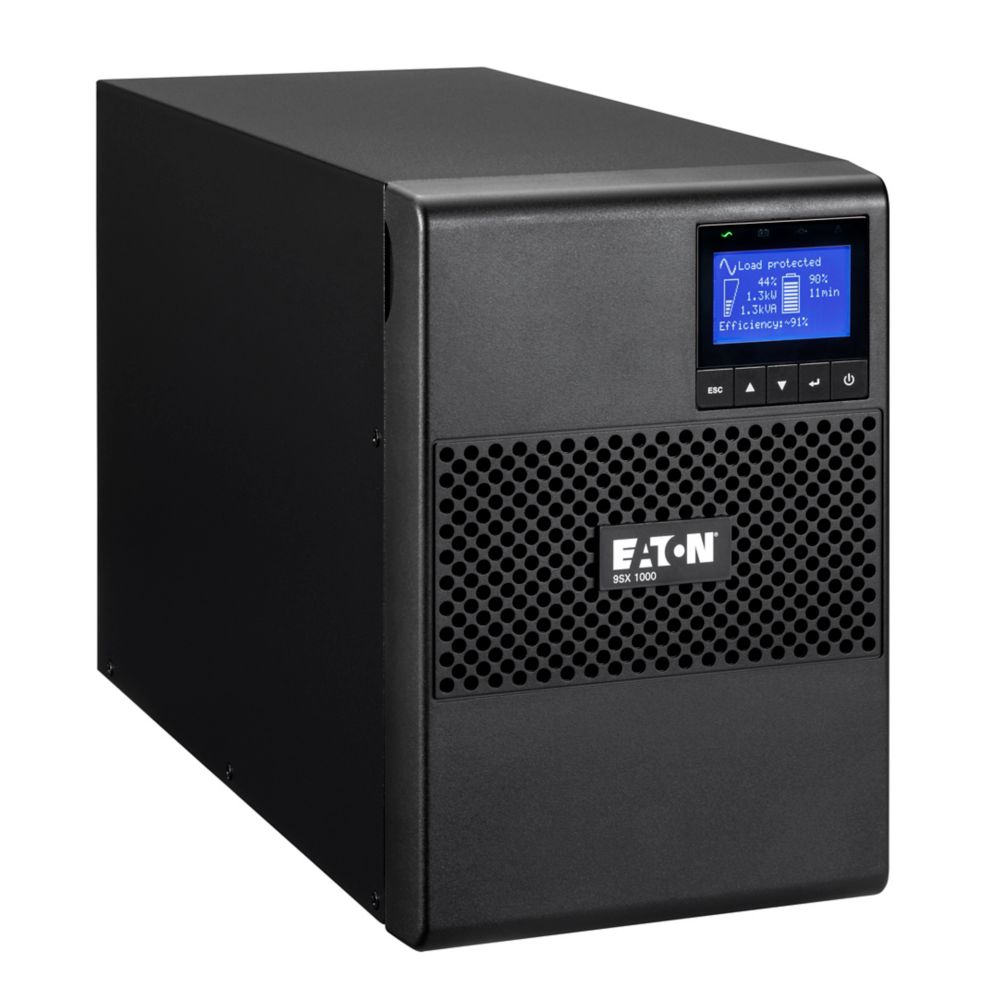

EATON 9SX UPS - 9SX1000I

Eaton 9SX UPS, 1000 VA, 900 W, Input: C14, Outputs: (6) C13, Tower

GENERAL SPECIFICATIONS

PRODUCT NAME

Eaton 9SX UPS

CATALOG NUMBER

9SX1000I

UPC

743172090928

PRODUCT LENGTH/DEPTH

387 mm

PRODUCT HEIGHT

252 mm

PRODUCT WIDTH

160 mm

PRODUCT WEIGHT

14.8 kg

WARRANTY

2 year

COMPLIANCES

CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B

CERTIFICATIONS

IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC

BATTERY

BATTERY TYPE

Sealed, lead-acid

RUNTIME GRAPH

BATTERY REPLACEMENT

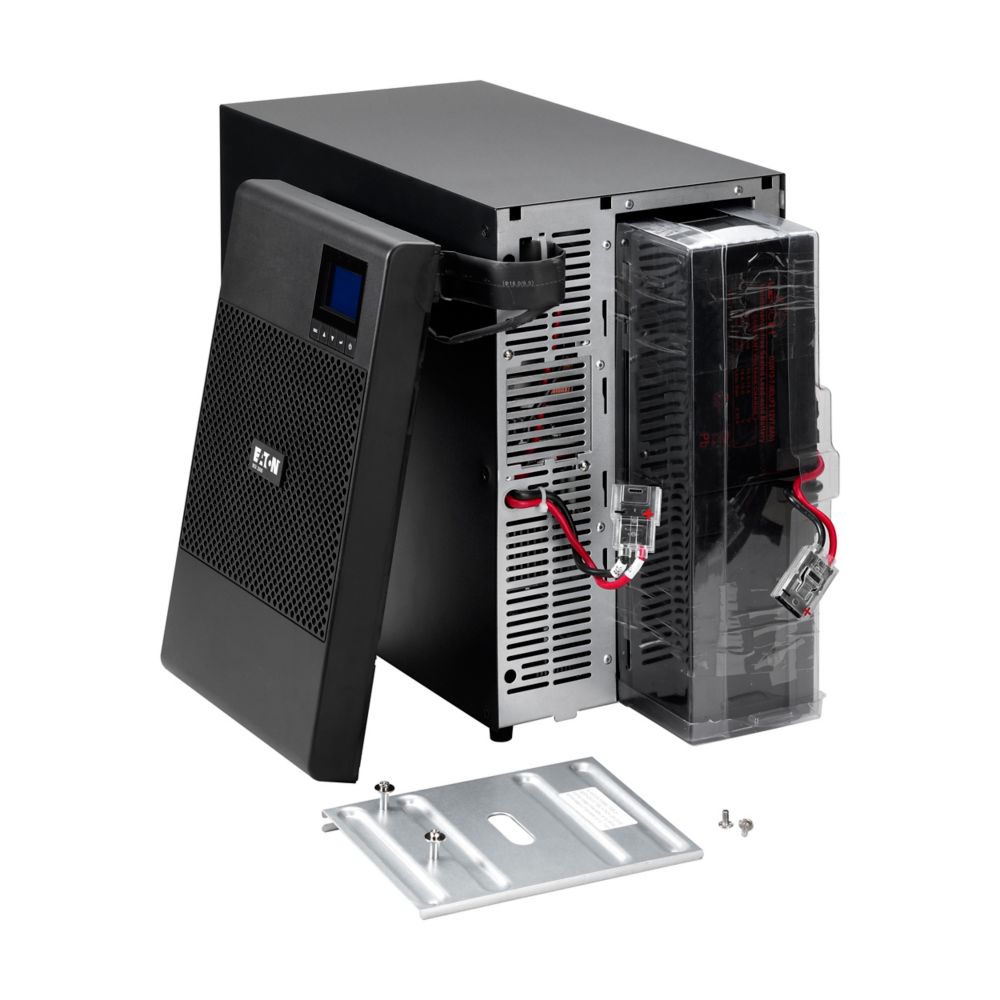

Hot-swappable internal batteries and extended battery modules (EBMs)

BATTERY QUANTITY

BATTERY MANAGEMENT

ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units

BATTERY RATING

12 V / 9 Ah

EXTENDED BATTERY CAPABILITY

Yes

ELECTRICAL OUTPUT

RECEPTACLE

(6) C13

VOLTAGE

230V

WATTAGE

900 W

OUTPUT POWER FACTOR

0.9

OUTPUT VOLTAGE RANGE

200/208/220/230/240 V +/- 2%

OUTPUT WAVEFORM

Sine wave

OUTPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX

FEED TYPE

TOPOLOGY

Online/Double-conversion

VA RATING

1000 VA

ELECTRICAL INPUT

INPUT CONNECTION

C14

INPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240/250V)

NOMINAL FREQUENCY

50/60 Hz

INPUT POWER FACTOR

>.99

INPUT VOLTAGE RANGE

190-276 Vac without derating (up to 120-276 Vac with derating)

INPUT FREQUENCY RANGE

40-70 Hz

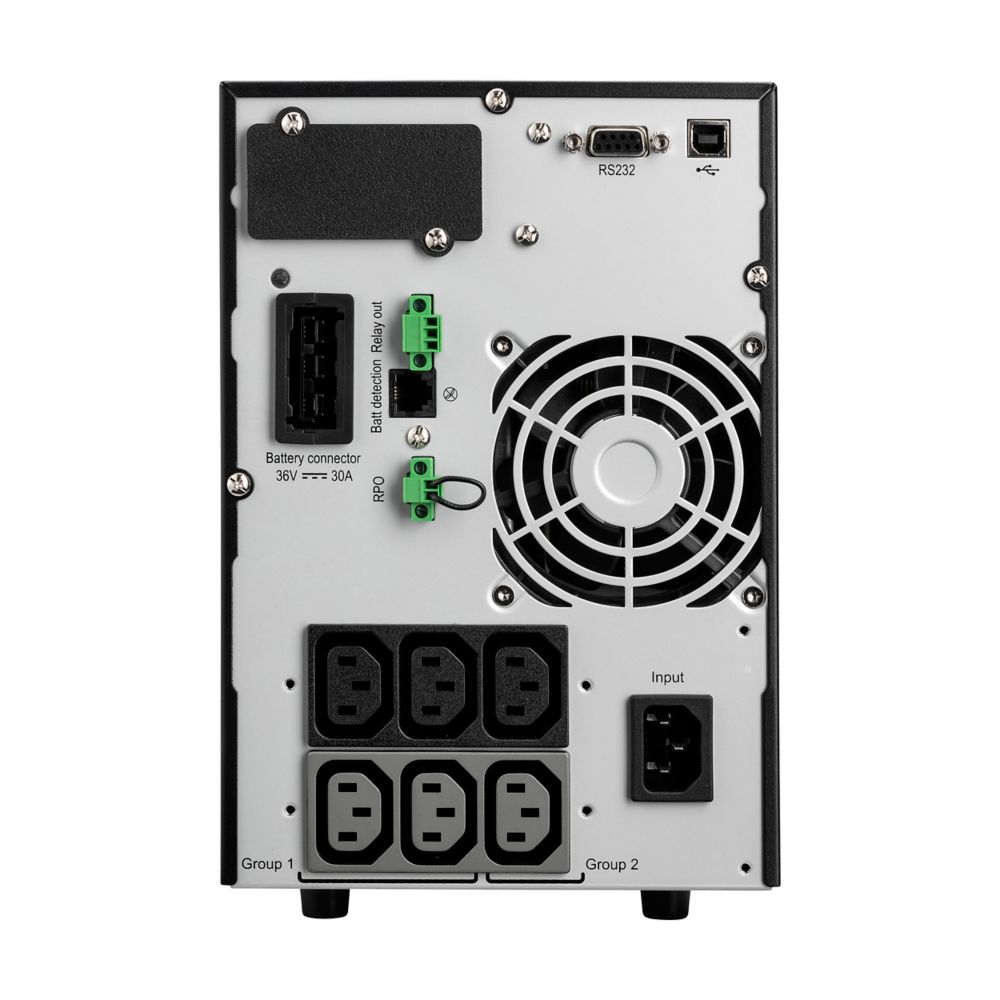

COMMUNICATIONS

INCLUDES NETWORK CARD

COMMUNICATION

USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (2 outputs, 1 input, optocoupler, DB9)

ETHERNET INTERFACE

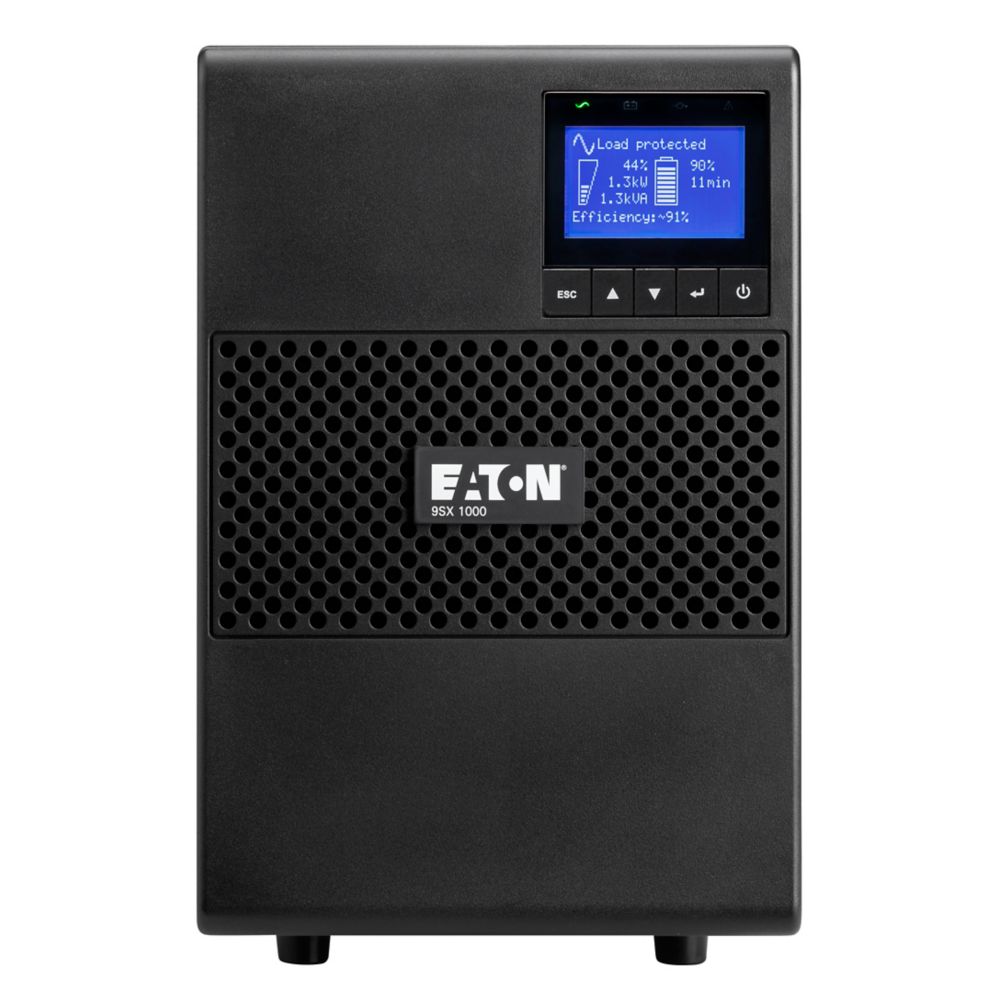

USER INTERFACE

Multilingual graphical LCD display

POTENTIAL FREE SWITCH CONTACT

Yes

EXPANSION SLOTS

One slot for optional communication card

SOFTWARE COMPATIBILITY

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

TYPE OF INTERFACE

Other

ENVIRONMENTAL

ALTITUDE

3000 m

NOISE LEVEL

<41 dB at 1 meter

TEMPERATURE RANGE

0° to 40°C (32° to 104°F)

RELATIVE HUMIDITY

0-96% non-condensing

ADDITIONAL SPECIFICATIONS

CONSTRUCTION TYPE

Free standing model

PACKAGE CONTENTS

UPS
(2) IEC-IEC output cables
USB cable
Serial cable
Safety instructions
Quickstart guide

PHASE (OUTPUT)

INTERNAL BYPASS

Yes

AUTO SHUTDOWN FUNCTION

Yes

COLOR

Black

EFFICIENCY

RACK MOUNTING KIT

PHASE (INPUT)

HOT SWAP POWER
