Name: EATON 5E GEN2 UPS Tower - 5E2200UI
Brand: Eaton
Price: 998 AED
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 37 visitor right now

Sku: 5E2200UI

Product type: Power Supply UPS

Vendor: Eaton

EATON 5E GEN2 UPS Tower - 5E2200UI

GENERAL SPECIFICATIONS

PRODUCT NAME

Eaton 5E Gen2 UPS

CATALOG NUMBER

5E2200UI

EAN

3553340704376

PRODUCT LENGTH/DEPTH

330 mm

PRODUCT HEIGHT

180 mm

PRODUCT WIDTH

133 mm

PRODUCT WEIGHT

9.82 kg

WARRANTY

2 year

COMPLIANCES

CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive

CERTIFICATIONS

IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3

PRODUCT SPECIFICATIONS

SECONDARY FREQUENCY - MAX

60 Hz

WATTAGE

1200 W

FORM FACTOR

Tower

INCLUDES NETWORK CARD

INPUT CONNECTION

C14

INPUT VOLTAGE - MIN

140 V

OUTPUT VOLTAGE - MAX

257 V

SECONDARY FREQUENCY - MIN

50 Hz

SOFTWARE COMPATIBILITY

Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)

BATTERY TYPE

Sealed, lead-acid

EFFICIENCY

SPECIAL FEATURES

Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)

CONSTRUCTION TYPE

Free standing model

OUTPUT VOLTAGE - MIN

195 V

COLOR

Black

EXTENDED BATTERY CAPABILITY

OUTPUT VOLTAGE RANGE

195-257 V

TOPOLOGY

Line-interactive

SURGE PROTECTION

Yes

INPUT NOMINAL VOLTAGE

230V default (220/230/240V)

INPUT FREQUENCY RANGE

45-63 Hz

INTERNAL BYPASS

INPUT VOLTAGE - MAX

300 V

VOLTAGE TYPE

PHASE (OUTPUT)

BATTERY MANAGEMENT

Automatic battery test, deep-discharge protection, cold-start capable

AUTO SHUTDOWN FUNCTION

Yes

NUMBER OF OUTPUTS C13

OPERATING TEMPERATURE - MIN

0 °C

VA RATING

2200 VA

POTENTIAL FREE SWITCH CONTACT

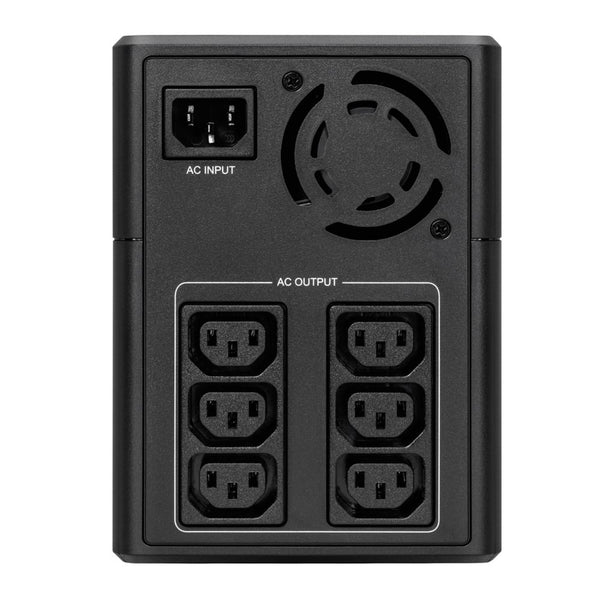

RECEPTACLE

(6) C13

PHASE (INPUT)

PACKAGE CONTENTS

(2) IEC-IEC output cables
Quick start
Safety instructions

FEED TYPE

RUNTIME GRAPH

View runtime graph

USER INTERFACE

LEDs

BATTERY QUANTITY

OPERATING TEMPERATURE - MAX

40 °C

VOLTAGE

230V

HOT SWAP POWER

TEMPERATURE RANGE

0° to 40°C (32° to 104°F)

ETHERNET INTERFACE

COMMUNICATION

USB port (HID compliant)

RELATIVE HUMIDITY

0-90% non-condensing

OUTPUT APPARENT POWER

2200 VA

RACK MOUNTING KIT

OUTPUT FREQUENCY

50/60 Hz

TYPE OF INTERFACE

USB

PRIMARY FREQUENCY - MIN

45 Hz

BATTERY RATING

12 V / 9 Ah

TYPE

UPS

OUTPUT NOMINAL VOLTAGE

230V

EXPANSION SLOTS

INPUT VOLTAGE RANGE

140-300 V

NOMINAL FREQUENCY

50/60 Hz

PRIMARY FREQUENCY - MAX

63 Hz
