Name: HP USB-C Dock G5-5TW10AA
Brand: HP
Availability: InStock

Available for purchase! Occasional oversell due to in-store sales or high online demand; We will provide estimated lead time in such cases. Contact us for best wholesale price.

Real time 38 visitor right now

Sku: 5TW10AA

Product type: HP Docking Stations

Vendor: HP

Overview

This dock is compatible with a wide range of devices and supports up to 100W power delivery. It can drive up to three displays and includes an integrated cable for easy setup. Its compact size makes it ideal for space-constrained environments

Key specifications

Power delivery: Up to 100 W to host (USB‑C PD); front USB‑C provides 15 W power out for accessories.

Video outputs: 2 × DisplayPort 1.4, 1 × HDMI 2.0; supports multi‑display configurations (up to three 4K displays depending on host capabilities).

USB ports: Multiple USB‑A 3.0 charging ports (front and rear) plus the integrated USB‑C host cable.

Network & security: RJ‑45 Ethernet and a Kensington‑style lock slot.

Form factor: Small footprint, integrated USB‑C cable for tidy desks.

OS support & warranty: Works with Windows, macOS, Chrome OS; typically ships with a 1‑year limited warranty (confirm local terms).
All port and power details are documented in vendor/spec listings for the 5TW10AA SKU.

Ports, video support, and behavior notes

The dock’s DisplayPort 1.4 and HDMI 2.0 outputs enable high‑resolution multi‑monitor setups; actual display count and resolutions depend on the laptop’s USB‑C alt‑mode and GPU capabilities. Thunderbolt notebooks will operate at USB‑C speeds when connected to this dock. The unit also supports remote manageability and firmware updates pushed to connected laptops, which is useful for IT fleets and security maintenance.

Specifications

Attribute

Specification

Product Subgroup

Docking

Color

Black

Dimensions (W x D x H)

12.2 x 12.2 x 4.5 cm

Weight

0.75 kg

System Compatibility

HP Laptops, MacBook® computers, and other laptops.

OS Compatibility

Windows 10, Windows 11, macOS, Chrome OS™

Min. System Requirements

USB Type-C®️ (USB Power Delivery, Alt Mode DisplayPort™)

---

Power to System (Host)

Up to 100W via USB-C® Power Delivery (5V to 20V at 5A MAX)

Ports (Front)

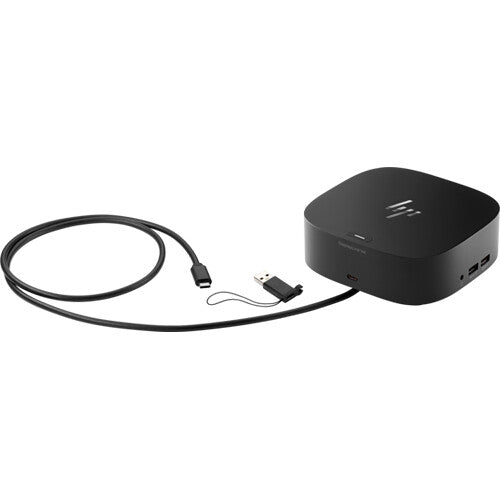

1 USB-C® port (data and 15W power out); 1 USB-C® cable to host

Ports (Side)

2 USB 3.0 charging ports; 1 combo audio jack

Ports (Back)

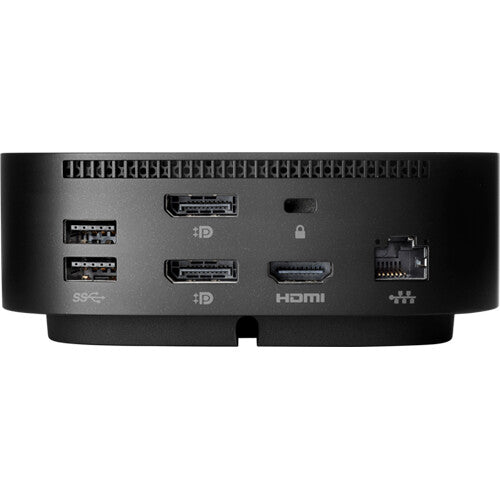

2 USB 3.0 charging ports; 2 DisplayPort™ ports; 1 RJ45 (Ethernet) port; 1 HDMI 2.0 port; 1 standard lock slot

Security

1 Lock slot (lock sold separately)

---

Manufacturer Warranty

One-year limited warranty.

Support Service

HP 3 years Advanced Exchange Bundled Support (for specific regions)
